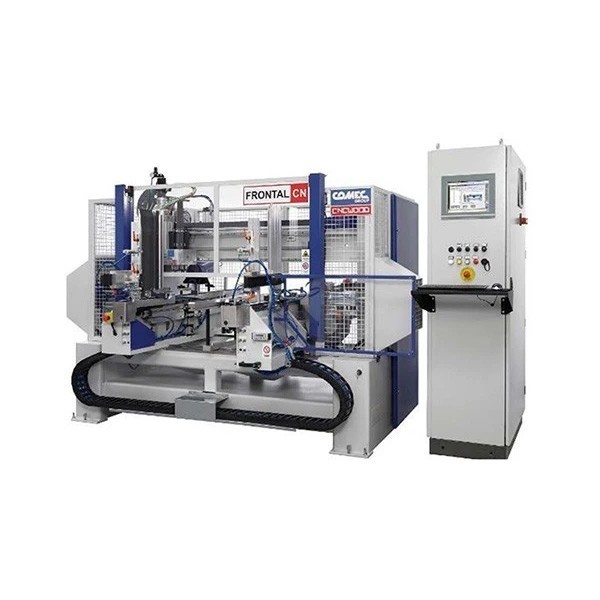

Comec Frontal CN1500 2S CA Through Feed Machining Centre For Drawer Elements

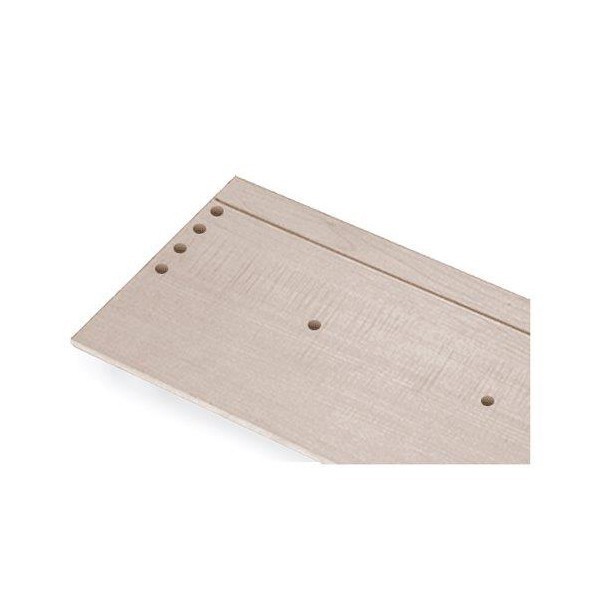

A CNC controlled, automatic hopper fed machine for the volume drilling / grooving of drawer fronts.

  • Auto feeding
  • CNC control
  • Panels and drawer fronts

About this Product

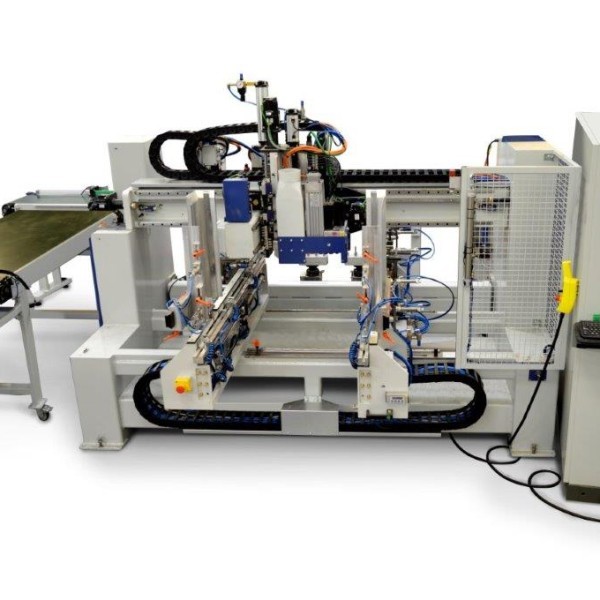

A CNC controlled, automatic hopper fed machine for the volume drilling / grooving of drawer fronts. equipped with 2 working stations and piece return system.The Frontal comprises of a step by step feed system that takes the component from the vertical automatic hopper feed loader and delivers it to each of the specified working stations thus maximising production output. The left working side is usually fixed while the right side is moveable either manually with LCD readout for the width setting or motorised and width set through the program (option). On request it can be equipped with up to 4 working stations each side with the additional option of a vertical CNC router. Each machine can be configured to suit customers individual production requirements.

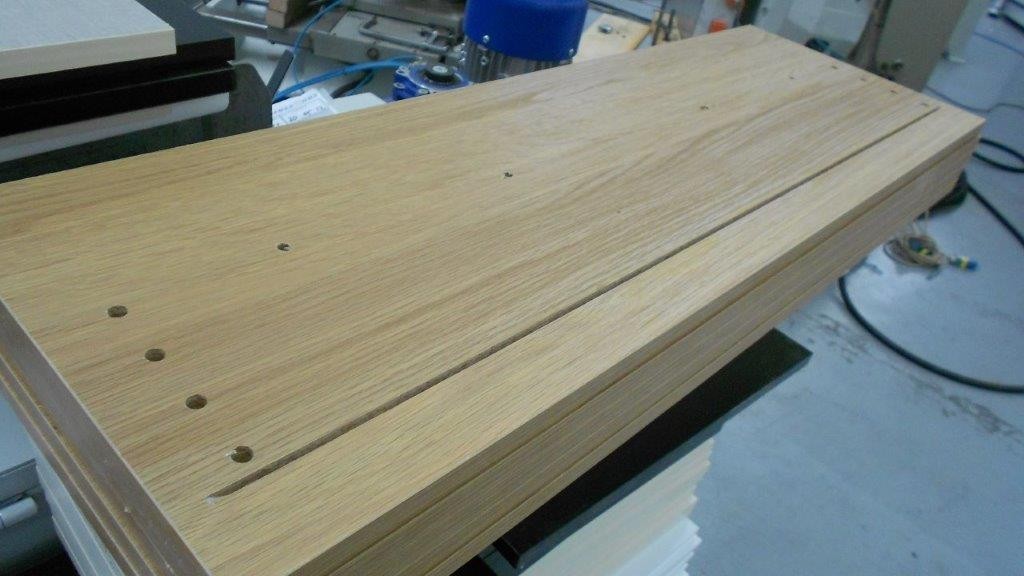

Comec Frontal Cn1500 2s Ca Through Feed Machining Centre For Drawer Elements
Comec Frontal Cn1500 2s Ca Through Feed Machining Centre For Drawer Elements
Comec Frontal Cn1500 2s Ca Through Feed Machining Centre For Drawer Elements 2
Comec Frontal Cn1500 2s Ca Through Feed Machining Centre For Drawer Elements 3

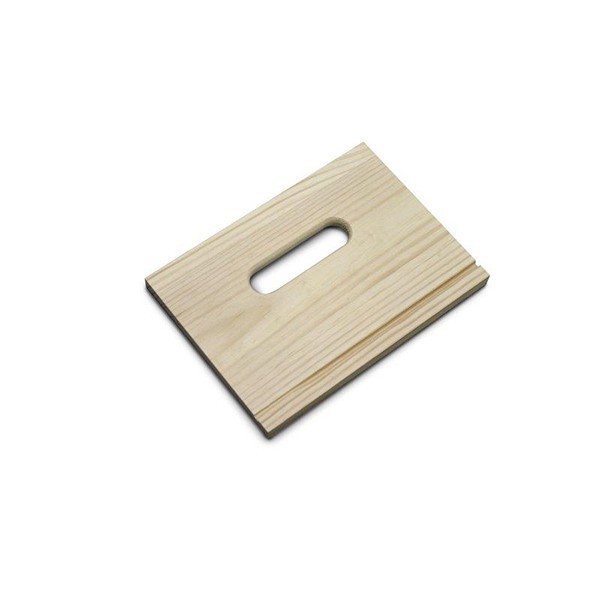

Comec Frontal Cn1500 2s Ca Through Feed Machining Centre For Drawer Elements 4

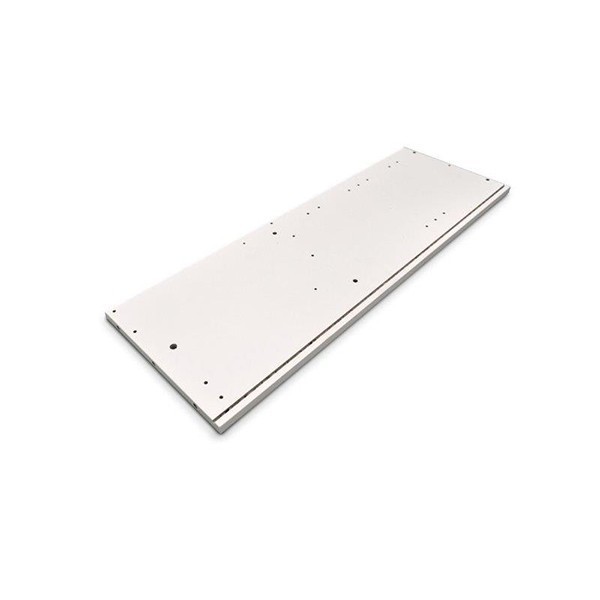

Comec Frontal Cn1500 2s Ca Through Feed Machining Centre For Drawer Elements 5

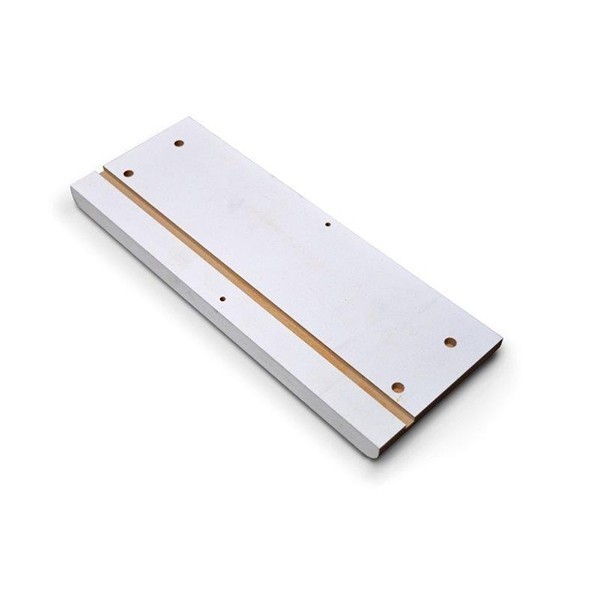

Comec Frontal Cn1500 2s Ca Through Feed Machining Centre For Drawer Elements 6
Comec Frontal Cn1500 2s Ca Through Feed Machining Centre For Drawer Elements 7
Specification

STRUCTURE

  • Frame of electro-welded steel sheet of heavy-duty construction.

LOADING SYSTEM

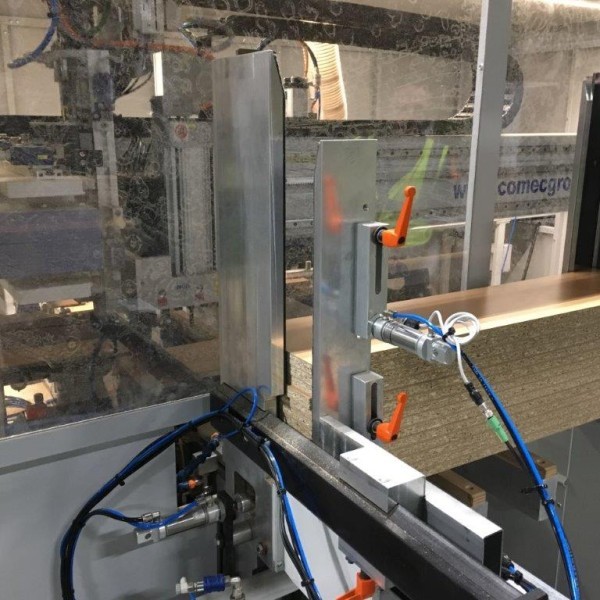

  • N°1 fix left shoulder and n°1 mobile right shoulder for the loader, clamping cylinders with
    step-by-step advancement system.
  • Right shoulder adjustable with pneumatic push button to lock/release and digital display.
  • N°1 removable central support with straightener cylinders.
  • Pieces’ advancement system step by step with 2 working stations, complete with locking
    cylinders on each station.

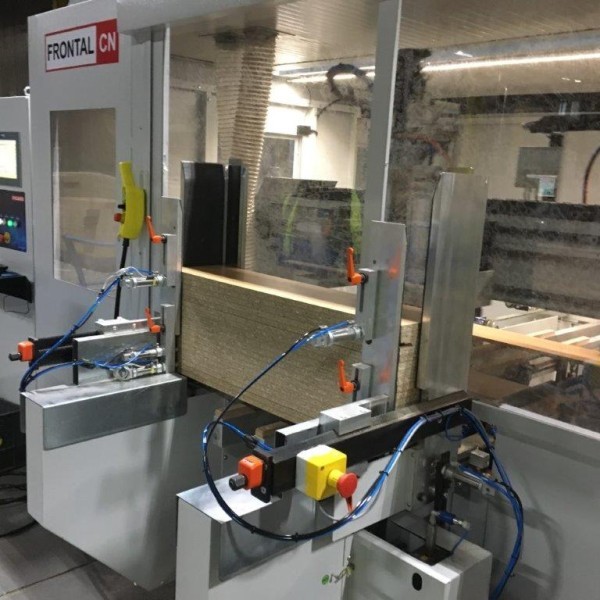

  • Frontal vertical automatic loader complete with adjustable storage unit fixed to the shoulders.

1st WORKING STATION: VERTICAL-HORIZONTAL Point to Point DRILLING

  • N°1 Point-to-point drilling head, motor kW 1.7 / 4350 rpm, with following drilling pattern:
  •  n°11 vertical spindles in cross, center distance 32mm,
  • n°3+3 horizontal double-exit spindles left-right, center distance 32mm in line, for lateral drilling,
  • n°3+3 horizontal double-exit spindles operator-machine side, center distance 32mm in line, for
    horizontal drilling.

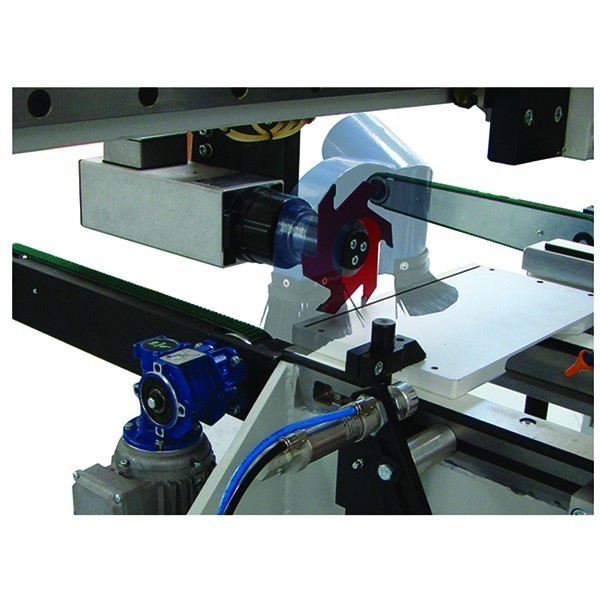

2nd WORKING STATION: LENGTHWISE GROOVING

  • N° 1 vertical group controlled by CN on X axis.
  • Adjustable on Y and Z axes with screw and siko,
    fixed on horizontal support bridge with linear ball bearings equipped with:
  • N°1 horizontal electro pneumatic grooving unit, motor kW 1.8 / 12-18.000 rpm.
  • Saw milling cutter Ø 140 mm.

CONTROL UNIT

  • Stand-alone electrical cabinet: placed separately from the machine to its side.
  • Numerical control studied on purpose like control unit of the axes and of the functionalities for multiheads drilling/milling machines.
  • Industrial PC for operator interface with 15” colour touch-screen.
  • SSD: 120 GB - Interface: ethernet/USB/RS232.

SOFTWARE

  • Parametric programming assisted by 3D working models.
  • Possibility of Net connection for programming and remote assistance.
  • Remote console to control the machine by the operator during tests and set-up.
  • Multitasking: the control unit can independently control the heads on the 3 axes in order to have
    different workings operations at the same time.

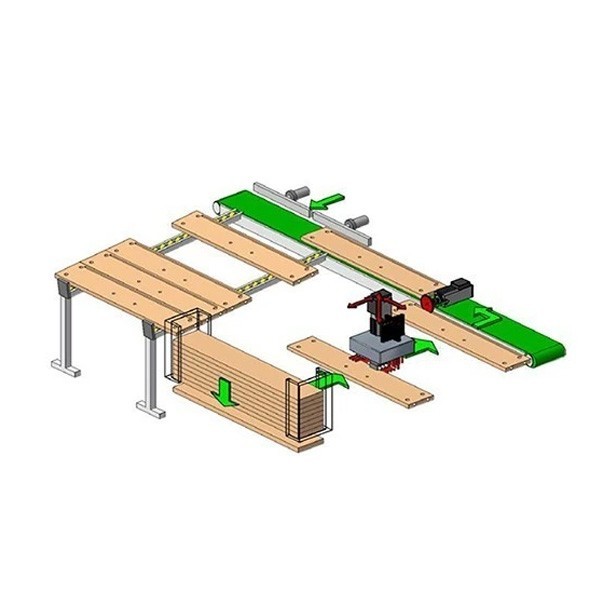

WORKED PIECES RETURN SYSTEM

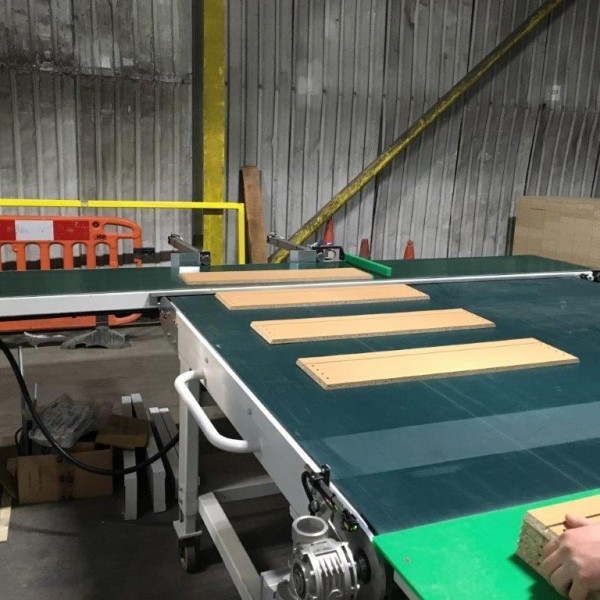

Worked pieces return system to the operator on the machine side composed of:

  • n°1+1 ejecting motorized belts on back side of machine, motor kW 0.37,
  • n°1 lenghtwise motorized belt sincronized to the machine cycle,
  • n°1+1 manually adjustable idle rollers.

Workable dimensions:

  • Length min / max 280 mm / 1500 mm. (Uptp 2500mm on request)
  • Width min / max 70 mm / 300 mm. (to be checked according customer pieces)
  • Thickness min / max 10 mm / 50 mm.
  • Protections according CE safety rules.
