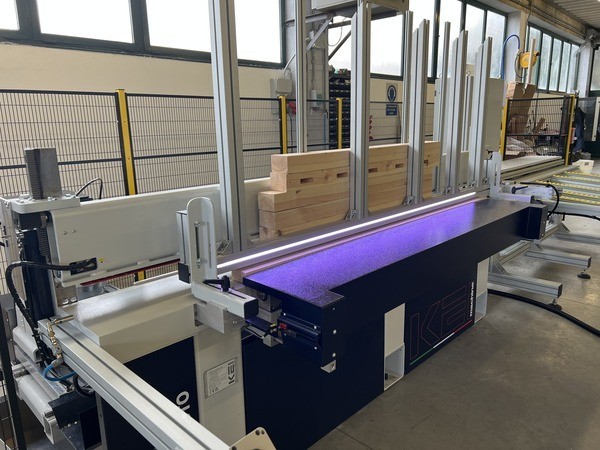

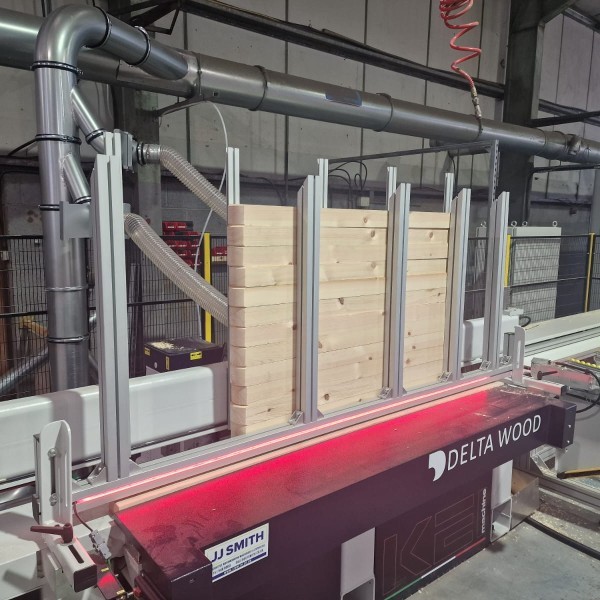

A fully automatic 3 axis CNC horizontal swing chisel mortiser equipped with 1, 2 or 3 mortise heads. The machine has a a vertical hopper feed loader for continuous production, linked to a peumatic ejection system. Programming is operator friendly thanks to dedicated clour graphic interface. Special configurations available on request.
A fully automatic 3 axis CNC horizontal swing chisel mortiser equipped with 1, 2 or 3 mortise heads. The machine has a a vertical hopper feed loader for continuous production, linked to a peumatic ejection system. Programming is operator friendly thanks to dedicated clour graphic interface. Special configurations available on request.
Standard working area 3000 x 450 x 180mm h
Max distance 1 head 3000mm (middle mortise to middle mortise)
Max distance 2 heads 2400mm (middle mortise to middle mortise
Min distance between 2 heads 360mm

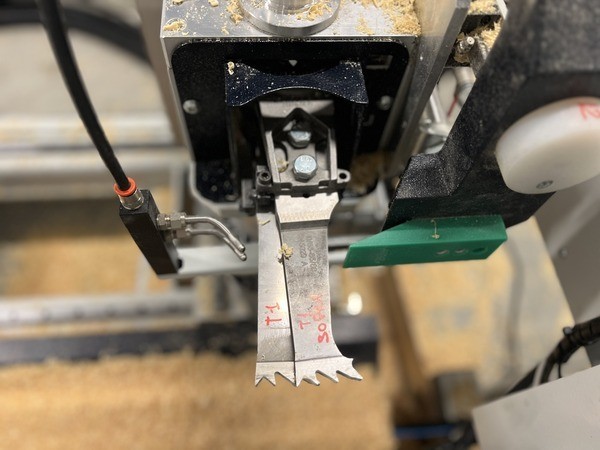

Mortise heads with 3 hp motor
Patented design to give perfect balance giving vibration free operation
Each head with 1000mm extraction point

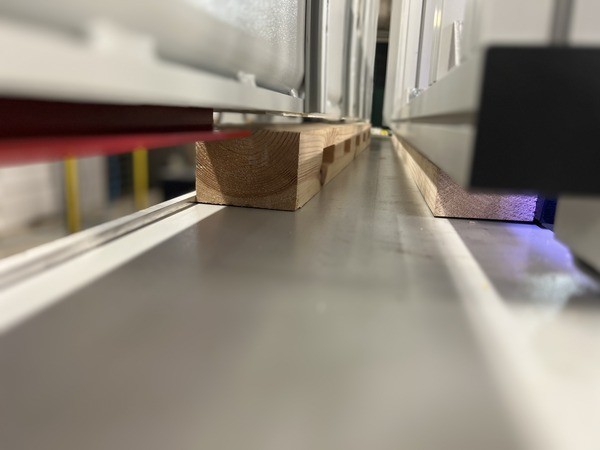

Full length vertical and horizontal pressure beam, hydraulic operation to help ensure timber does not move during the mortising operation.
Movement on x axis via heavy duty rack and pinion drive/movement on axis Y Z axis via precision linear slides 20mm and bearings.

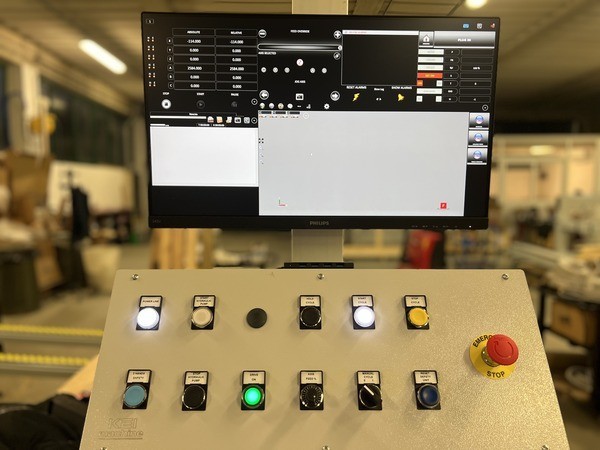

Stand alone moble control panel
24" screen
Dedicated graphic software for simple and intuative programming, with parametric function
Option to program at the machine or on a remote PC

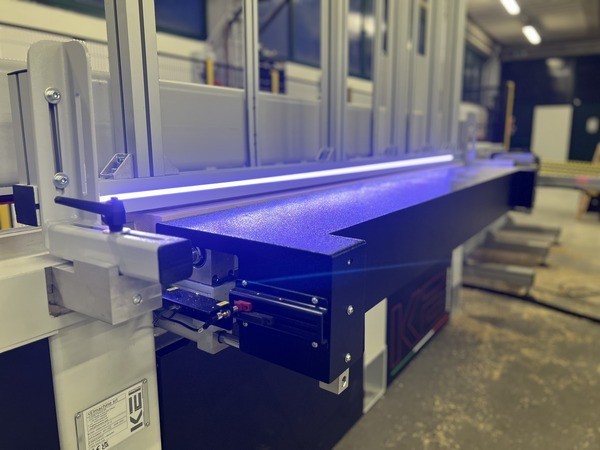

Safety features inclide front safety light beam and side / rear CE cage
The website uses cookies.
Some are used for statistical purposes and others are set up by third party services. By clicking 'Accept all & close', you accept the use of cookies. For more information on how we use and manage cookies, please read our Cookie Policy.
Quick and easy to set up between jobs with no manual head adjustment needed. In stock and ready for immediate delivery.
