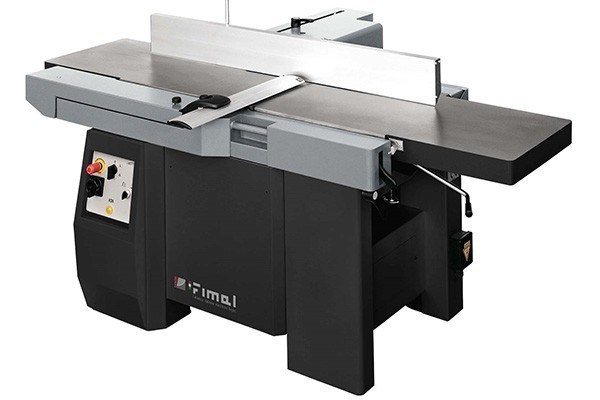

Fimal DR53 Combined Planer Thicknesser

An industrial level combined planer thicknesser, with lift up surfacing tables.

About this Product

An industrial level combined planer thicknesser, with lift up surfacing tables.

dr53-combined-planer-thicknesser
dr53-combined-planer-thicknesser
  • Planing
  • Thicknessing
  • Heavy duty build
fimal-video-placeholder

Specification

TECHNICAL SPECIFICATIONS

Surfacing tables cast Iron with parallelogram motion 2300 x 530mm

Planing fence 1500 x 175mm

Quick tilting fence 0-45 degrees

4 knife HSS cutter block 4800rpm

Max removal surfacing 8mm

Min / max thicknessing working height 3-250mm

Thicknessing planing table size 930 x 530mm

Feed speeds 5/7/9/12 m/min Moror 4kw

STANDARD EQUIPMENT

Simultaneous lifting of the surfacing tables

Rotary chip extraction guard

Power rise and fall of thicknessing table with electronic readout

Two idle rollers on thicknessing table

Bridge guard on surface planer

One off 120mm extraction outlet
