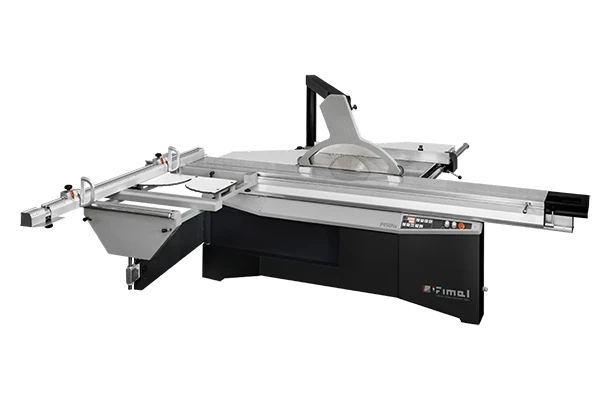

Fimal P450NX Sliding Table Panel Saw

About this Product

A substantially built, industrial level sliding table panel saw that has a max sawblade dia 450mm giving an impressive cutting height 155mm at 90 degrees. Standard features included powered rise / fall / tilt of the main sawblade, and electric vertical adjustment of the scoring saw unit.


A substantially built, industrial level sliding table panel saw that has a max sawblade dia 450mm.

Precise cutting

Easy to use

Suitable for panels or sold wood

Specification

TECHNICAL SPECIFICATIONS:

Worktable dimensions 1030X680 mm

Sliding table dimensions 3200X350 mm

Max squaring capacity with scorer 3350 mm

Cutting width max - blade to rip fence 1300 mm - manually adjusted - scale / pointer

Tilting blade 0.45 degrees

Max cutting height with blade d 450mm at 90° d.350 mm 155mm

Max cutting height with blade at 45° 110 mm

Max sawblade dia and bore size 450/30 mm

Saw rotation speeds 3000/3600/4600 RPM

Dust extraction outlet on machine base d.120 mm

Main sawblade motor 5.5kW (7.5HP) 50Hz

Scoring motor 0.55kW (0.75HP)

Max squaring with stops 3600 mm

STANDARD EQUIPMENT:

Carriage in anodised aluminium alloy sliding on high precision adjustable guides in hardened and ground steel

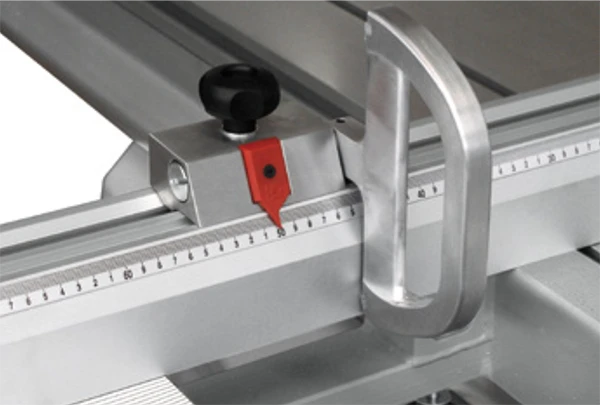

Mitre gauge on sliding table 90° quick locking and single degree tilting scale plus reference at 10, 15, 22.5, 30 and 45 degrees.

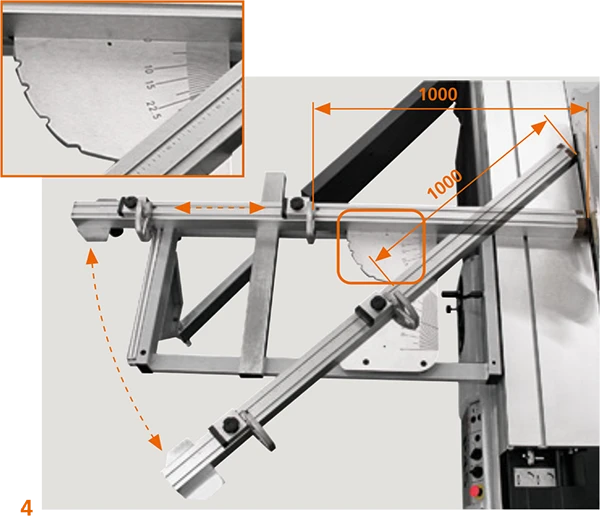

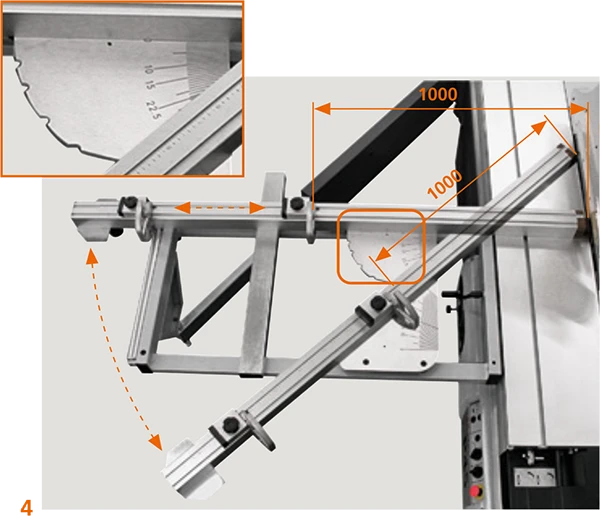

Quick fence positioning at 90° 10° 15° 22,5° 30° 45° keeping without change the stop position in reference to the blade position.

Anodised aluminium profiles

Table locking in any position

Main saw blade speed change accessed through the table

Sliding table with push handle

Eccentric workpiece clamp

Motorised blade rise / fall

Motorised sawblade tilting with electronic read out

Electric scoring saw vertical adjustment with automatic activation / exclusion when the blade is switched on / off.

Electrical adjustment of scoring saw deviation

Electrical safety micro switches on access door

Overload switch protection

Key locking master witch

Emergency stop

Electromagnetic main motor brake

CE compliant overhead saw guard with extraction point

Outfeed side extension table

Complete with set of sawblades 450 x 4.6 x 30 Z36.

Scoring blade 125 x 4.7 x 20 Z24
