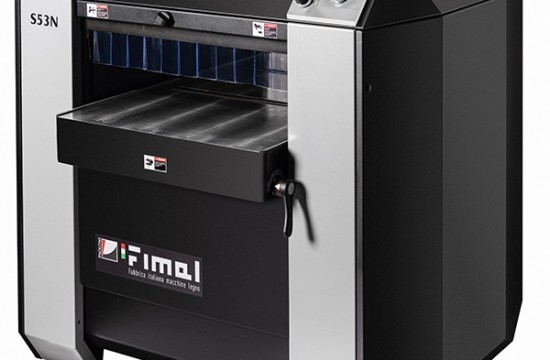

Fimal S53N Thickness Planer

About this Product

An industrial level, compact thicknessing planer for joinery or furniture production. Standard features include lifting of table on 4 screws, a 4 knife cutter block and power rise / fall of the table.


An industrial level, compact thicknessing planer for joinery or furniture production.

Compact

Easy to use

Power rise / fall

Specification

TECHNICAL SPECIFICATIONS:

Max working width 530mm

Min / max working thickness 3 to 310mm

Max stock removal in one pass 8mm

Cutter block dia 120mm with 4 off HSS blades

Cutterblock RPM 4800

Feed speeds 5-7.5-11.5-18 m/min

Min length of workpiece 250mmmain motor 4kw

STANDARD EQUIPMENT:

4 screw lifting of table

Micrometric adj of table

Decimal readout for thickness table position

Dust extraction connection 1 x 150mm

UK SPEC ADDITIONAL EQUIPMENT:

4 knife Tersa type cutter block with reversing knives

7.5hp motor

Sectional infeed roller

2 x adjustable table rollers
