Fimal TX113 Tilting Shaft Spindle Moulder

A medium duty, industrial level, tilting spindle Moulder.

  • Tilting shaft
  • Power rise & fall
  • Extended tables
Fimal Video Placeholder

About this Product

A medium duty, industrial level, tilting spindle Moulder. As standard the machine has tilting shaft -5 to + 45 degrees, 11/4" dia and hand wheel adjustment of the fence / fence plate positions.

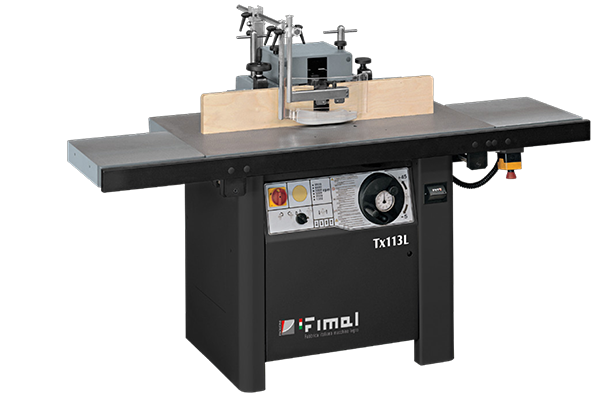

Tx113 Tilting Shaft Spindle Moulder
Tx113 Tilting Shaft Spindle Moulder
Tx113 Tilting Shaft Spindle Moulder 2
Specification

Technical specifications:

  • Worktable size 1200 x 700mm
  • Useable spindle height 140mm
  • Max spindle protrusion above the table 190mm
  • Spindle rotation speeds 1300 / 2500 / 3500 / 5000 / 6000 / 8500 rpm.
  • Max size of tool retractable under the table 320 x 50mm
  • Main motor power 5.5hp

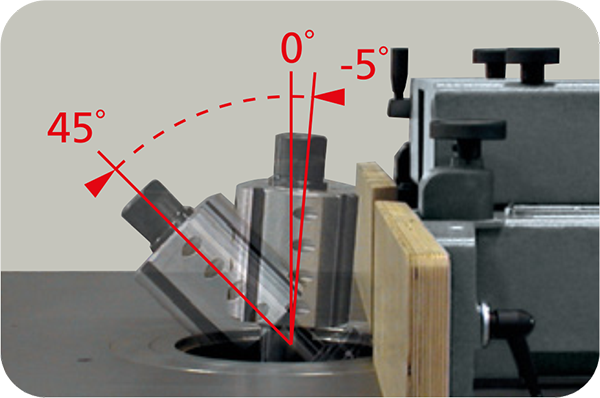

  • Spindle tilting range -5 to +45 degrees
  • 11/4" dia fixed spindle

Standard equipment:

  • Adjustable fence max tool dia 250mm
  • Mechanical readout and hand wheel for total fence displacement
  • Mechanical readout and hand wheel adjustment for right infeed fence
  • Dust extraction point on hood 120mm
  • Dust extraction point on rear of machine frame 120mm
  • Gravitational display for tilting angle of the spindle - adj by hand wheel
  • Power rise / fall of spindle with decimal height readout
  • Safety interlock on door
  • Safety microswitch on fence assembly
  • Key locking master switch
  • Electromagnetic spindle brake
  • LED light display for spindle speed setting
  • Emergency stop button
  • Pre arrangement (electrically) to accept a power feed unit (Feeder extra cost)

Complete with:

  • Left and right table extensions 200mm total overall length with frontal retractable support bar
