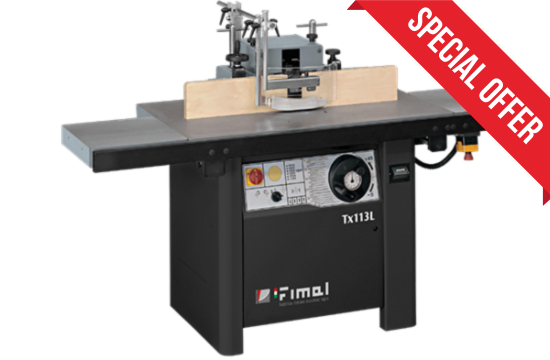

Fimal TX113 Tilting Shaft Spindle Moulder

A medium duty, industrial level, tilting spindle moulder. Available to buy online with immediate delivery.

About this Product

As standard the machine has tilting shaft -5 to + 45 degrees, 11/4" dia and hand wheel adjustment of the fence / fence plate positions.

  • Medium duty, industrial level, tilting spindle moulder
  • Tilting shaft
  • Power rise & fall
  • Extended tables

PRICE

£12,400.00 + VAT

Total price £14,880.00 incl. VAT


Product information

Specification

Technical specifications:

Worktable size 1200 x 700mm

Useable spindle height 140mm

Max spindle protrusion above the table 190mm

Spindle rotation speeds 1300 / 2500 / 3500 / 5000 / 6000 / 8500 rpm.

Max size of tool retractable under the table 320 x 50mm

Main motor power 5.5hp

Spindle tilting range -5 to +45 degrees

11/4" dia fixed spindle

Standard equipment:

Adjustable fence max tool dia 250mm

Mechanical readout and hand wheel for total fence displacement

Mechanical readout and hand wheel adjustment for right infeed fence

Dust extraction point on hood 120mm

Dust extraction point on rear of machine frame 120mm

Gravitational display for tilting angle of the spindle - adj by hand wheel

Power rise / fall of spindle with decimal height readout

Safety interlock on door

Safety microswitch on fence assembly

Key locking master switch

Electromagnetic spindle brake

LED light display for spindle speed setting

Emergency stop button

Pre arrangement (electrically) to accept a power feed unit (Feeder extra cost)

Complete with:

Left and right table extensions 200mm total overall length with frontal retractable support bar
