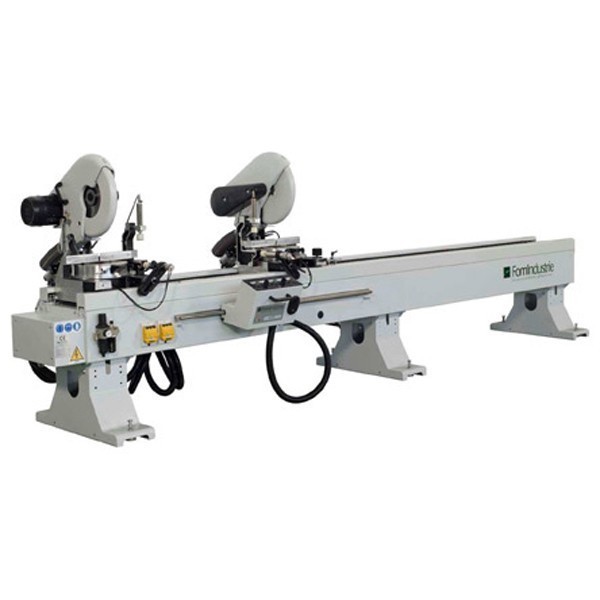

A double headed saw for straight, angle and compound angle cutting of aluminium sections, with one fixed head and one moveable head positioned along precision linear guides, the blades can rotate to +/-45° and tilt from 90° to 45° outwards, intermediate angles can locked in position.
The machine is fitted with 2 x Ø400mm TCT saw blades with oilpneumatic downstroke,the speed of stroke can be controlled with a fast return stroke. Two length versions are available 4000mm and 6000mm.
A double headed saw for straight, angle and compound angle cutting of aluminium sections, with one fixed head and one moveable head positioned along precision linear guides, the blades can rotate to +/-45° and tilt from 90° to 45° outwards, intermediate angles can locked in position.
A double headed saw for straight, angle and compound angle cutting of aluminium sections, with one fixed head and one moveable head positioned along precision linear guides, the blades can rotate to +/-45° and tilt from 90° to 45° outwards, intermediate angles can locked in position.
The machine is fitted with 2 x Ø400mm TCT saw blades with oilpneumatic downstroke,the speed of stroke can be controlled with a fast return stroke. Two length versions are available 4000mm and 6000mm.
2 x 3hp motors ( belt drive to blades )
2 x Ø400mm TCT saw blades
2 x horizontal clamps
Spray mist lubrication system
See cutting chart for cutting capacity
