MBA - X-Combi - Combined Timber Frame Assembly Station For Walls

About this Product

Full PC control with two 19” touch screens

Interactive display of framing for panel assembly

Automatic download from drawing software

Heavy duty tables with one fixed side and one moving side

90-degree squaring corner blocks with pneumatic retraction to enable the panel to move to the next position when finished

Motorised table opening with automatic brake locking

Independent retractable clamping system, for the complete access of nail guns along the top and bottom rails, to enable square and accurate clamping of the panel

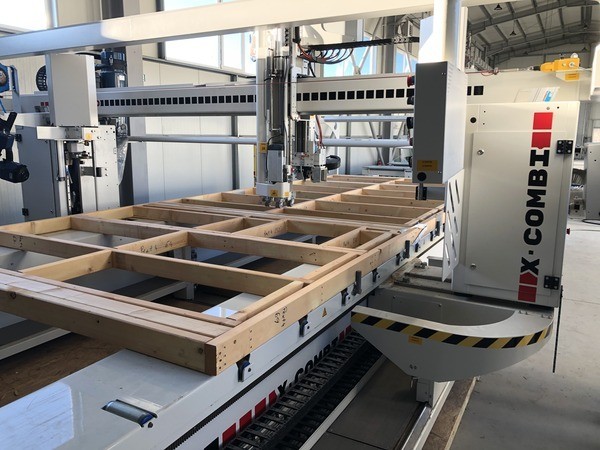

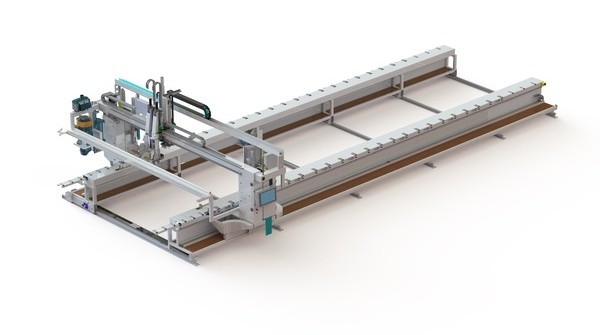

A complete working station for the production of timber frame construction walls including the following functions:

Framing of the wall

Application of cladding

Nailing or stapling of cladding

Drilling & Routing of openings and overhangs

Application of breather paper

Nailing of battens

Glueing of sheeting material to frames



Specification

Full PC control with 2 off 19” touch screens Interactive display of framing for panel assembly Automatic download from drawing software

Heavy duty tables with one fixed side and one moving side

90 degree squaring corner blocks with pneumatic retraction to enable panel to move to next position when finished

1500mm minimum panel height Maximum panel height 6m

Maximum panel length 20m

825mm working height 500mm maximum frame height

Motorised table opening with automatic brake locking

Independent retractable clamping system, for the complete access of nail guns along top and bottom rails, to enable square and accurate clamping of the panel

Framing tools driven to the required position via a servo drive motor, with heights controlled by software

Bridge mounted with nailing / stapling tool as standard. Options for other tools to be mounted

Full integration with major software packages including Sema, Dietrich;s, HsbSoft, CADWORKS, Gang Nail, DDS, Mitek.& Inventor

Batten application system with guide to ensure they battens are kept straight before nailing including batten storage area

Selection of multiple nail positions in both automatic and manual modes

Pneumatic lifting rollers to assist the manually transporting of the finished panel to next position.

Optional stud/sheeting carriage enabling studs to remain adjacent to the operator whilst assembling the frame.
