Omga TRF527 Twin Station Double Mitre Saw

About this Product

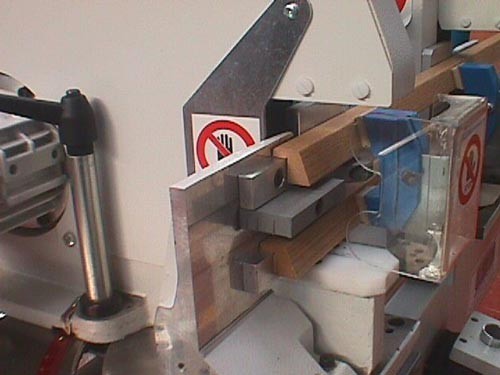

A twin blade saw that has been specifically designed for cutting glazing beads accurately to length, with either a straight or mitred cut. The machine has two work-levels one set above the other, allowing two lengths of beading to be cut simultaneously. The two lengths of bead are held secure during the cutting operation by the front pneumatic clamps. Setting the correct length is achieved by means of handwheel moving the left head in relationship to the fixed right head, the length is easily read from the mechanical digital display.

Designed for the quick, accurate and safe cutting of mitred door and window

Accurate cutting

Pneumatic clamping

Twin blade

Specification

Min/Max. cutting length 150mm - 2400mm

Max. cutting section at 90° 55 x 100mm

Max. cutting section at 45° 40 x 100mm

2 x sawblades dia. 220mm x 30mm bore

Motor 1.6hp, 3 phase

CE Safety requirements

Options
Downloads
