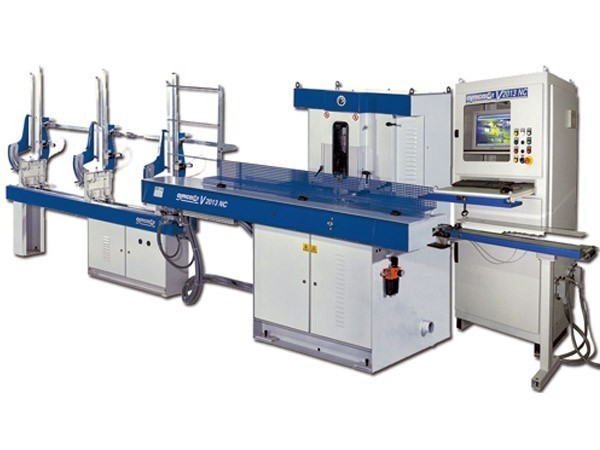

The V2013 ANC is a high speed precision mitre saw for the picture frame, joinery and furniture industries. It is fitted with an on board computer enabling it to operate in various cutting modes with automatic angle setting at 45° for square and rectangle, 30° for hexagnal and 22.5°, for octagnal frames. The machine is able to cut from random lengths of material and can also optimize the cutting sequence in its list mode.
The onboard control unit with Microsoft Windows operating system has a 17" touch scree colour dispay which allows the data that the operator requires to be constantly displayed. Programs can be written and edited on the machine or can be downloaded from an office PC via USB port. It is possible to interrupt the cutting process at any time and have a different program carried out whilst all the data relating to the first program remains stored. Error messages are displayed on screen reducing downtime.
The machine is fitted with a 3000mm capacity horizontal hopper feed system and outfeed conveyor belt with a pneumatic sequence kicker also fitted as standard, in order not to damage the cut components and to separate the tail end waste pieces.
Automatic, hopper-fed. programmable twin-blade mitre saw for picture framing, furniture or joinery
High speed
Precision cutting
Programmable
The V2013 ANC is a high speed precision mitre saw for the picture frame, joinery and furniture industries. It is fitted with an on board computer enabling it to operate in various cutting modes with automatic angle setting at 45° for square and rectangle, 30° for hexagnal and 22.5°, for octagnal frames. The machine is able to cut from random lengths of material and can also optimize the cutting sequence in its list mode.
The onboard control unit with Microsoft Windows operating system has a 17" touch scree colour dispay which allows the data that the operator requires to be constantly displayed. Programs can be written and edited on the machine or can be downloaded from an office PC via USB port. It is possible to interrupt the cutting process at any time and have a different program carried out whilst all the data relating to the first program remains stored. Error messages are displayed on screen reducing downtime.
The machine is fitted with a 3000mm capacity horizontal hopper feed system and outfeed conveyor belt with a pneumatic sequence kicker also fitted as standard, in order not to damage the cut components and to separate the tail end waste pieces.
Twin Cutting units with 2 x 3hp motors
Pneumatic blade downstroke with speed control
1200mm workpiece feeder
3000mm horizontal hopper feeder
Automatic angle setting at 22.5°,30° and 45°
Outfeed conveyor belt with pneumatic kicker
17" Touch screen display
2 x USB 3.0 + 6 USB 2.0
Ethernet
Intel multicore 3.0 GHz processor
OS Microsoft Windows Embeded
3 COM ports 1-2-3 ( RS232/422/485 )
CE Safety equipment
