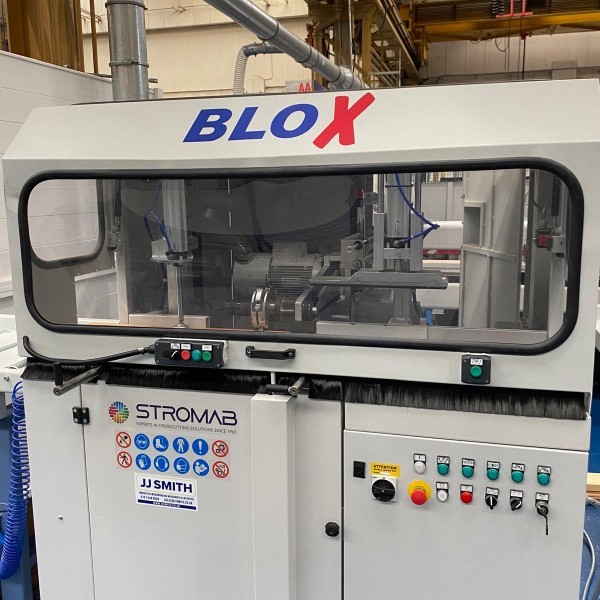

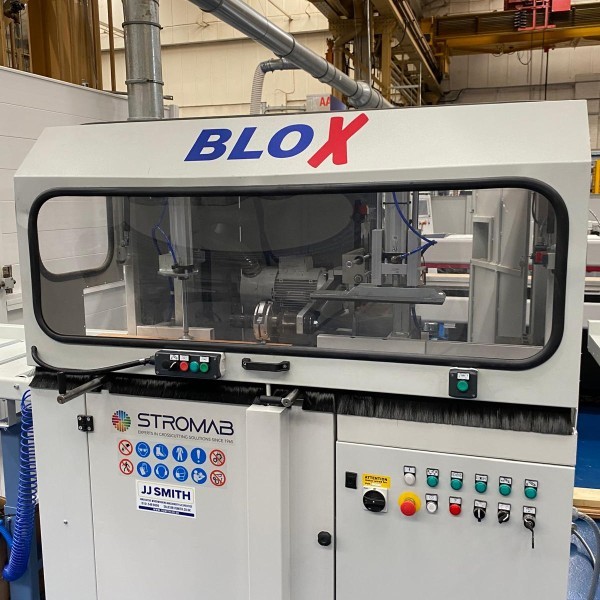

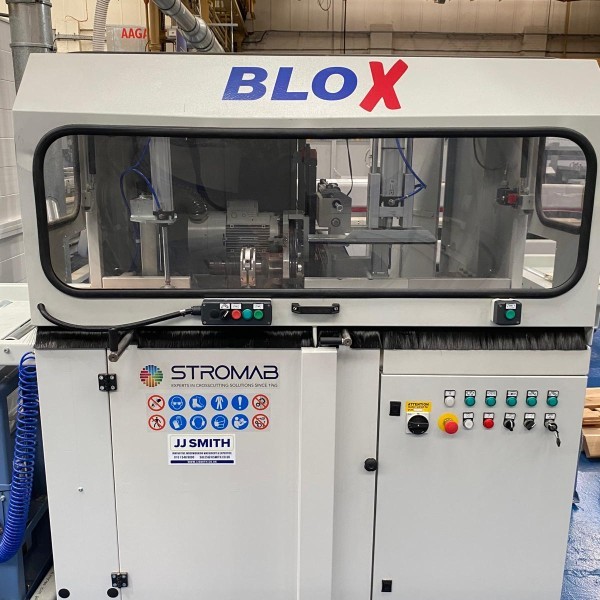

Stromab Blox 4 Way Notching Machine - Ex Demo

Semi automatic 4-way notching machine for the production of log cabin style products. Ex-demo available at a much reduced price.

About this Product

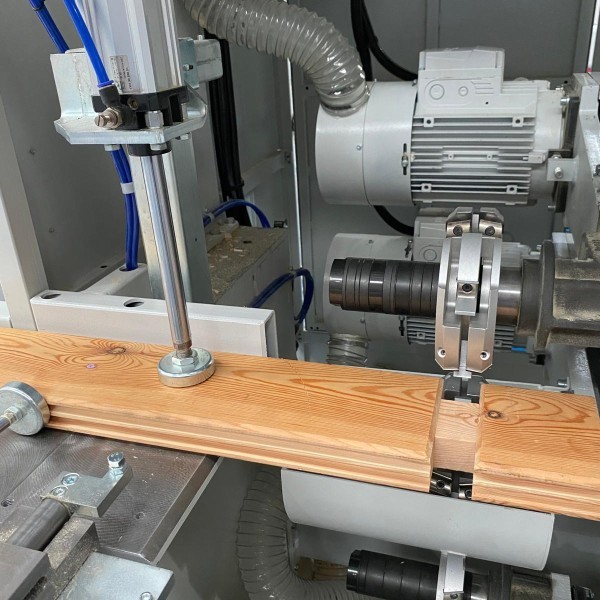

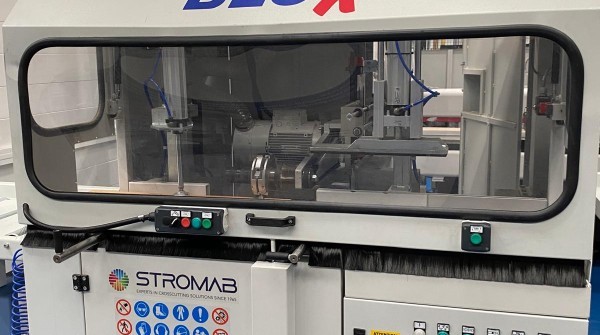

The machine comprises of 2 x vertical and 2 x horizontal milling units that work in sequence to produce the corner joint. The machining cycle is activated by 2 hand bush button control. The working area containing the vertical and horizontal claps and milling units is completely protected by an electrically interlocked hinged guard for maximum operator safety.



Infeed and outfeed tables are not included - browse our range of Roller Tables to choose your required size.

  • Mechanical 4 way notching machine for log cabin style joints
  • Semi automatic operation
  • Variable speed control to cutter heads
  • Available now with immediate delivery

PRICE

£37,950.00 + VAT

Total price £45,540.00 incl. VAT


Product information

Specification

Maximum work piece dimensions: 230(W) x 230 (H) mm.

Minimum work piece dimensions: 100(W) x 60(H) mm.

With upper horizontal milling tool Ø 210 mm minimum height can be 45 mm.

Milling shaft Ø 40 mm.

N°2 vertical milling shaft for maximum tool Ø 230mm.

N°2 horizontal milling shaft for maximum tool Ø 180 mm.

Minimum milling tool width 21 mm.

Maximum milling tool width 200 mm.

Maximum vertical cutting depth 70 mm.

Maximum horizontal cutting depth 45 mm.

Shafts distance adjustment with mechanical readout

Work piece clamping by n.2 pneumatic cylinders

Tools motion operated by a hydro-pneumatic cylinder

Motor power for each cutter 4 kW

Vertical cutter revs 4640 rpm

Horizontal cutter revs 5930 rpm

Two handed safety working starter

Tools NOT included

Distance top cutter head to working table 18 mm
