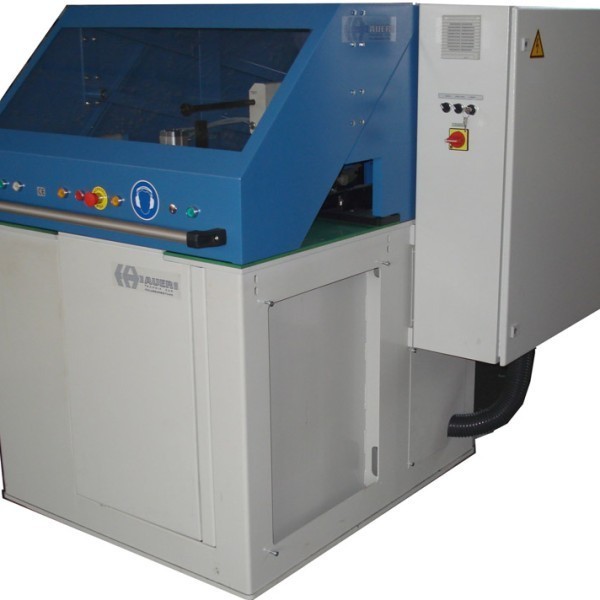

A high quality Austrian built compact 4 way notching machine specifically designed for the production of the joint used in log cabin style products, including garden summer houses, chalets and quality sheds.
The machine can be used for the machining of tops of decorative garden fence or decking posts. The machine is manufactured on a small base unit and has no options for the fitting of sawing or end notching.
Cutting head machining and clamping sequence is PLC controlled. Due to the hydraulic control of the cutter head movement and the TCT tool, an excellent quality 4 way notch can be produced.
Compact 4-way notching machine for the production of the joint used in quality log cabins.
Compact Design
Simple to use
Quality 4-way notch
A high quality Austrian built compact 4 way notching machine specifically designed for the production of the joint used in log cabin style products, including garden summer houses, chalets and quality sheds.
The machine can be used for the machining of tops of decorative garden fence or decking posts. The machine is manufactured on a small base unit and has no options for the fitting of sawing or end notching.
Cutting head machining and clamping sequence is PLC controlled. Due to the hydraulic control of the cutter head movement and the TCT tool, an excellent quality 4 way notch can be produced.
Maximum Vertical (Wall thickness) capacity 100mm
Maximum Horizontal (Wall height) capacity 200mm
Minimum Vertical capacity 28mm
Minimum Horizontal capacity 100mm
Minimum workpiece length 300mm
Horizontal milling heads 2 off 3kw - 4200rpm
Vertical milling heads 2 off 3kw - 4200rpm
Control of cutter head feed, servo driven, infinitely variable with express travel.
Braked motors
PLC controlled logic
Variable feed speed of vertical hydraulic feed
Extraction tray (under floor) 160mm diameter outlet
Two hand push button safety cycle start.
Hinged safety hood with clear lexon viewing panel. Electrical safety interlock
400/3/50 electrics.
Complete with:
A set of adjustable tools for 28-44mm timber sections - offset 90 degree joint.
(Suitable for different wall thickness on request - possible additional extra cost).
2 Horizontal clamps & 2 Vertical clamps
Pneumatic End Stop for notch position.
