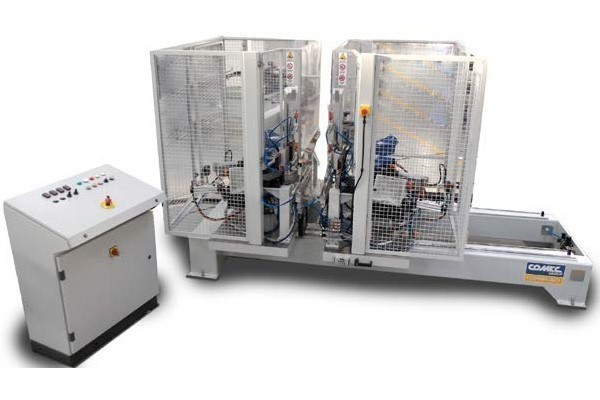

An automatic 2 station, double end corner jointing machine, for producing joints for stretcher bars. The machine consists of an automatic hopper feeding system, feeding the cut to length components to the first grooving station. the piece is then fed to the second station for the 45 degree tenon, before being gravity fed to the back of the machine.
An automatic 2 station, double end corner jointing machine, for producing joints for stretcher bars.
High Speed
Auto loading
Special design

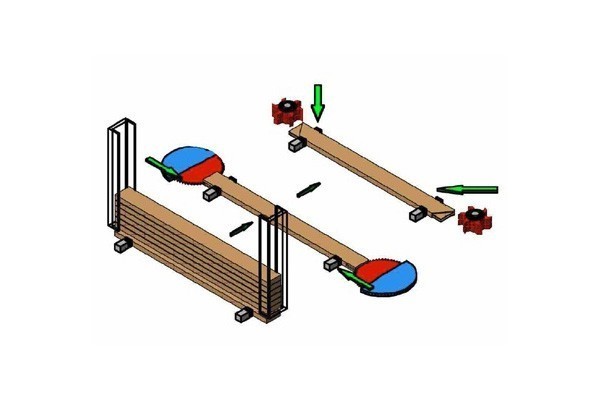

An automatic 2 station, double end corner jointing machine, for producing joints for stretcher bars. The machine consists of an automatic hopper feeding system, feeding the cut to length components to the first grooving station. the piece is then fed to the second station for the 45 degree tenon, before being gravity fed to the back of the machine.
Left and right horizontal milling units for groove 1.8kw
Left and right horizontal milling units for the tenon 3kw
Vertical pneumatic clamping of work piece
Hopper feed system with automatic loading
Min / max length 200 - 1500mm
Min / max width 15 - 100mm
Min / max thickness 5 - 50mm
Production output 8 pieces per min ( both ends )
