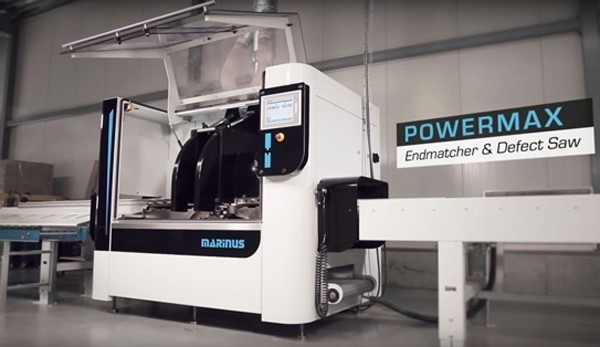

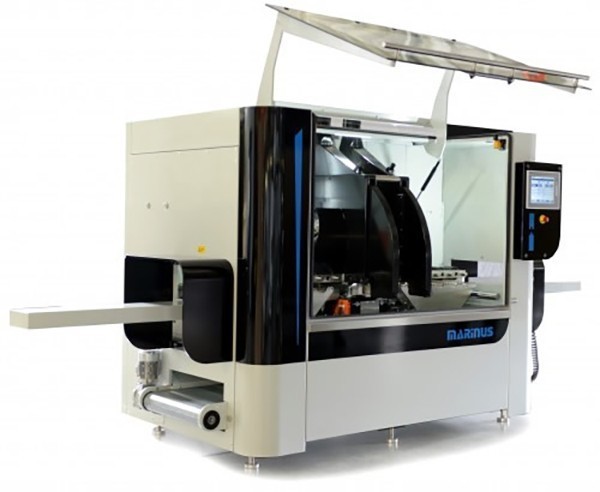

A unique high speed machine for defecting and end matching of flooring components. The machine has an accurate positioning system for positioning the wood to chalk marked defects. Defects are then cut out and the boards end matched automatically.
The machine is capable of end matching up to 24 pieces (2m long) per minute with no defecting. With an average of 1 defect per board, the machine can cut 15 boards per minute (to produce an average of 30 cut pieces)
A unique high speed machine for defecting and end matching of flooring components. The machine has an accurate positioning system for positioning the wood to chalk marked defects. Defects are then cut out and the boards end matched automatically.
The machine is capable of end matching up to 24 pieces (2m long) per minute with no defecting. With an average of 1 defect per board, the machine can cut 15 boards per minute (to produce an average of 30 cut pieces)
Infeed length 450mm - 6000mm
Width 50mm - 300mm (optionally 500mm)
Board thickness 8 - 45mm
Production methods - Random length with defect cutting
Fixed length cutting (no defecting)
Feeding speed - up to 120m/min by direct servo drive
Toothed chain feeding system with indepedent top pressures
Side clamping by plate to avoid marking the boards
Aluminium chip breakers
Cutter diameters - 125mm
2 off 3.0kw saw motors
2 off highspeed (12
000rpm) 7.5kw millng motors
Fast downstroke saw action with sawblade diameter - 450mm
Weight 2000kg
Omron controller with touch screen user interface
2 part waste conveyor
