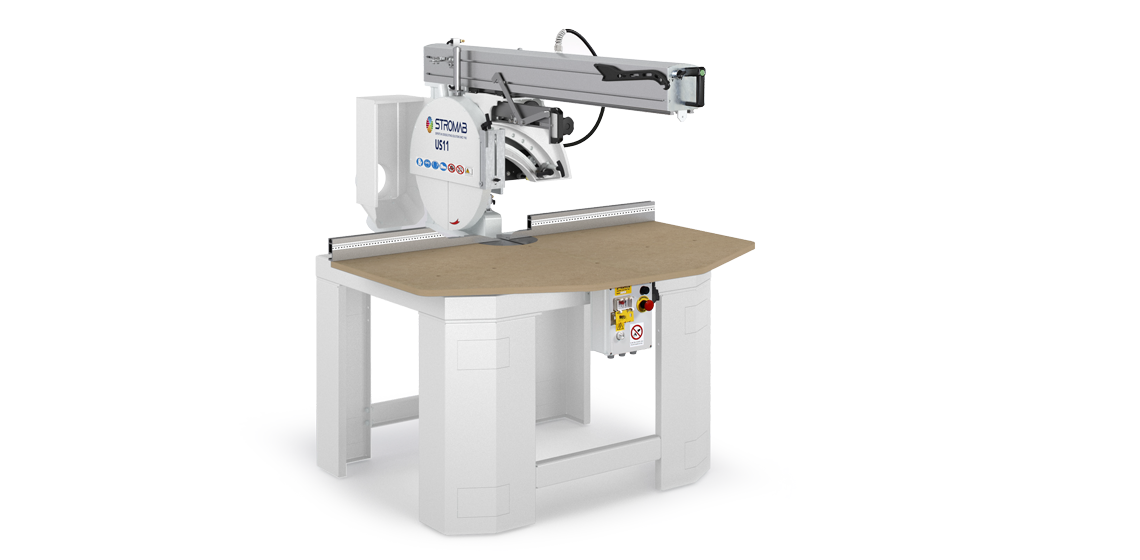

A heavy duty universal radial arm crosscut saw, for straight, vertical and horizontal angle cutting
A heavy duty universal radial arm crosscut saw, for straight, vertical and horizontal angle cutting. The saw is manually operated with preset angles at 90 and 45 degrees. all intermediate angles are locked pneumatically.Fitted with a 5.5 hp motor and 550 mm TCT saw blade, the saw is particularly suited for cutting accurate angles of heavy section material, such as timber frame and garden furniture components.
5.5 hp saw motor550mm saw blade capacityHorizontal axis + 60 / 0 / -45°Vertical axis 0° + 45°Horizontal axis pneumatically lockedDust outlet Ø150mm
Cutting Capacity at 0° 525 mmCutting Capacity at 60° 270 mmCutting Capacity at 45° 370 mmCutting Height at 0° 200 mmCutting Height at 45° 110 mm
Roller table ( Ø60mm idle ) per 1mtManual side stopPneumatic side stopLaserTCT saw blade Ø550mmPneumatic side clampHorizontal axis rotation displayVertical axis beveling displayTravers damper ( recommended for thickness over 150 mm )
