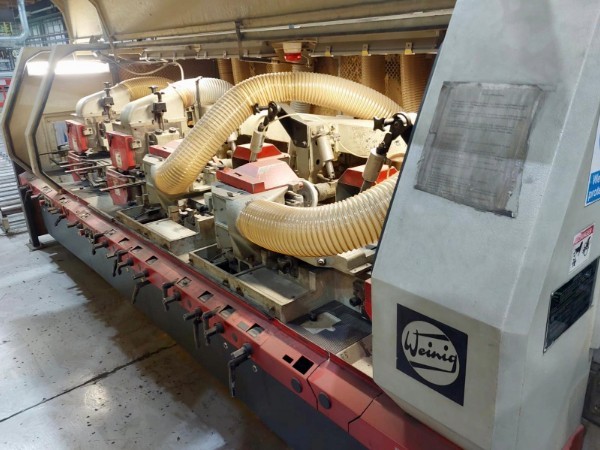

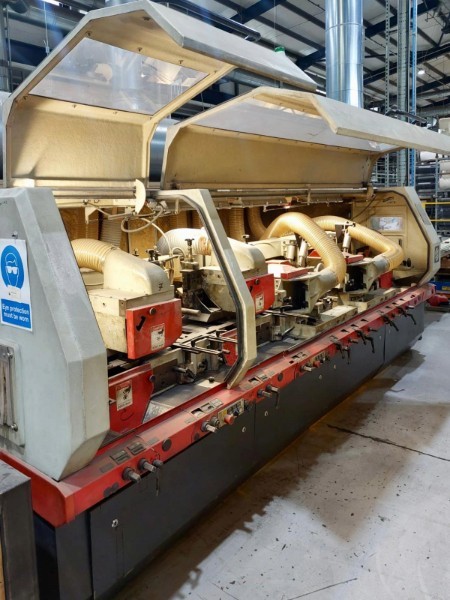

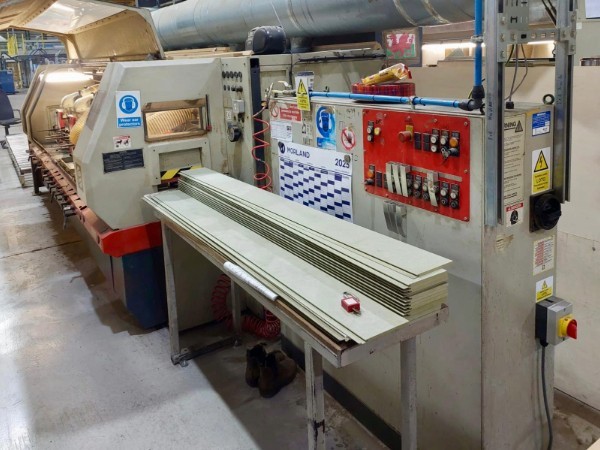

Weinig Hydromat 23 planer and moulder for four-sided planing and profiling of wood and beams with high feed rates and four driven rollers in the table.
spindles: 8working width: 230 mm
working height: 160 mm
spindle 1: Bottom / 11 kW / 50 mm
spindle 2: Right / 11 kW / 50 mm
spindle 3: Left / 11 kW / 50 mm
spindle 4: Right / 7.5 kW / 50 mm
spindle 5: Top / 11 kW / 50 mm
spindle 6: Bottom / 18.5 kW / 50 mm
spindle 7: Top / 7.5 kW / 50 mm
spindle 8: Bottom / 7.5 kW / 50 mm
feed: max. 60 m/min // 11 kW // Hydraulic
spindles: 8
working width: 230 mm
working height: 160 mm
spindle 1: Bottom / 11 kW / 50 mm
spindle 2: Right / 11 kW / 50 mm
spindle 3: Left / 11 kW / 50 mm
spindle 4: Right / 7.5 kW / 50 mm
spindle 5: Top / 11 kW / 50 mm
spindle 6: Bottom / 18.5 kW / 50 mm
spindle 7: Top / 7.5 kW / 50 mm
spindle 8: Bottom / 7.5 kW / 50 mm
feed: max. 60 m/min // 11 kW // Hydraulic
