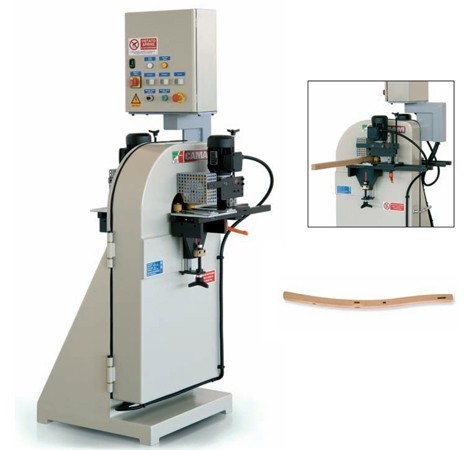

This machine has been specifically designed for sanding the corners / shaped or radius edges on solid wood parts used for chairs, beds, tables and various other further elements.
Belt motor 5.5hp.
Feed motors - 2 x 0.33hp.
Sanding belt sizes 1220 70mm
Min / max dia to be worked 10 to 100mm
Advancement feed speed 8 to 20m/min.
Min length of piece 320mm (200mm with optional short stock device)As standard the machine is equipped with 2 x flat sanding unit that rotates through 360 degrees, with the component automatically being fed on the infeed and outfeed by a powered rollers. Optionally an automatic loader can be specified.
This machine is designed for sanding the corners / shaped or radius edges on solid wood parts used for chairs, beds, tables and various other further elements
Rotating sanding heads
Powered feeding
Compact design
This machine has been specifically designed for sanding the corners / shaped or radius edges on solid wood parts used for chairs, beds, tables and various other further elements.
Belt motor 5.5hp.
Feed motors - 2 x 0.33hp.
Sanding belt sizes 1220 70mm
Min / max dia to be worked 10 to 100mm
Advancement feed speed 8 to 20m/min.
Min length of piece 320mm (200mm with optional short stock device)As standard the machine is equipped with 2 x flat sanding unit that rotates through 360 degrees, with the component automatically being fed on the infeed and outfeed by a powered rollers. Optionally an automatic loader can be specified.
Belt motor 5.5hp.
Feed motors - 2 x 0.33hp.
Sanding belt sizes 1220 70mm
Min / max dia to be worked 10 to 100mm
Advancement feed speed 8 to 20m/min.
Min length of piece 320mm (200mm with optional short stock device)
