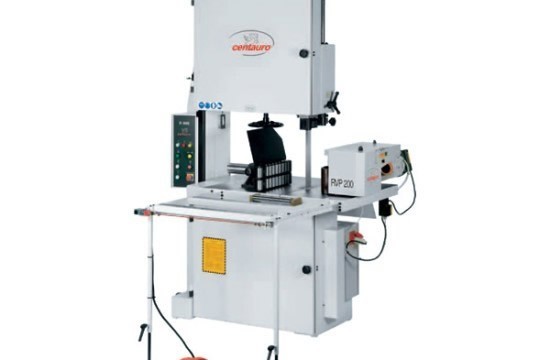

A Compact, but robustly built industrial free standing power feed resaw. As standard the machine is equipped with a variable spreed feed unit with pneumatic opening for easy feeding. Other features include solid cast iron saw pulleys, top and bottom blade guide and CE safety and braking systems.
A Compact, but robustly built industrial free standing power feed resaw equipped with a variable spreed feed unit.
Variable Feeding
Hardwoods or softwoods
Compact design.
A Compact, but robustly built industrial free standing power feed resaw. As standard the machine is equipped with a variable spreed feed unit with pneumatic opening for easy feeding. Other features include solid cast iron saw pulleys, top and bottom blade guide and CE safety and braking systems.
Feeding system / general capacity.
RVP 200 variable speed feed system
Steel feed rollers 200mm dia.
Variable feed speed 0 - 30 mt/min speed.
Max. feed roller to blade clearance 200mm.
Max. fence to blade clearance 200mm.
Main saw
Dia. of saw pulleys 800mm.
Max. cutting height 400mm.
Max. blade width 80 x 0.8mm.
Max. / Min blade length 5530 / 5380mm.
Height of table from floor 950mm.
Table size 1060 x 8000mm.
Automatic star-delta starter.
Automatic pneumatic braking of wheels.
Safety micro-switch to doors.
Front infeed support rollers with emergency protection cable
Tilting table 15 dergrees
Telescopic blade guard
CHACO blade guide on the table
Rackwork.
Dust scrapers on wheels.
Steel sawblade ready for use.
Extraction points x 2 - 100 and 120mm dia.
Working air pressure 6 to 8 bar
