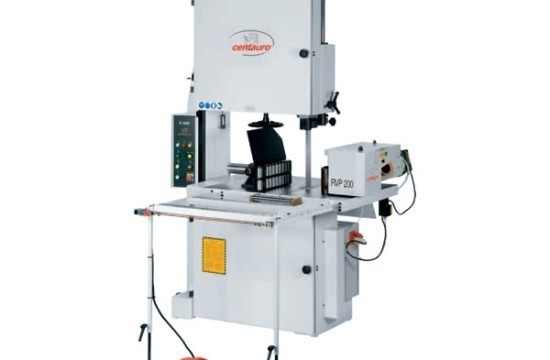

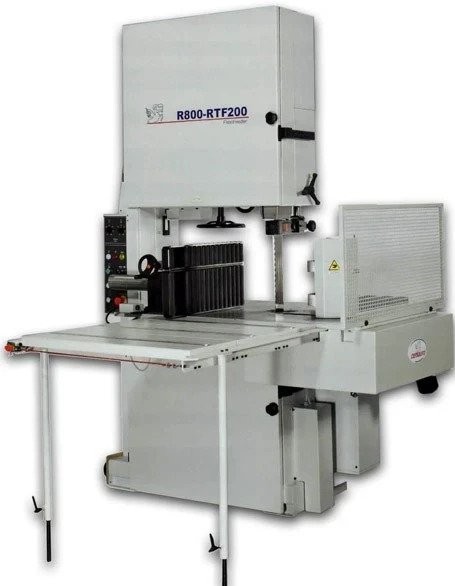

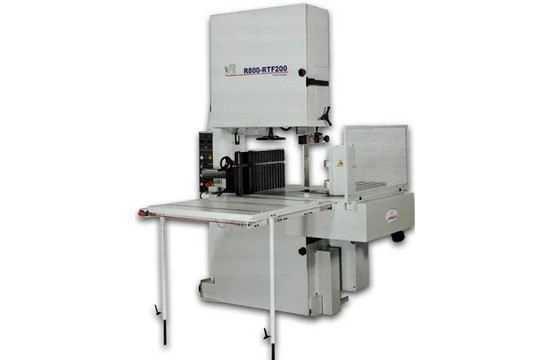

A substantially built but compact free-standing power feed resaw fitted with the all-new RFT200 'flexi feeder' system. As standard, the machine is equipped with a 15hp main motor, top and bottom saw guide system with rack adjustment of the top guides, along with a saw blade tensioning indicator.
The RTF feed system has variable and fully adjustable feed speeds through an inverter from 1 to 28m/min. The feed arm, which as standard has 2 x serrated steel feed rollers fitted, has automatic pneumatic opening activated when a sensor on the infeed detects the end of the timber.
The initial feed-in speed can be controlled independently of the feed cutting speed, thus meaning you achieve a smooth entry and then speed up as required to the set speed. The standard feed rollers can be complemented by a rubber-covered roller for angled cuts or 2 x 45 degree steel rollers for diagonal cuts. The machine is also fitted with various safety features, including a pneumatic brake and an in-feed safety trip cable.
A substantially built but compact free-standing power feed resaw fitted with the all-new RFT200 'flexi feeder' system. As standard, the machine is equipped with a 15hp main motor, top and bottom saw guide system with rack adjustment of the top guides, along with a saw blade tensioning indicator.
The RTF feed system has variable and fully adjustable feed speeds through an inverter from 1 to 28m/min. The feed arm, which as standard has 2 x serrated steel feed rollers fitted, has automatic pneumatic opening activated when a sensor on the infeed detects the end of the timber.
The initial feed-in speed can be controlled independently of the feed cutting speed, thus meaning you achieve a smooth entry and then speed up as required to the set speed. The standard feed rollers can be complemented by a rubber-covered roller for angled cuts or 2 x 45 degree steel rollers for diagonal cuts. The machine is also fitted with various safety features, including a pneumatic brake and an in-feed safety trip cable.
Pulley dia 800mm.
Table height from floor 960mm.
Main motor 15hp.
Star delta starting.
Top and bottom saw guides.
Rack adjustment to top guides.
Max. blade width 80mm
Max. / min. blade length 5530mm - 5380mm
Max. cutting height 400mm.
Max. fence to blade clearance 400mm (500mm on request).
Max. feed roller to blade clearance 200mm.
2 x serrated feed rollers each 200mm dia x 50mm in thickness
Right side roller fence tilting up to 45 degrees (300mm height).
Adjustable feed speeds through inverter 1 to 28m/min.
Blade lubrication.
