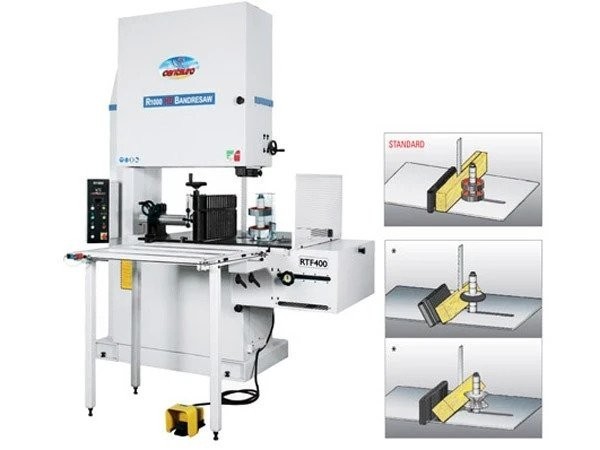

A heavy duty power band resaw with substantial frame and cutting capacity for which no foundation pit is required. The RTF 400 hydraulic feed system has variable speed and pneumatic opening and has 2 x adjustable steel feed rollers.
Other standard features include hydraulic sawblade tensioning, digital ammeter, solid cast saw pulleys, top and bottom blade guides, pneumatic braking to the saw pulley and micro switch safety devices on pulley access doors. The max. blade width is 110mm. Optionally the machine can be fitted with additional feed rollers to facilitate diagonal cuts.
A heavy duty power band resaw with substantial frame and cutting capacity for which no foundation pit is required.
Heavy Duty
No pit required
Powerful feeding system
A heavy duty power band resaw with substantial frame and cutting capacity for which no foundation pit is required. The RTF 400 hydraulic feed system has variable speed and pneumatic opening and has 2 x adjustable steel feed rollers.
Other standard features include hydraulic sawblade tensioning, digital ammeter, solid cast saw pulleys, top and bottom blade guides, pneumatic braking to the saw pulley and micro switch safety devices on pulley access doors. The max. blade width is 110mm. Optionally the machine can be fitted with additional feed rollers to facilitate diagonal cuts.
Feeding system / general capacity:
RTF hydraulic variable feed system with pneumatic opening / closing.
Feed roller dia 200mm x 50mm thick - 2 off steel. (Additional feed rollers can be fitted for max. cutting height of 300mm).
Height of fence rollers on fence 200mm.
Max. distance feed roller to blade 300.
Max. distance fence to blade 380mm.
Fence rollers tilt to 45 degrees.
Feed speed variable 0-40 mt/min.
Main saw:
Max. working sizes 500mm high x 680mm wide.
30hp main motor.
Wheel diameter 1000mm.
Table dimensions 1500 x 920mm - none tilting.
Table height from floor 1050mm.
Max/Min width of blade 110mm/80mm x 1mm.
Automatic star-delta starter.
Automatic pneumatic braking of pulley wheel.
Hand operated hydraulic sawblade tensioning.
Safety micro-switch to doors.
Top and bottom blade guide with wooden inserts.
Rackwork for raising and lowering top guide.
Dust scrapers on wheels
Blade cleaning felt with diesel oil tank
Cleaning scrapers on both wheels
Steel sawblade ready for use
3 x extraction outlets 120mm diameter
Digital amoerometer
Air supply 6 to 8 bar.
