Centauro ALFA NC Milling / Slotting Machine For Doors, Frames, Louvers & Furniture Parts

A versatile NC controlled machining centre suitable for a variety of machining operations including hinge recessing, lock slots, handle holes, key slots and euro grooves etc

Key Features:

  • Simple Programming
  • Very Flexible
  • Ideal for doors / frames

About this Product

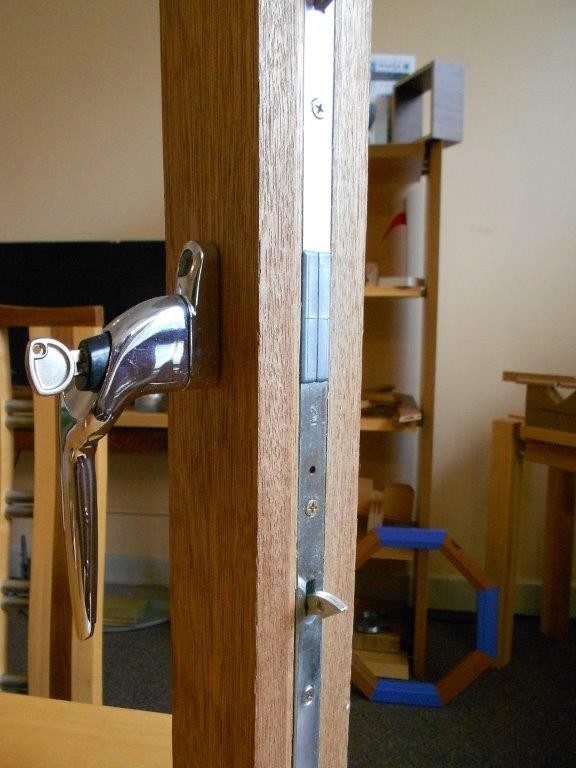

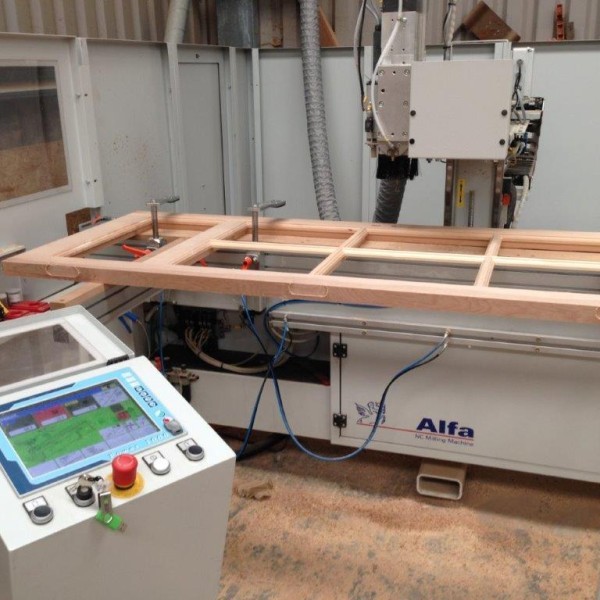

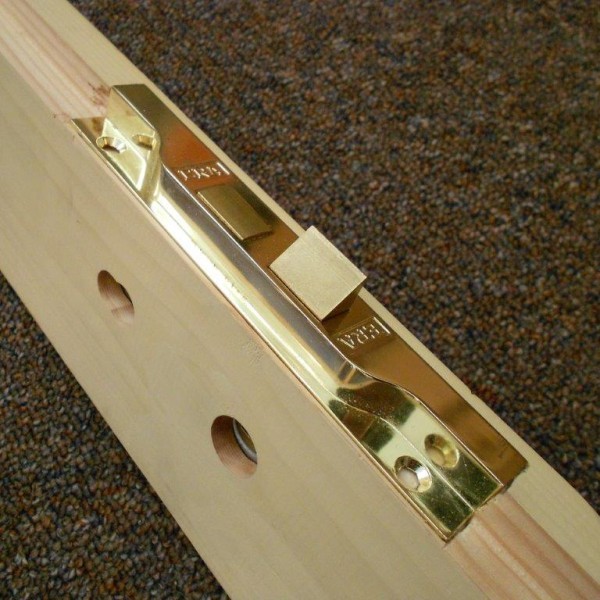

A versatile and flexible NC controlled machining centre suitable for a variety of machining operations including hinge recessing, lock slots, handle holes, key slots and euro grooves etc. Programming is extremely simple thanks to the latest generation TOP12 colour graphic touch screen controller using pre-installed electronic macros.

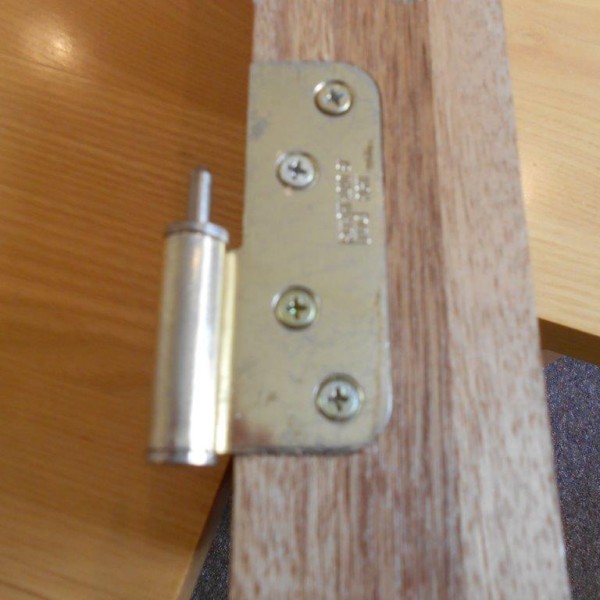

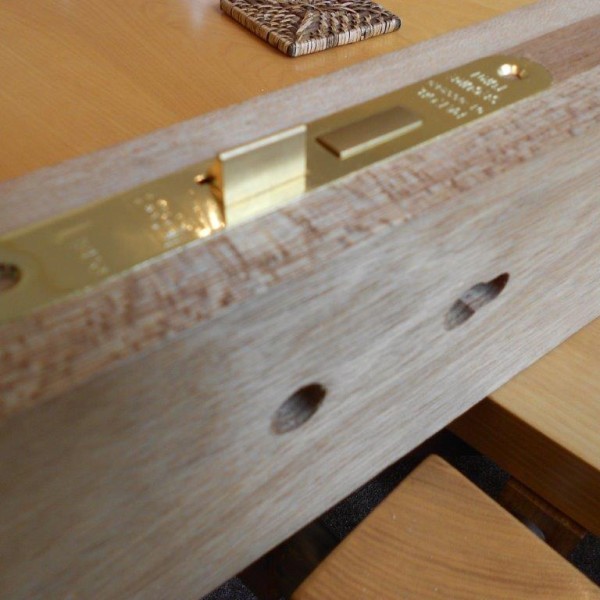

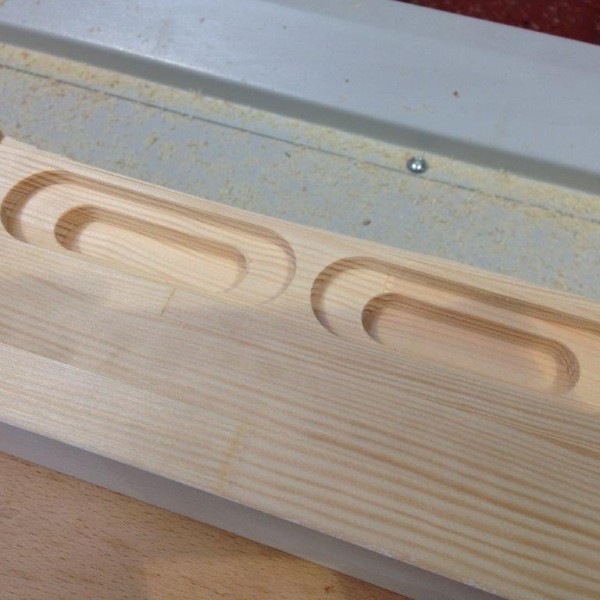

As standard the machine can be equipped with one milling head that automatically moves for either vertical or horizontal machining. It also has interpolation of the axis. Optional additional machining operations include producing a square corner hinge plate recess or lock face recess by means of the additional milling unit.

The operator simply selects in the program if they want a radius or square corner and the machine does the rest. In addition the same milling head can be used to make the small pilot hole for hinge screws etc. There is also the possibility to produce a square end tenon, round end tenon or dovetail / dovetail slot when the special front table is fitted.

Lastly on request the machine can be configured to import ISO files from external design software (e.g ARTCAM Express) to enable detailed engraving of items such as name plates etc.

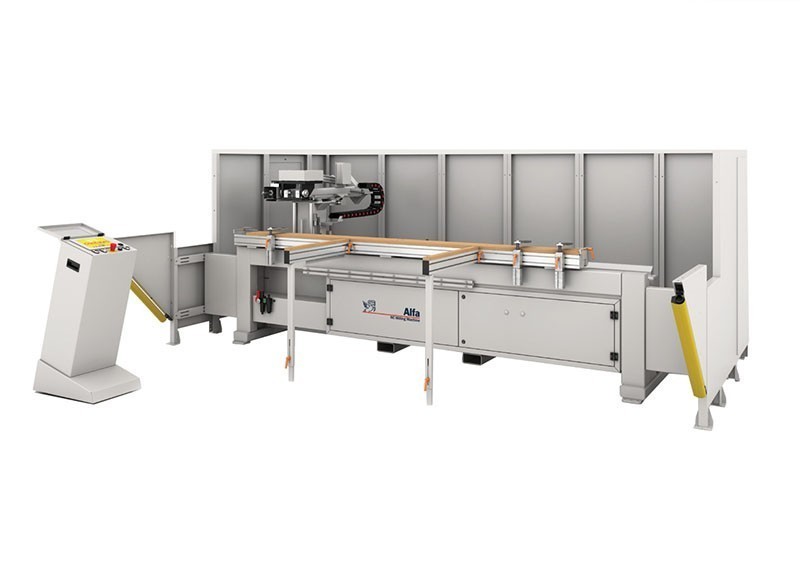

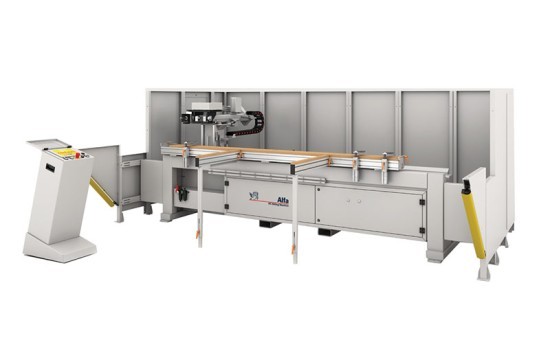

Alfa
Alfa
Specification
  • Axis capacity - X 2800mm, Y 180mm, Z 150mm.
    (2400mm X capacity when optional drilling head fitted).
  • 1 x ER32 collet for milling cutter 16mm max. dia.
  • Max working table dimensions - 3000x618mm
  • X axis positioning speed 35m/min.
  • Y axis / Z axis positioning speed 6m/min.
  • Retractable pneumatic positioning stops 2 off - on front of table
  • Adjustable pneumatic workpiece clamps x 3 - mounted on rear of table.
  • Left hand side ref. stop.
  • Front table extension supports x 2
  • Router motor power 3.3kw.
  • Router motor RPM 0-18,000 rpm.
  • Touch screen controller - Elco Power 1000.
  • Dust extraction outlet 3 x 100mm dia
  • CE side and rear safety guards with front light curtain.
