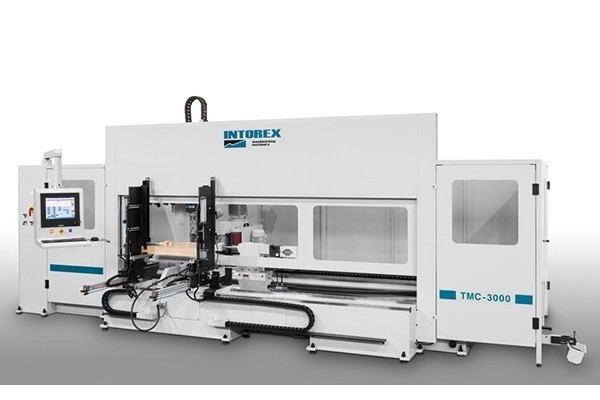

Intorex TMC 5 axis CNC machining centre

A 5 axis between centres CNC with inbuilt sanding and rotory tool changer for shaped or turned furniture or stair parts.

  • Versatile
  • Flexible
  • Shaping, drilling, sanding, turning up to 3m

About this Product

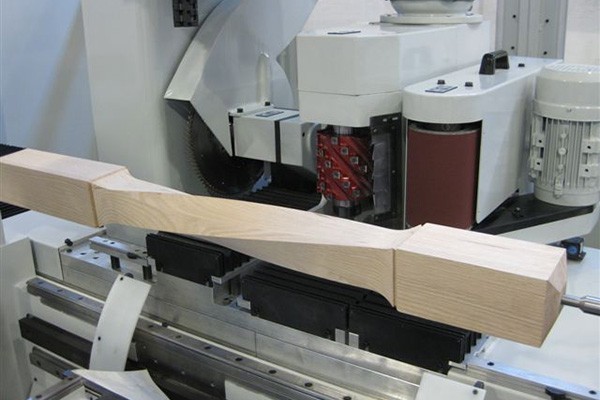

A sophisticated, extremely versatile CNC machining centre capable of producing either turned or shaped furniture and joinery components through 5 interpolated axis. (9 CNC controlled axis in total). As standard the TMC is fitted with an automatic frontal hopper feed loader that delivers the blank between the headstock and tailstock where it is clamped. The machine has the unique 'patented' facility to machine eccentric pieces via an optional special offset centering device. It is equipped with a 'special' sawblade unit for producing a turned section of the component, a milling head for flat machining or stock removal and a sanding head. In addition the TMC has an independent router head with a 10 position rotary tool changer. This can be used for additional drilling, milling and shaping operations. Thanks to the sanding facility it is possible to produce a completely finished component that requires no further work or handling. Once the final machining or sanding operation is complete, the component is ejected on to a transfer exit belt. Components such a newel posts, stair spindles (with modern contemporary design), chair, table and sofa legs can all be produced on this machine. As standard the machine is supplied with leading Solidworks / Solidcam 5 axis 3D software package.

On request the TMC can be supplied / fitted with additional flat bed tables giving the facility of standard 4 axis machining of components. The tables can be either matrix type with vacuum or standard flat table with pneumatic clamps.

On request the TMC can be fitted with an additional standard type small matrix type table (DB version) which can have either a vacuum or mechanical clamping system. This table can be used in addition to the between ctres machining. Obviously this gives the capability to produce even a greater variety of components by just using the CNC router head.

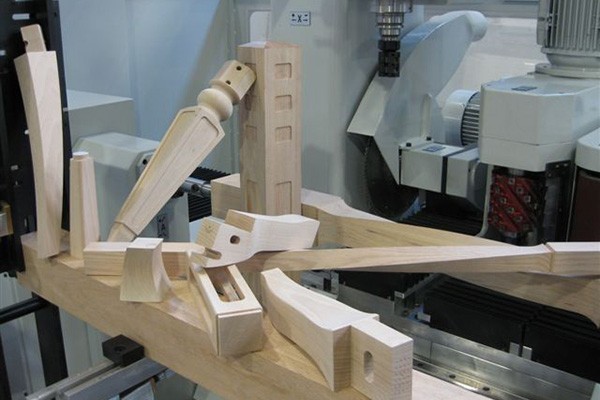

Intorex Tmc 5 Axis Cnc Machining Centre For Producing Shaped Turned Table Chair Legs Sofa Feet Stair Parts And Other Solid Wood Components

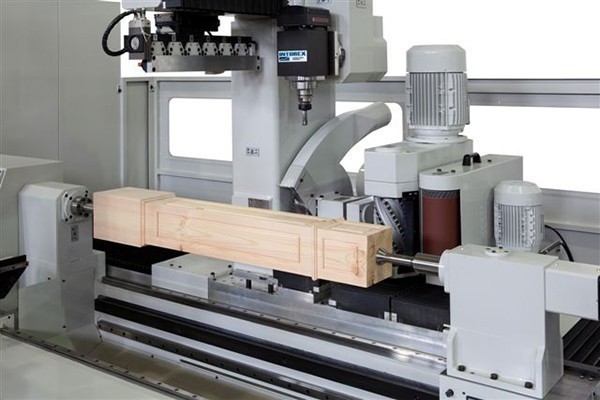

Intorex Tmc 5 Axis Cnc Machining Centre For Producing Shaped Turned Table Chair Legs Sofa Feet Stair Parts And Other Solid Wood Components

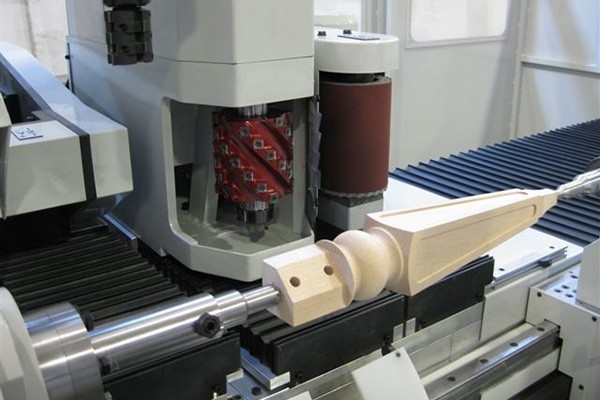

Intorex Tmc 5 Axis Cnc Machining Centre For Producing Shaped Turned Table Chair Legs Sofa Feet Stair Parts And Other Solid Wood Components 2

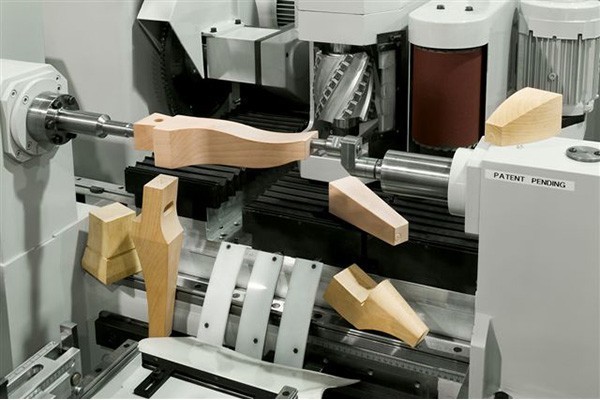

Intorex Tmc 5 Axis Cnc Machining Centre For Producing Shaped Turned Table Chair Legs Sofa Feet Stair Parts And Other Solid Wood Components 3

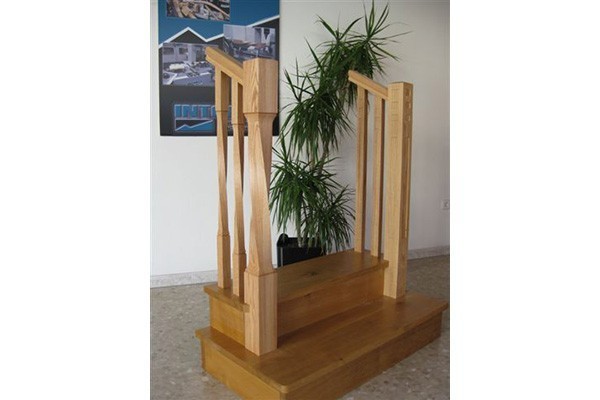

Intorex Tmc 5 Axis Cnc Machining Centre For Producing Shaped Turned Table Chair Legs Sofa Feet Stair Parts And Other Solid Wood Components 4

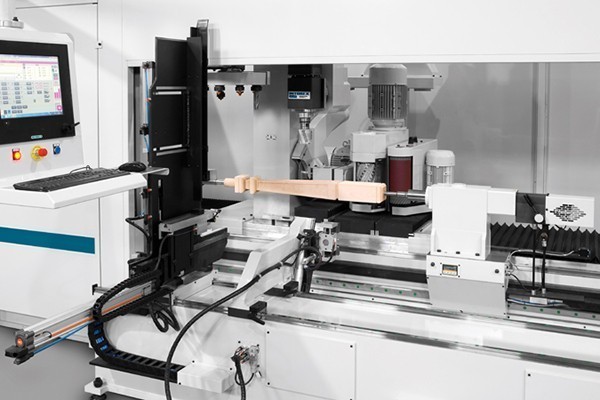

Intorex Tmc 5 Axis Cnc Machining Centre For Producing Shaped Turned Table Chair Legs Sofa Feet Stair Parts And Other Solid Wood Components 5
Intorex Tmc 5 Axis Cnc Machining Centre For Producing Shaped Turned Table Chair Legs Sofa Feet Stair Parts And Other Solid Wood Components 6
Intorex Tmc 5 Axis Cnc Machining Centre For Producing Shaped Turned Table Chair Legs Sofa Feet Stair Parts And Other Solid Wood Components 7
Intorex Tmc 5 Axis Cnc Machining Centre For Producing Shaped Turned Table Chair Legs Sofa Feet Stair Parts And Other Solid Wood Components 8
Specification
  • Machining centre TMC-1500 of 5 interpolated axes with 9 CNC axes installed in all.
  • 1500 or 3000mm capacity
  • A 5 axes SOLIDCAM 3 D package composed of Solidworks (CAD) and SolidCAM (CAM). SolidWorks, allows to design in a very easy and intuitive way any kind of a 3D model, in addition to import a large variety of formats of CAD designs. SolidCAM, enables to machine complex 3D models in a very accurate and efficient way, interpolating 3,4 & 5 axis. SolidCAM 3D package integrates its customized post-processor.
  • Electro spindle (axis B). Electromotor of 12 Kw and rotation speed from 0 to 24000 rpm controlled from the CNC. Automatic change of tools (HSK F63) sand water-cooled
  • Headstock (axis A). Motor of 22'2 Kw with interpolation and positioning at 360º and continuous rotation speed from 0 to 1500 rpm controlled from the CNC
  • Turning or milling headstock with saw blade (axis U) equipped with motor of 11 kw and rotation speed from 2500 to 4500 rpm controlled by inverter (saw blade not included)
  • Shaping headstock with milling tool (axis V) equipped with motor of 11 kw and rotation speed from 1000 to 5000 rpm controlled by inverter (shaping milling tool not included)
  • Sanding headstock (axis W) equipped with motor of 2'2 Kw and speed of 3000 rpm
  • Drum-type tools magazine of 10 positions (axis Q). It has 6 tool-holders cone type HSK F 63 (tools not included)
  • Automatic feeding unit up to sq. 150x150 and length 1500 mm.
  • Unloading unit and extraction of the pieces through conveyor belt
  • Safety guards totally closed composed of: front pneumatic door opening/closing synchronised with working cycle, rear panels and fixed sides. Safety guards complying with EU.
  • Headstock support for interchangeable points
  • Cylindrical headstcok diam. 30
  • Tailstock diam. 15

Weight:

  • 4700kg 1500mm machine
  • 5600kg 3000mm machine
