A 'between centres' heavy duty CNC with 5 interpolated axis and a total of 6 CNC axis in total.
Multiple machining capabilities

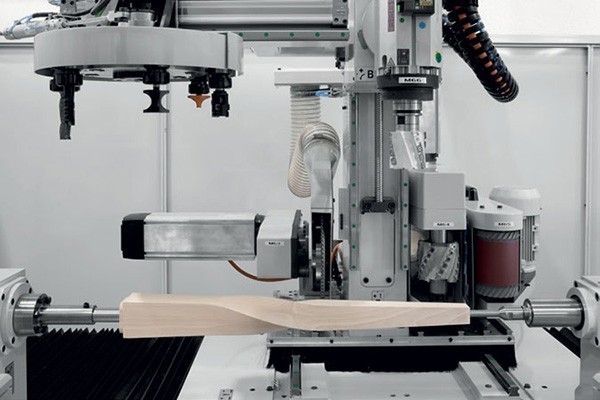

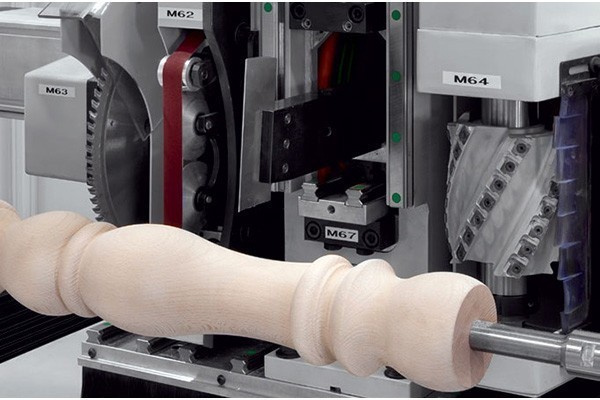

The Intorex TKC is ideally suited to manufacturers producing high-quality furniture, stair components, or other shaped solid wood parts that require multiple machining operations and a finished surface straight from the machine. Its unique combination of turning, shaping, milling, drilling, routing, and sanding capabilities allows complex components such as table legs, chair legs, sofa feet, stair spindles, newel posts, and decorative joinery parts to be produced in a single automated cycle.
Increase productivity and reduce manual handling
Thanks to its 5-axis, between-centres design and automatic hopper feed loading system, the TKC is particularly effective for manufacturers looking to increase productivity, reduce manual handling, and consistently manufacture both traditional turned profiles and contemporary shaped designs with minimal secondary finishing.
Flexible, accurate, and repeatable
The Intorex TKC is an excellent solution for furniture manufacturers, stair part producers, and specialist joinery companies seeking a flexible CNC work centre capable of delivering finished components with exceptional accuracy and repeatability.
A 'between centres' heavy duty CNC with 5 interpolated axis and a total of 6 CNC axis in total.
Multiple machining capabilities
The Intorex TKC is ideally suited to manufacturers producing high-quality furniture, stair components, or other shaped solid wood parts that require multiple machining operations and a finished surface straight from the machine. Its unique combination of turning, shaping, milling, drilling, routing, and sanding capabilities allows complex components such as table legs, chair legs, sofa feet, stair spindles, newel posts, and decorative joinery parts to be produced in a single automated cycle.
Increase productivity and reduce manual handling
Thanks to its 5-axis, between-centres design and automatic hopper feed loading system, the TKC is particularly effective for manufacturers looking to increase productivity, reduce manual handling, and consistently manufacture both traditional turned profiles and contemporary shaped designs with minimal secondary finishing.
Flexible, accurate, and repeatable
The Intorex TKC is an excellent solution for furniture manufacturers, stair part producers, and specialist joinery companies seeking a flexible CNC work centre capable of delivering finished components with exceptional accuracy and repeatability.
Specification

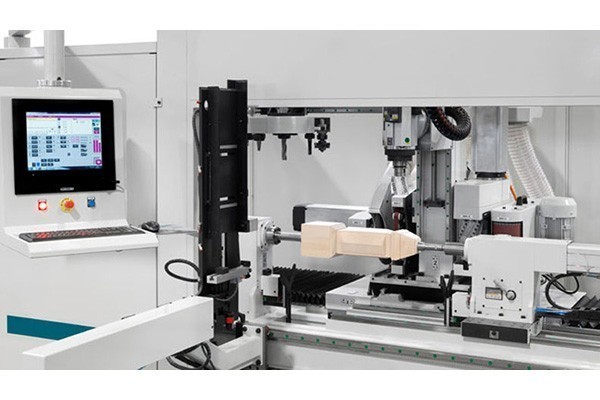

Latest state of the art digital controller on adjustable overhead swing arm
IntorEDIT 3D design software
Automatic hopper feed loading and conveyor for removal machined part
Maximum working length 1500mm
Maximum dia to be machined 230mm
Automatic feeding up to 120mm square
Manual loading up to 160mm square 1000-4500 rpm
Headstock 15.8kw 0-1500mm rpm
Turning head with sawblade 9kw
Shaping / milling head 9kw, 0 to 1500 rpm
Sanding head horizontal 2.2kw, 3000 rpm
Electro spindle (router head)7.5kw, 22000 rpm

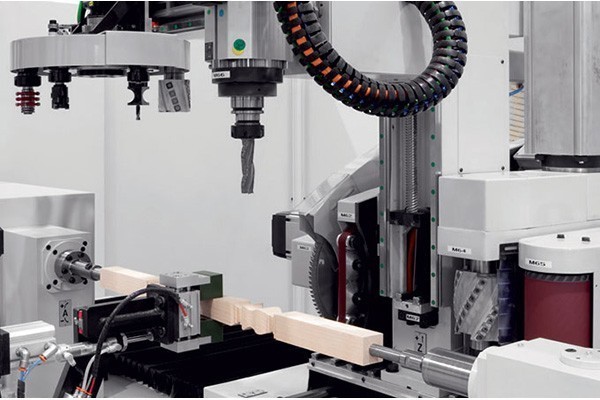

Rotary tool changer 8 position HSKF63
Variable and programmable spindle speeds 3,500
Movement speed of flat sanding belts 0-15 mt/min forward or reverse
Services
Installed power 45 kw
Dust extraction connections 1 x 200mm 1 x 120mm dia at end of conveyor
Air supply 6 bar
Overall dimensions and weights
5300 x 3800 x 3000mm H
Weight 4500kg
Options
Tooling
Vertical sanding belt for turned parts
Special pneumatic steady for thin parts.
