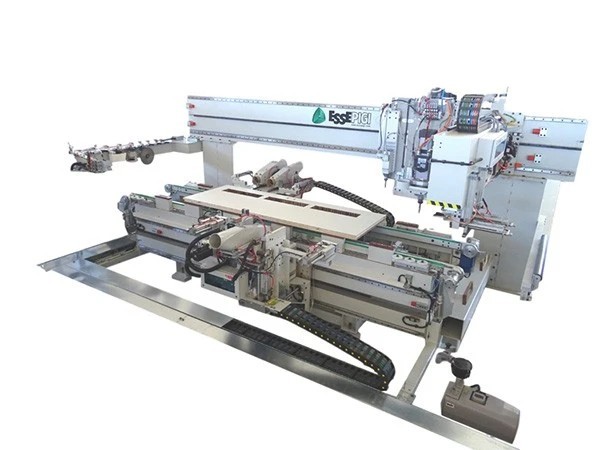

Doormatic Evolution Bridge Thru Feed CNC For the Machining Of Doors

A simple to operate 3 Axis CNC Controlled automatic line for all types of machining required on internal doors.

  • Multiple machining operations
  • Through feed
  • High speed

About this Product

A simple to operate 3 Axis CNC Controlled automatic line for all types of machining required on internal doors.


With the vertical cnc controlled head mounted on cantilever bridge you are able to size the door, cut out apertures, keyhole / handlehole, machine a door seal and closer though aggregate - anything that is possible with standard CNC router but in less time.

Quick setting and postioning between different door sizes thru programme.

Comprising of Motorised infeed thru to Doormatic machine which is fixed with one horizontal heads for milling and counterchip on fixed side for hinges and two horizontal heads on moving side for producing and squaring of lock recess.

HSK 63F Main Milling head with 6 position Toolchanger.

Automatic door width control system thru programme and feeler pin to automatically check width tolerances, with motorised outfeed on back end - this machine is a one stop shop for volume door production, and much quicker than traditional flat bed cnc routers which have been standard issue for this type of work.

Doormatic Evolution Bridge Thru Feed CNC For The Machining Of Doors
Doormatic Evolution Bridge Thru Feed CNC For The Machining Of Doors
Specification

Door Working Dimensions:

  • Max length 2600mm / Min length 1700mm
  • Max width 1200mm / Min length 500mm
  • Total Floorspace required: 9670mm x 4462mm



  • Motorised infeed and outfeed roller tables with sensor to detect presense of panel for automatic feeding.
  • Standard Doormatic Machine.

Fixed Side fitted with:

  • Horizontal milling spindle - 2kw (18,000rpm)
  • 2nd Horizontal Milling head - 0.75kw (squaring / antichip / drilling)

Moving Side fitted with:

  • Horizontal spindle - 5.6kw for main lock seat machining (18,000rpm)
  • 2nd Horizontal milling head - 2kw for quality finish of the lock face recess (18,000rpm)
  • 3rd Milling Head - 0.75kw (squaring / antichip / drilling)



  • Automatic Width Control system thru the Windows PC programme, to ensure the width on the programme corresponds to the dimension of the door on the infeed (to avoid any damages).
  • Feeler pin for the compensation of width tolerances on many different size - this is located on the moving side of the machine and gives and increase of accuracy in the control on the size of "actual door".
  • Vertical feeler pin to accurately measure thickness of door before machining.

Bridge Evolution:

  • HSK63F Vertical Electro Spindle - 12kw 24,000rpm
  • 3 Axis + C axis for Machining top and Bottom of door
  • 6 Position Toolchanger



  • All machining capabilities on door are possible.
  • Vaccum pump / cups to hold door in position whilst machining.
  • Clamps can be used if door does not need to be sized.
  • Conveyor system for waste discharge.
  • Essepigi Software from office.
