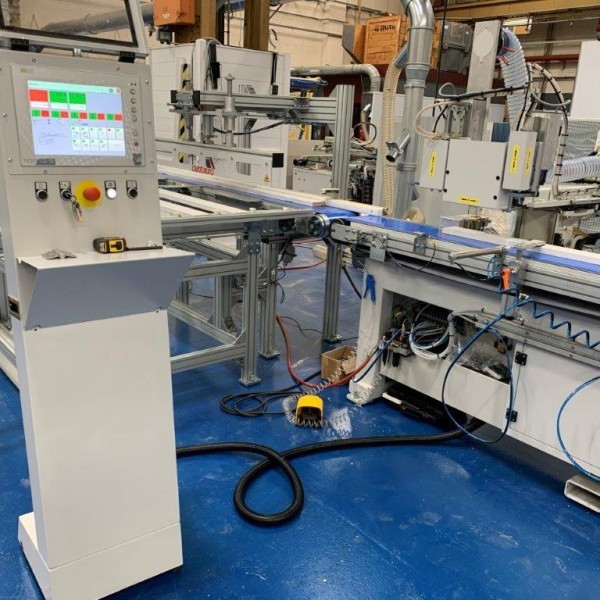

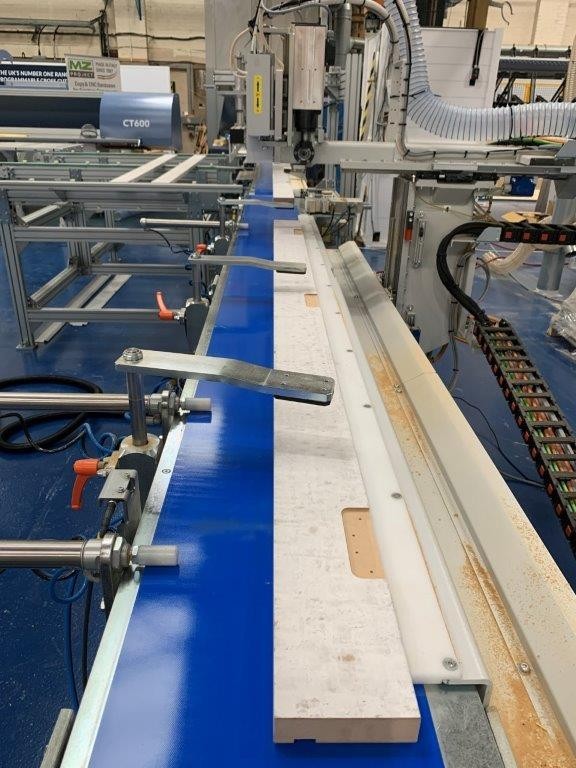

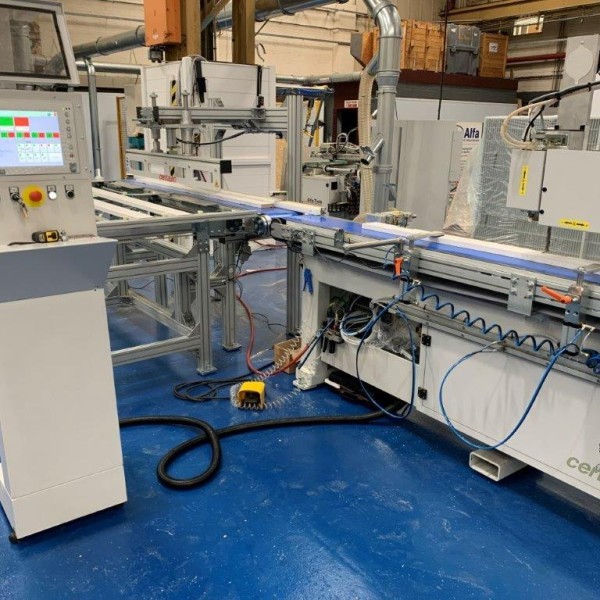

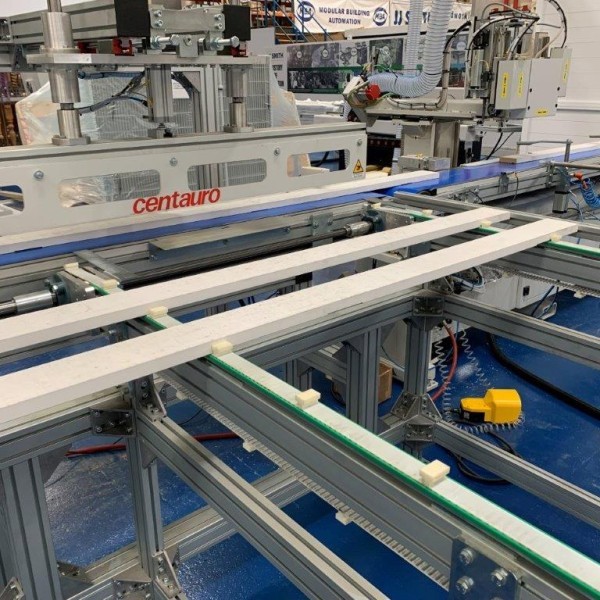

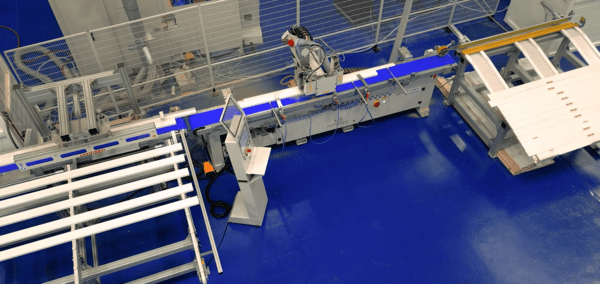

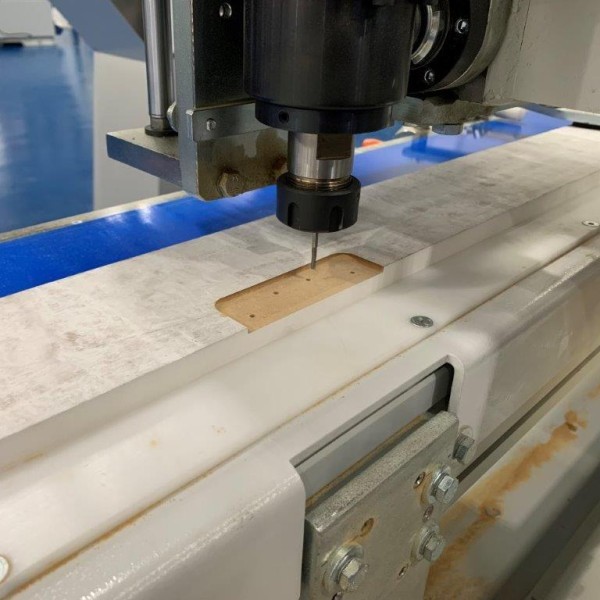

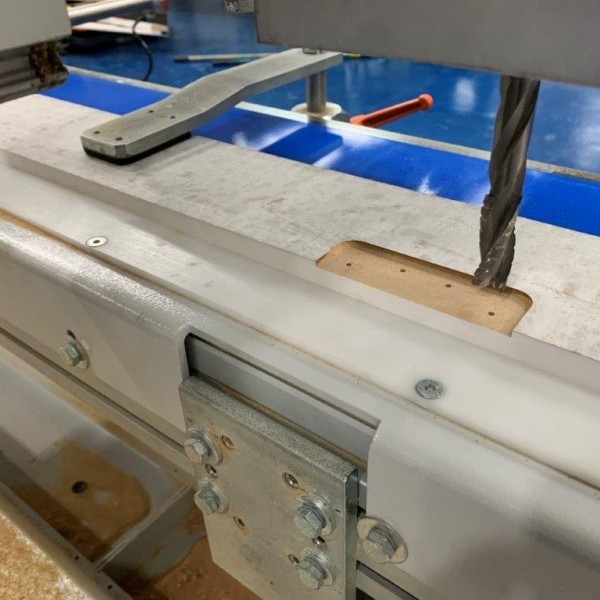

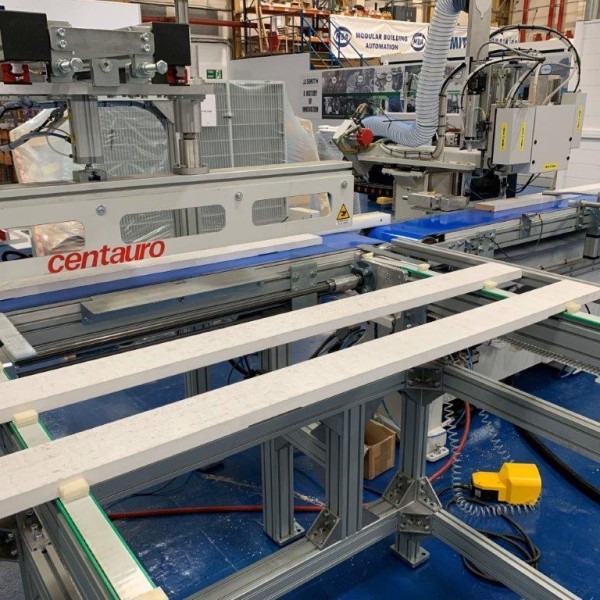

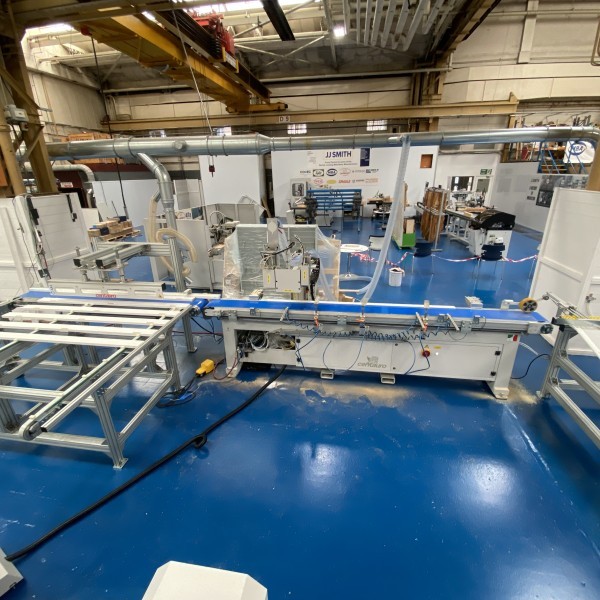

A machine dedicated for the automatic loading, machining and unloading of door frame linings / jambs. The machine is equipped with a CNC router head that can work in the vertical or horizontal for hingeand lock plate recessing or slotting. In addition it has a small router that can be used for spot drilling for hinge screw holes and / or for squaring of the corners of the hinge recess.

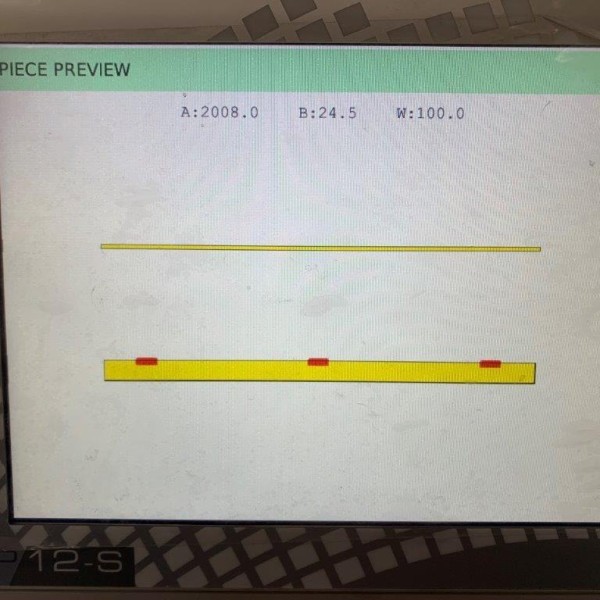

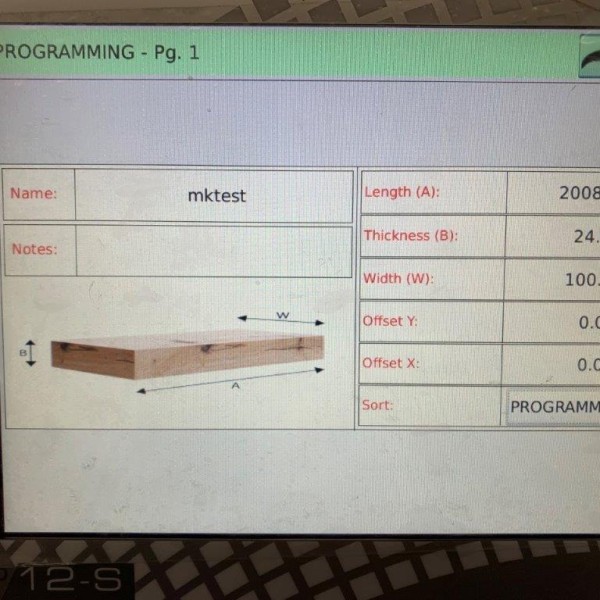

Programming is extremely simple thanks to the latest generation user friendly TOP12-S colour graphic touch screen controller using pre-installed electronic macros.
A machine dedicated for the automatic loading, machining and unloading of door frame linings / jambs. The machine is equipped with a CNC router head that can work in the vertical or horizontal for hingeand lock plate recessing or slotting. In addition it has a small router that can be used for spot drilling for hinge screw holes and / or for squaring of the corners of the hinge recess.
Programming is extremely simple thanks to the latest generation user friendly TOP12-S colour graphic touch screen controller using pre-installed electronic macros.
X Axis stroke 2800
Y Axis stroke180mm
Z Axis stroke 150mm
Suitable for Jamb Dimensions 2400mm x 200mm x 75mm
Router / Milling head 3.3kw, ER25, 0 to 18000 rpm,
Pilot Hole Drilling Head 2.2kw ER 25, 0 to 18000 rpm
3 x pneumatic vertical workpiece clamps, automatically activated through the program
3 x pmeumatic horizontal workpiece clamps, automaically activated through the program
Top 12-S Industrial Touch Screen control 12" with simple Macro Programming.
CE safety perimter guarding to sides / rear with a front light beam curtain
Services:
Total Load 5.6kw
Dust extraction connection 120mm
Pneumatic Supply 6 Bar
Overall dimensions / weights:
9644 x 1844mm
Overall weight 2000kg
