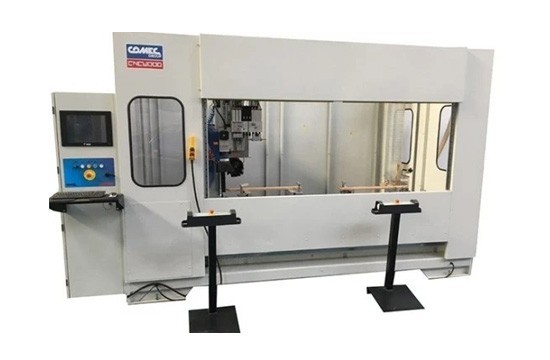

Comec MD Classic CNC Work Centre With 3 Controlled Axis For Slotting, Shaping, Routing And Drilling

A heavy duty programmable CNC machining centre capable of milling, shaping. slotting and drilling.

  • Improve Productivity
  • Improve quality
  • Improve accuracy

About this Product

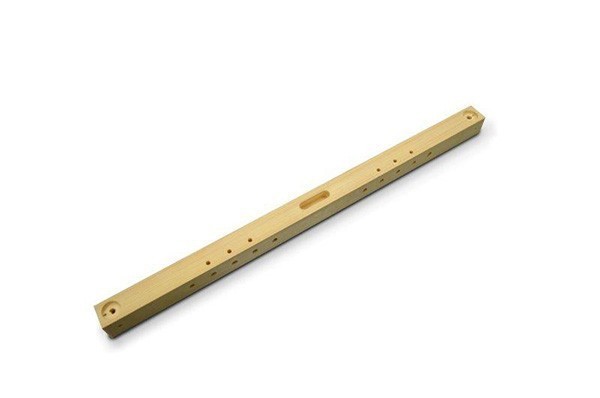

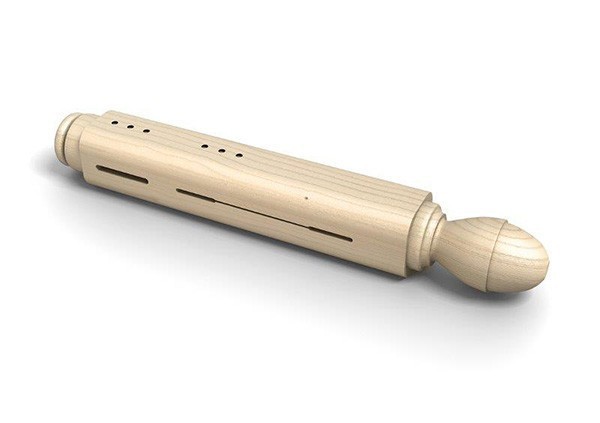

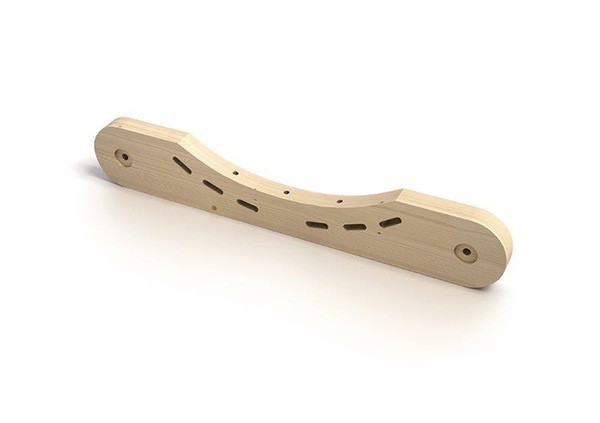

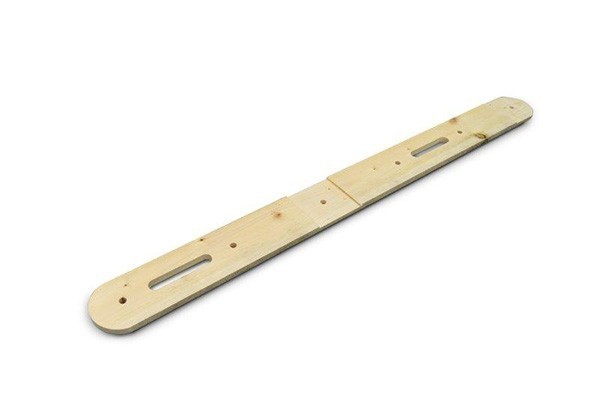

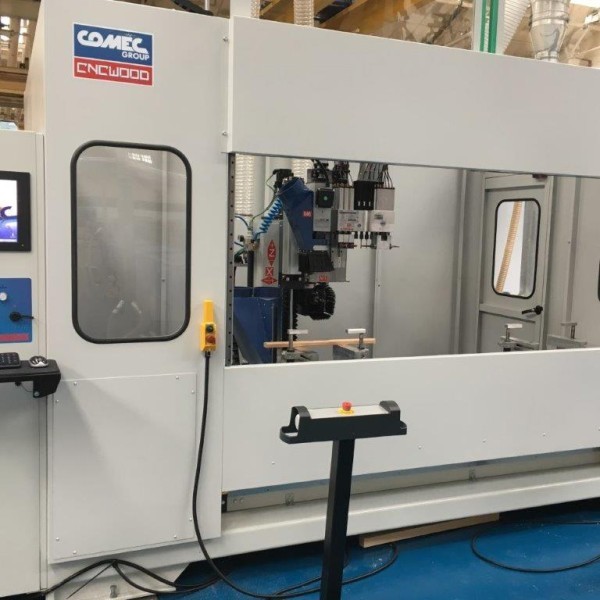

A heavy duty programmable CNC machining centre capable of milling, shaping. slotting and drilling solid wood, MDF, OSB, plywood, chipboard or plastic components etc. The machine frame is of monobloc construction using heavy duty electrowelded steel sheets thus ensuring maximum machining accuracy. The machine is easy to programme through a user friendly interface and touch screen controller. The workpieces are clamped by pneumatic cylinders onto work table benches that can be adjusted along the x axis. All main machine movements on are on precision linear slides, bearings with ball screw drives. For maximum operator safety the machining area is totally enclosed at sides and rear with a CE safety cabin. Access to the loading area is through automatic lifting / lowering of front safety screen/s, with 2 working fields for tandem loading, thus maximising production output.Thanks to the configuration of the vertical and horizontal milling heads, and point to point drilling head this machine has the flexibility to machine a wide range of different parts for garden products, furniture rails for sofa's / chairs, door frames, kitchen frames etc.

Comec Md Classic Cnc Work Centre With 3 Controlled Axis For Slotting Shaping Routing And Drilling
Comec Md Classic Cnc Work Centre With 3 Controlled Axis For Slotting Shaping Routing And Drilling 9
Comec Md Classic Cnc Work Centre With 3 Controlled Axis For Slotting Shaping Routing And Drilling 2
Comec Md Classic Cnc Work Centre With 3 Controlled Axis For Slotting Shaping Routing And Drilling 3
Comec Md Classic Cnc Work Centre With 3 Controlled Axis For Slotting Shaping Routing And Drilling 4
Comec Md Classic Cnc Work Centre With 3 Controlled Axis For Slotting Shaping Routing And Drilling 5
Comec Md Classic Cnc Work Centre With 3 Controlled Axis For Slotting Shaping Routing And Drilling 6
Comec Md Classic Cnc Work Centre With 3 Controlled Axis For Slotting Shaping Routing And Drilling 7
Comec Md Classic Cnc Work Centre With 3 Controlled Axis For Slotting Shaping Routing And Drilling 8
Specification

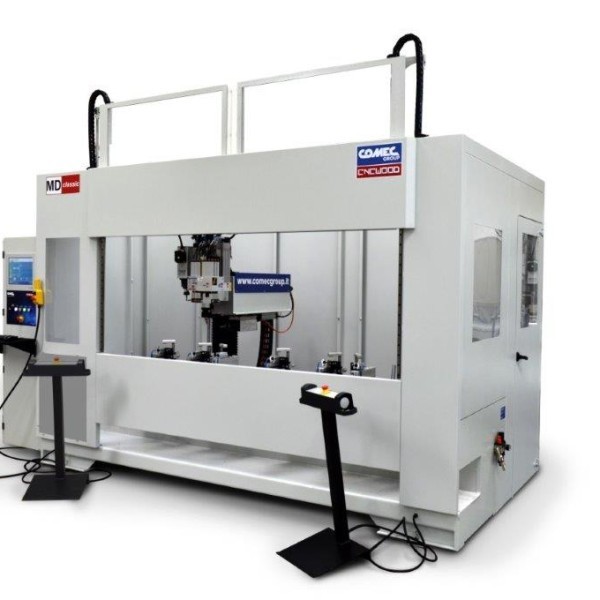

MD CLASSIC 3 MODEL

HIGH PRODUCTIVE DRILLING/MORTISING CENTRE WITH 3 CONTROLLED AXES,
1 HORIZONTAL AND 2 VERTICAL ELECTRO-SPINDLES

FRAME:

  • Heavy duty thick steel plate electro-welded
  • X axis capacity 2050mm (900mm plus 900mm for twin field working option). Y axis 200mm, Z axis 100mm.

WORKING HEAD:

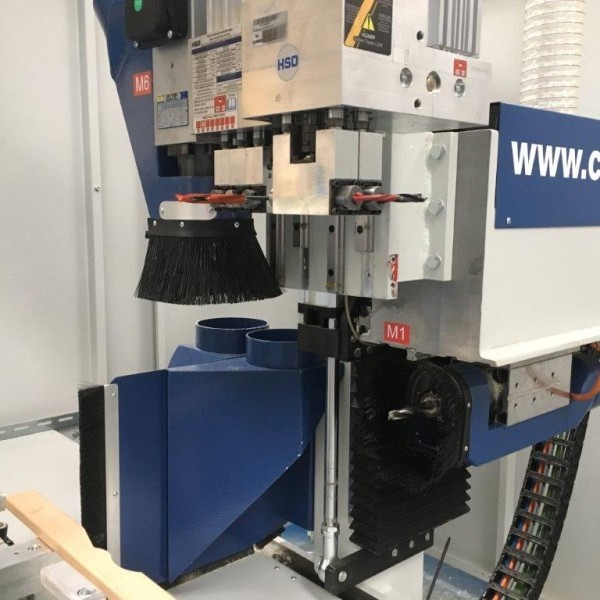

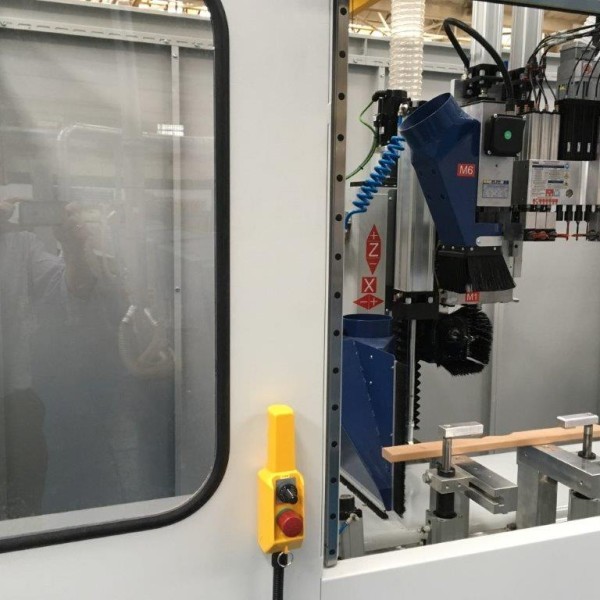

  • Working head with 3 x CNC controlled axis with vertical and horizontal electro spindles. Linear and circular interpolation on 3 axis, X,Y,Z.
  • Max positioning speed 50 mt/min

HORIZONTAL ELECTRO SPINDLES

  • 1 electro-spindle for milling, of kW 5.6 / 12.000-18.000 rpm, equipped with independent inverter.
  • Tool shank with ER 32 collet chuck.

VERTICAL ELECTRO SPINDLES

  • 1 electro-spindle for milling, of kW 5.6 / 12.000-18.000 rpm, equipped with independent inverter.
  • Tool shank with chuck ER 32.
  • 1 electro-spindle for drilling of kW .1.7 / 4.350 rpm, equipped with Point to Point drilling head with following drilling pattern
  • 5 vertical spindles in line along X axis – center distance 32 mm
  • 2 vertical spindles in line along X axis, symmetrical with respect to the first 2 above along Y axis thus forming a square of 4 vertical spindles, all with center distance 32 mm between them
  • 3 double outlet horizontal spindles fitting 3+3 bits for drilling the piece on the operator side and on the opposite side – center distance 32 mm
  • 3 double outlet horizontal spindles fitting 3+3 bits for drilling the piece on the left and right lateral side – center distance 32 mm
  • Tool shank diam. 10 mm.

CN AXES CONTROL

  • Self standing electrical cabinet placed on the left side of the machine
  • Numerical Control specifically studied like control unit for the axes and the functionalities
    of multi-heads drilling/milling machines.

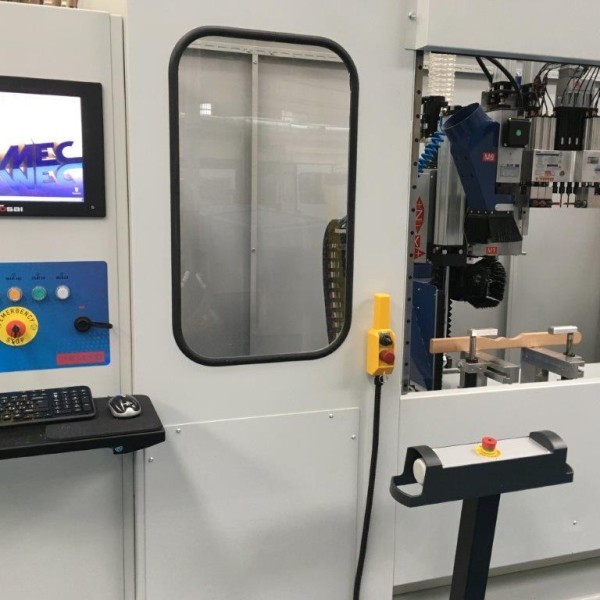

  • Industrial PC for operator interface with colour 17’’ screen with touch-screen.
  • SSD: 120GB - Interface: ethernet/USB/RS232-
  • SOFTWARE 3D read-out of the piece with programmed workings operations
  • Wire net connection possibility for remote programming and assistance
  • Remote console for the machine testing and set-up by the operator

PIECES’ HOLDING BENCHES

  • Pieces’holding bench divided in 3+3 elements adjustables on slides, complete with frontal reference strokes.
  • Manual locking/unlocking and position reading on millimetre line.
  • Working possibility on 2 indipendent working fields (left and right bench) or on just one working field.

SAFETY PROTECTIONS

  • Wire net protection cabin according to CE safety norms with 2 frontal loading doors automatically
    activated and synchronized to working cycle,in transparent polycarbonate.
  • Double remote control.
  • Motorized conveyor belt for evacuation of waste.
  • N°2 suction hoods Ø 120 mm on horizontal electro-spindles.
  • N°1 suction hood Ø 120 mm on vertical electro-spindle.
  • N°2 suction hoods Ø 150 mm on the mobile upright of the working heads
  • Protections according CE safety rules
  • Volt 415/50 Hz

MD CLASSIC 4 MODEL

HIGH PRODUCTIVE DRILLING/MORTISING CENTRE WITH 3 CONTROLLED AXES,
2 HORIZONTAL AND 2 VERTICAL ELECTRO-SPINDLES

All as above above but equipped with additional horizontal spindle

  • 1 electro-spindle for milling, of kW 3.3 / 12.000-18.000 rpm, equipped with independent inverter.
  • Tool shank with ER 32 collet chuck.

Different configurations on request
