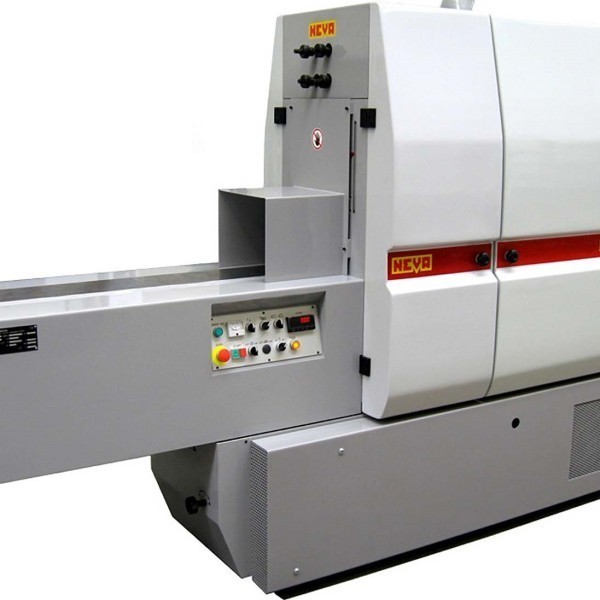

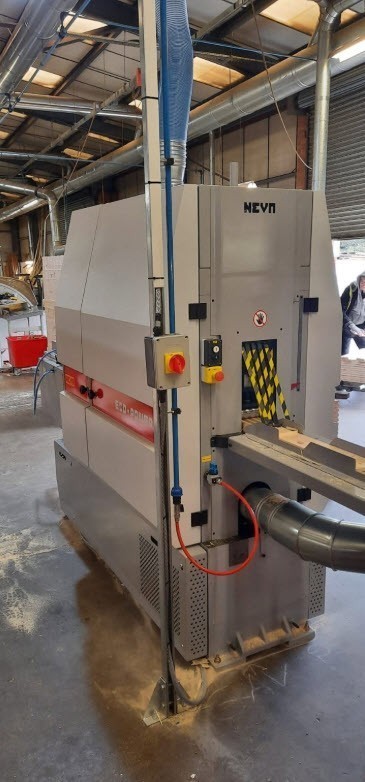

The POWER Plus Thin Cutting Frame Saw was developed to be affordably priced
for companies with medium to small production needs. The machine has a sturdy, solid
cast iron base and is equipped with a 15 kW (20 HP) main motor. The Frame Saw cuts

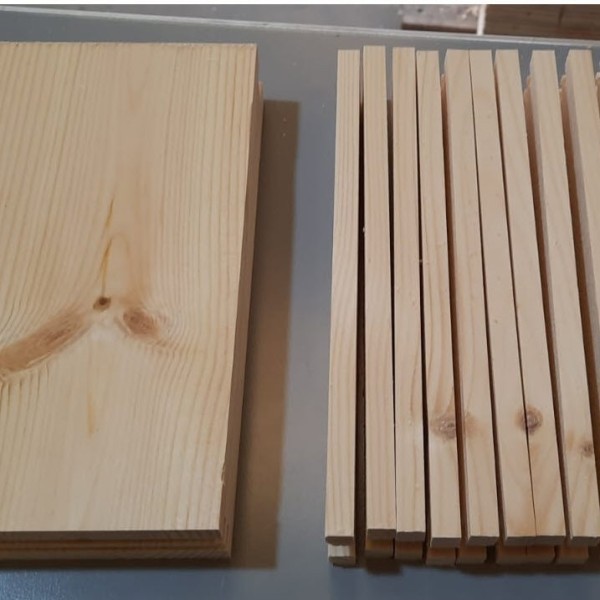

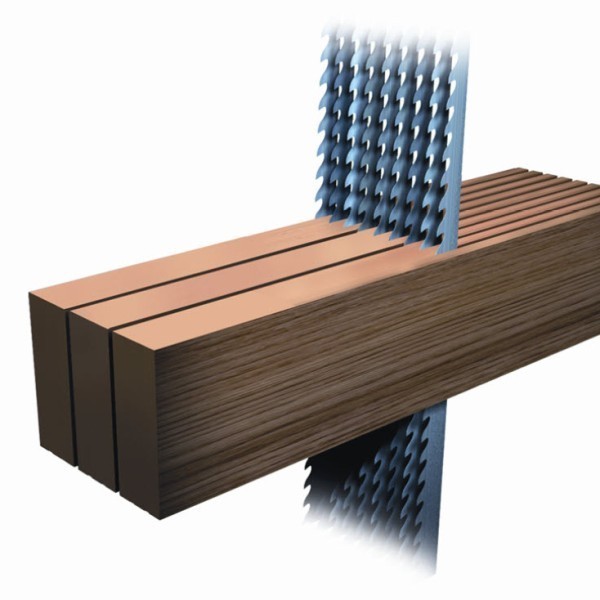

solid wood blocks into glue-able slats with minimum saw kerf waste. The machine can run
products up to 165 mm in width and 250 mm in height. The POWER Plus provides the
smaller manufacturer a high performance and quality machine for the production of their
veneer slats/lamellas; all for an economical price.
Standard Features:
High precision lamellas with gluable surface in tolerance up to ± 0.1 mm, depending
on lamellas width
The "Plus" System is designed for quick set-up and easy adjustment of top
pressure rollers via electrical motor
Air Blast system located directly behind the saw blades keeps the saw blades clean
and prevents heat build-up.
Automatic Opening of the machine for safe and easy removal and installation
of the saw frame.
Sturdy and durable Cast Iron Saw Frame Carriage no play mounted on Linear
Guides.
Feed roller movement is synchronized with the up/down movement of the saw
frame.
Modular Infeed can accommodate a center guide, side guide or channel system.
Chip Breaker prevents splintering on the bottom side of the wood.
Solid cast iron machine construction minimizes vibration.
Top Idle and Bottom Driven Feed Rollers.
Automatic Central Lubrication Unit.
Solid Steel Crank Arms.
On demand Features:
Top and Bottom Planing Module on machine outfeed
Air Jet system for cooling with extra ventilator
Top Planing module on machine infeed
Automatic Hopper Feeder
Wet Way Cutting Option
Blades Tension Master
The POWER Plus Thin Cutting Frame Saw was developed for companies with medium to small production needs. The machine has a sturdy, solid cast iron base and is equipped with a 15 kW (20 HP) main motor. The Frame Saw cuts solid wood blocks into glue-able slats with minimum saw kerf waste. The machine can run products up to 165 mm in width and 250 mm in height. The POWER Plus provides the smaller manufacturer a high performance and quality machine for the production of their veneer slats/lamellas.
The POWER Plus Thin Cutting Frame Saw was developed to be affordably priced
for companies with medium to small production needs. The machine has a sturdy, solid
cast iron base and is equipped with a 15 kW (20 HP) main motor. The Frame Saw cuts
solid wood blocks into glue-able slats with minimum saw kerf waste. The machine can run
products up to 165 mm in width and 250 mm in height. The POWER Plus provides the
smaller manufacturer a high performance and quality machine for the production of their
veneer slats/lamellas; all for an economical price.
Standard Features:
High precision lamellas with gluable surface in tolerance up to ± 0.1 mm, depending
on lamellas width
The "Plus" System is designed for quick set-up and easy adjustment of top
pressure rollers via electrical motor
Air Blast system located directly behind the saw blades keeps the saw blades clean
and prevents heat build-up.
Automatic Opening of the machine for safe and easy removal and installation
of the saw frame.
Sturdy and durable Cast Iron Saw Frame Carriage no play mounted on Linear
Guides.
Feed roller movement is synchronized with the up/down movement of the saw
frame.
Modular Infeed can accommodate a center guide, side guide or channel system.
Chip Breaker prevents splintering on the bottom side of the wood.
Solid cast iron machine construction minimizes vibration.
Top Idle and Bottom Driven Feed Rollers.
Automatic Central Lubrication Unit.
Solid Steel Crank Arms.
On demand Features:
Top and Bottom Planing Module on machine outfeed
Air Jet system for cooling with extra ventilator
Top Planing module on machine infeed
Automatic Hopper Feeder
Wet Way Cutting Option
Blades Tension Master
TECHNICAL SPECIFICATIONS
Stroke 210 mm
Strokes per minute 450
Max. cutting height 250 mm
Max. usable cutting width 155 mm
Min. material length* 185 mm
Saw blade kerf (depends on tools & application) from 0.7 mm to 1.8 mm
Min. slat thickness 1.5 mm according to slat width
Bottom/top driven rollers 11/4
Bottom dust hood ø 160 mm
Top dust hood ø 120 mm
Air speed 25 m/s
Compressed air – min. 6 Bar
Compressed air volume 2 – 10 m³/h
Capacity
Feed Speed 0.2 – 1.5 m/min.
Motors
Main motor 15 kW (20 hp)
Motor to open machine 0.18 kW
"Plus" system motors 0.36 kW
Machine Dimensions
Length 2600 mm
Width 800 mm
Height 2000 mm
Weight 3000 kg
* Minimum material length:
Cutting height up to 80 mm min. length 185 mm - optional equipment
Cutting height up to 150 mm min. length 250 mm
Cutting height up to 250 mm min. length 400 mm
