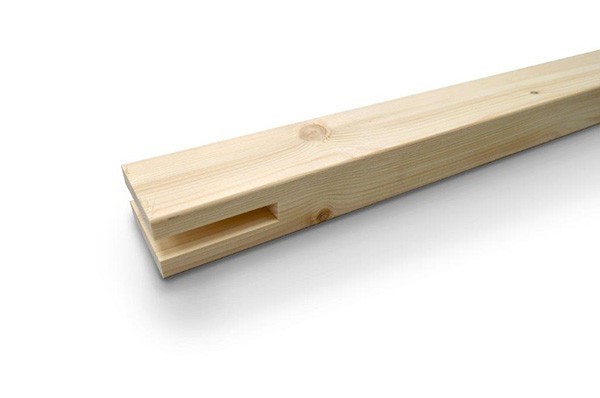

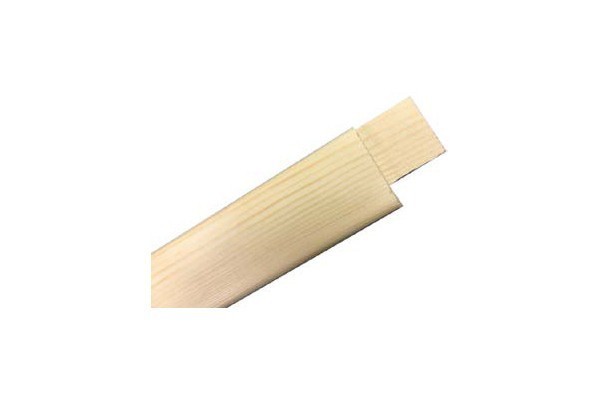

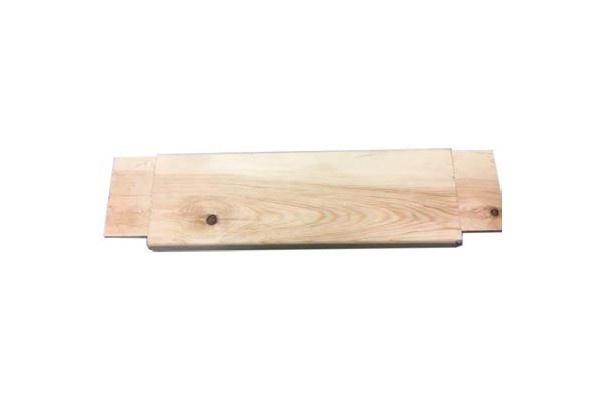

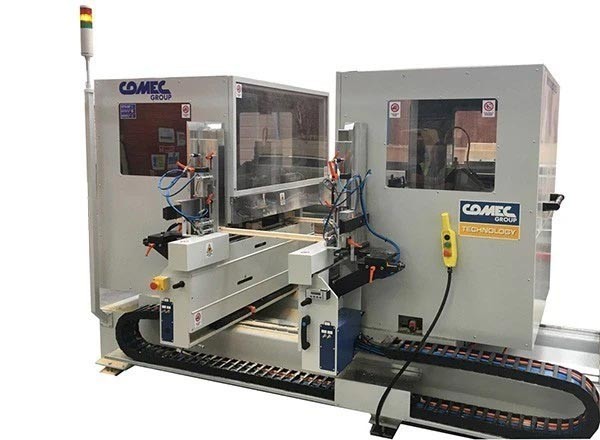

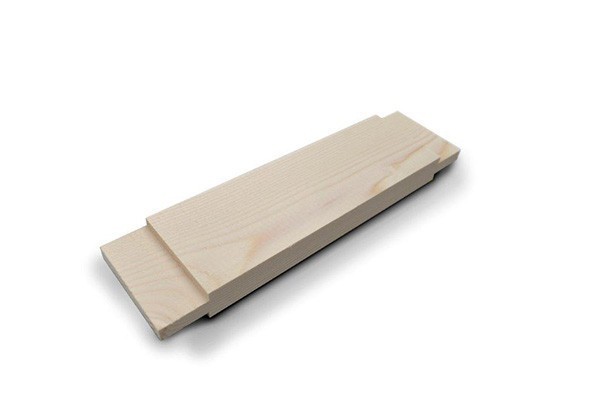

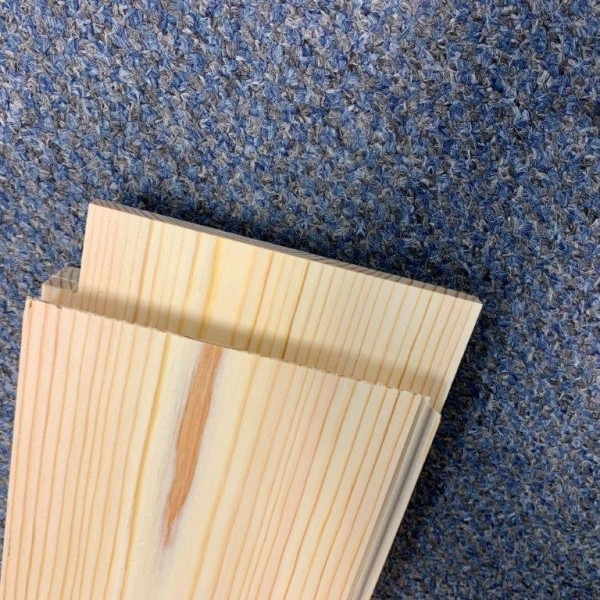

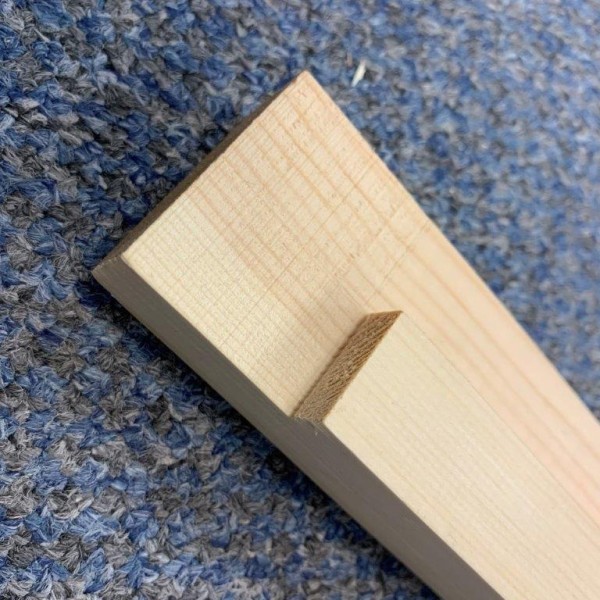

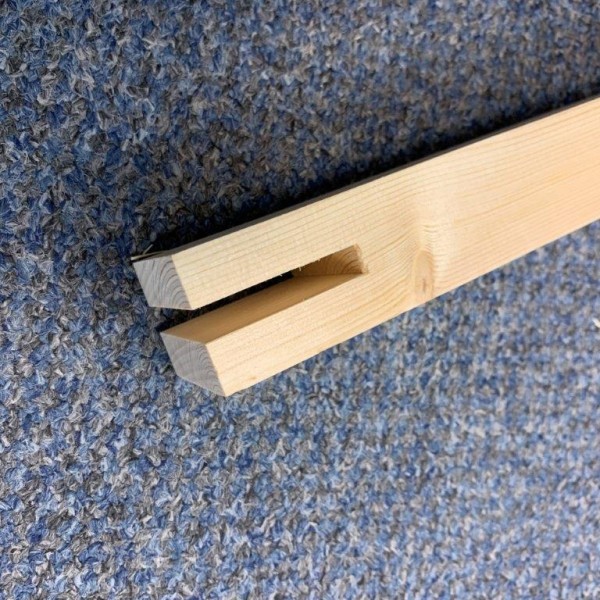

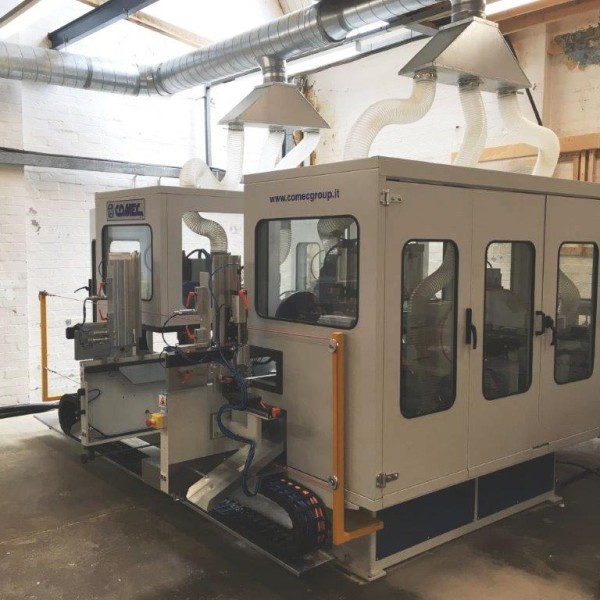

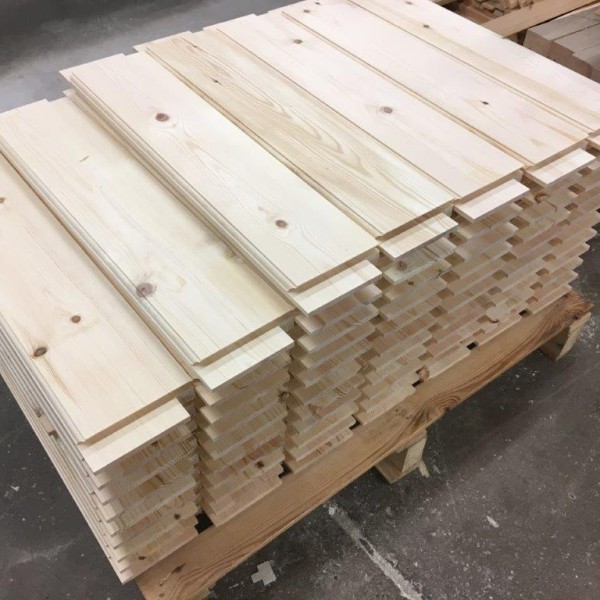

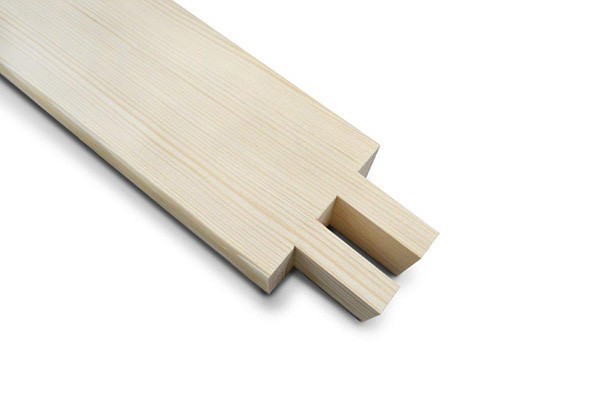

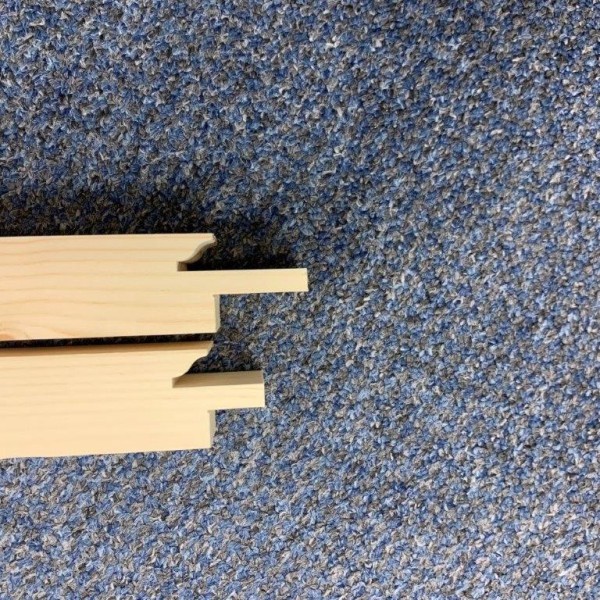

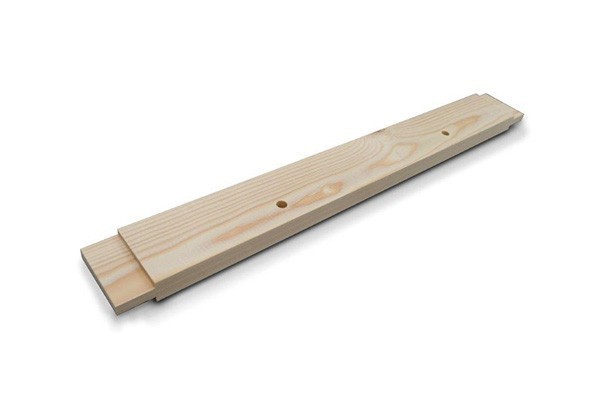

The Comec Frontal Basic is a mechanically set, PLC controlled machine for the volume production of tenoned or haunched window and door frame components.

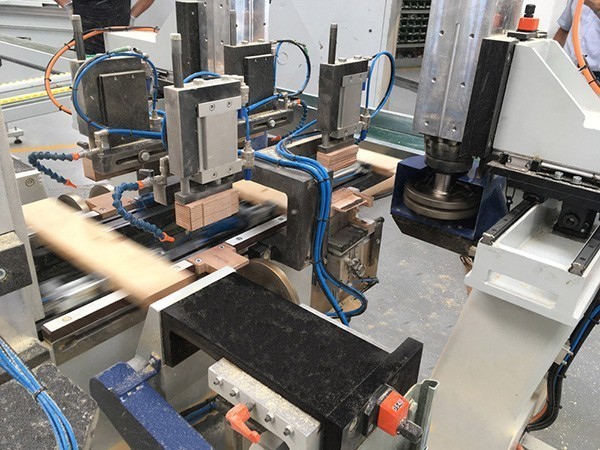

As standard it is equipped with a vertical hopper feed loading system L/H and R/H working units that include cut off saw units for trimming to size, vertical haunching heads and horizontal tenon heads with anti splinter devices.

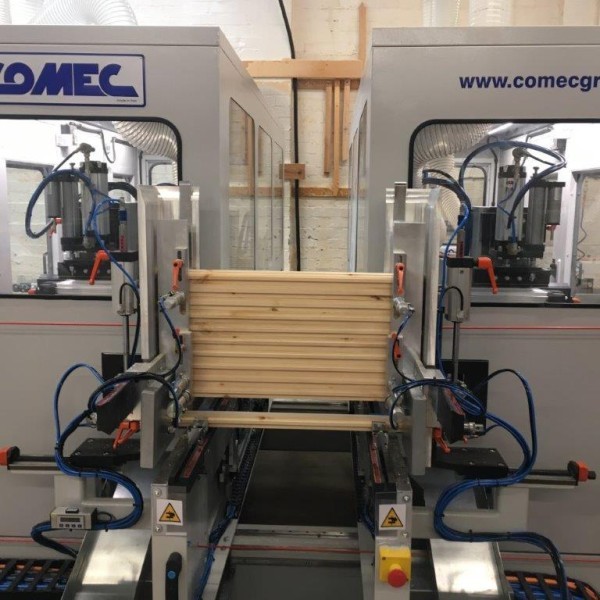

Loading is via a vertical hopper feed, with a piece return system to the operator.
The Comec Frontal Basic is a mechanically set, PLC controlled machine for the volume production of tenoned or haunched window and door frame components.
As standard it is equipped with a vertical hopper feed loading system L/H and R/H working units that include cut off saw units for trimming to size, vertical haunching heads and horizontal tenon heads with anti splinter devices.
Loading is via a vertical hopper feed, with a piece return system to the operator.
Specification
• Maximum working length 2000mm
• Minimum working length 350mm
• Maximum workpiece thickness 60mm
• Minimum workpiece thickness 20mm
• Maximum workpiece width 150mm
• Minimum workpiece width 30mm
• L/H shoulder fixed R/H shoulder moveable to set working length, with LEC readout for positioning
• 1+1 cut off saws 300mm dia blades
• 1+1 vertical milling heads with 4kw motors
• 1+1 horizontal milling heads with 8kw motors

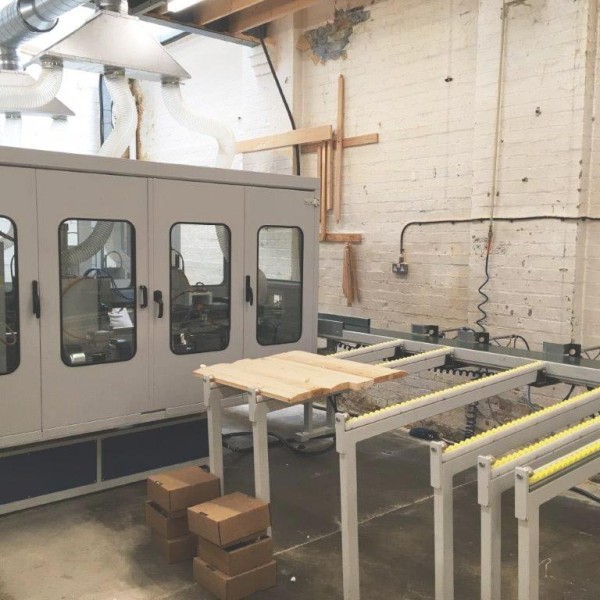

• Pneumatic ejection on to rear lateral conveyor with ejection on to inclined gravity rollers delivering machined parts back to the operator

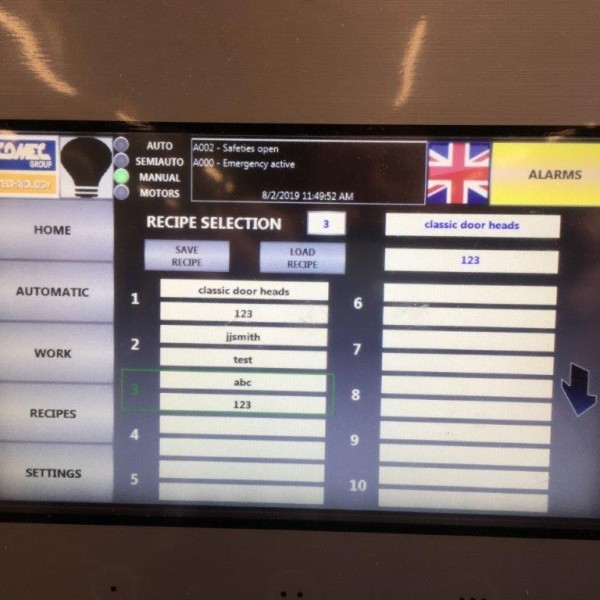

• PLC control for sequencing
• Stand alone electrical control cabinet
Services
• Installed power 55kw
• Dust extraction connection 4 x 120mm – 2 x 150mm
• Pneumatic Supply 6 bar
Overall dimensions and weights
• 6500 x x 4100mm overall floor area
• Weight 3000 kg
