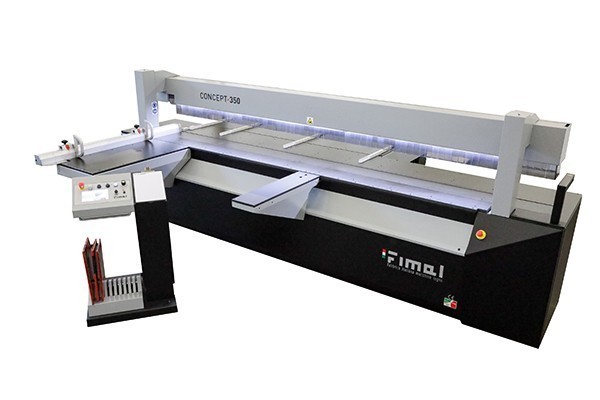

Fimal Concept 350 Beamsaw

Concept 350 Beamsaw has been designed to increase the productivity void between manual panel / wall saws and traditional beamsaws.

  • Simple programming
  • Semi automatic operation
  • Compact in size

About this Product

The Fimal Concept 350 Beamsaw has been designed to increase the productivity void between manual panel / wall saws and traditional beamsaws. Using a heavy duty moving saw carriage, powerful pressure beam and state of the art positioning system, the Concept 350 greatly improves accuracy, operator safety and is up to 3x more productive. The processing of the cut materials can be further automated by using Fimal's cutting-edge board optimisation software which will reduce waste by nesting upto 500 parts and provide the operator with a step-by-step automated cutting sequence.

Fimal Concept 350 Beamsaw
Fimal Concept 350 Beamsaw
Fimal Concept 350 Beamsaw 2
Fimal Concept 350 Beamsaw 3
Fimal Concept 350 Beamsaw 4
Fimal Concept 350 Beamsaw 5
Specification
  • Table Size - 2650mm / 3250mm x 770mm
  • Cut Length - 2600mm / 3200mm
  • Blade Diameter - 300mm / 350mm
  • Cutting Height - 75mm / 100mm
  • Feed Speed - 0-40m/min
  • Blade Motor 7.5HP / 5.5KWHp
  • Ce norms

Standard Equipment:

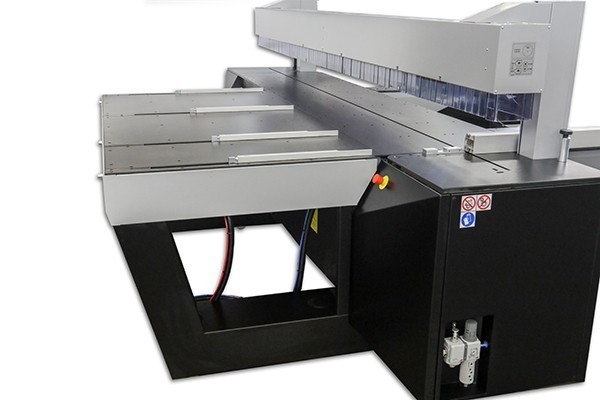

  • Top pressure full length of beam with anti intrusion guards front and rear
  • Automatic star-delta starting
  • Motorised rise and fall of saw blade with digital display

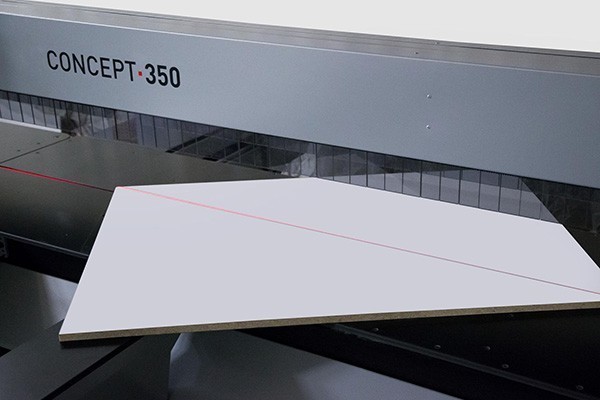

  • Alignment laser
  • Fixed front table 1000mm x 510mm with phenolic coating complete with crosscut fence 2500mm with 1 x sliding length stop.
  • 2 x Sliding support tables 800mm x 200mm with phenolic coating
  • Multistop backfence with 4 rotating stops capable of rip cuts from 1mm - 2000mm
  • Photocell for automatic return of the blade carriage at end of board.
  • 350mm Saw Blade
  • Office Optimising Software (Package "A")

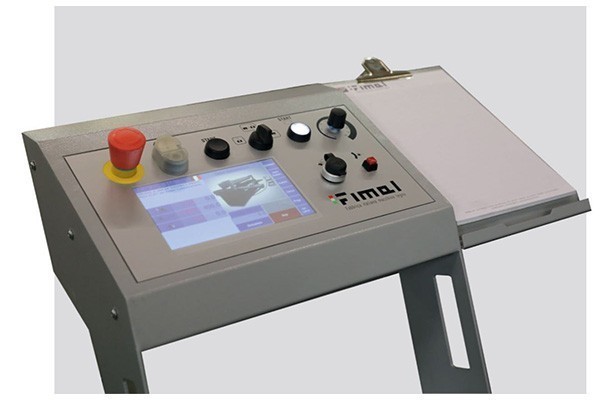

Control Panel on a mobile cart which includes:

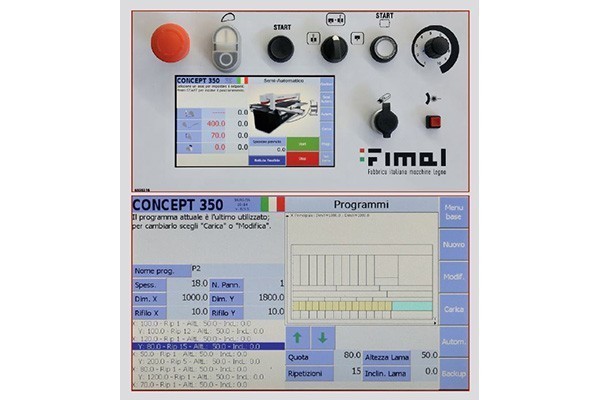

  • 8" Colour touchscreen for programming with manual, semi-automatic and automatic modes
  • USB / Ethernet port for file transfer
  • Windows 10 operating system
  • Digital readout for the visualization of the measurement multistop fence
  • Digital readout for the visualization of the measurement of the tilting blade
  • Digital readout for the visualization of the blade height
  • Emergency stop button
  • Saw start / stop buttons
  • Three positions selector for cut with scoring , cut without scoring and only scoring
  • Start work cycle button
