Graule ZS200 Large Capacity Radial Arm Crosscut Saw

Heavy duty pull over cross cut saw with 5kw motor and 200mm maximum cutting height.

  • Large cutting capacity
  • Heavy duty
  • Numerous options
Graule Video Placeholder

About this Product

A heavy duty German built radial arm crosscut saw with swivel and tilting capability and a large cutting capacity of up to 200mm deep. A unique feature on this model of machine is that when angle cutting is required the saw unit pivots about a central point thus always maintaining the same cutting length. Both optional vertical (tilting) and standard horizontal (swivel) angles can be adjusted manually with either graduated scales or with an optional digital display unit for reading the position. The saw is also available with an optional automatic NC positioning system with 4 memorised pre set positions. The machine is ideally suited for easy and accurate cutting of compound angles for furniture and joinery components. The machine can be specified to cut wood, aluminium, plastics or composite materials.

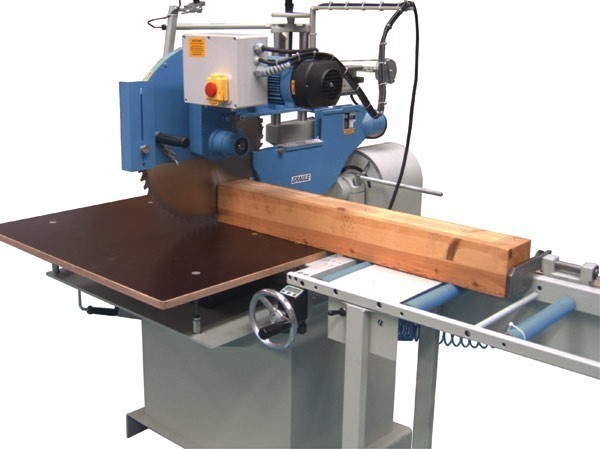

Graule ZS200 Radial Arm Crosscut Saw For Aluminium
Graule ZS200 Radial Arm Crosscut Saw For Aluminium
Specification
  • Precision ball bearing movement on hardened steel runners.
  • Sturdy cast iron construction with steel base stand
  • Heavy duty 5 KW motor.
  • Spring return of saw carriage.
  • 1 x 520mm dia TCT x 4.4mm kerf x 50mm bore - 60 teeth WZ saw alternate bevel.
  • 50mm spindle diameter.
  • 22 - 90 - 45 horizontal movement. (Swivel)
  • 30 - 90 - 60 vertical movement. (Tilt - optional N model)
  • Adjustable upper protection.
  • 520mm TCT sawblade Z60.

Cutting Capacity:

  • 420 wide x 200mm deep at 90 degrees.
  • 295 wide x 200mm deep at 45 degrees.
  • 420 wide x 140mm deep at 45 degrees. (Tilt- optional N model).
  • Dust extraction outlet 100mm.
  • Working height of table 900mm
