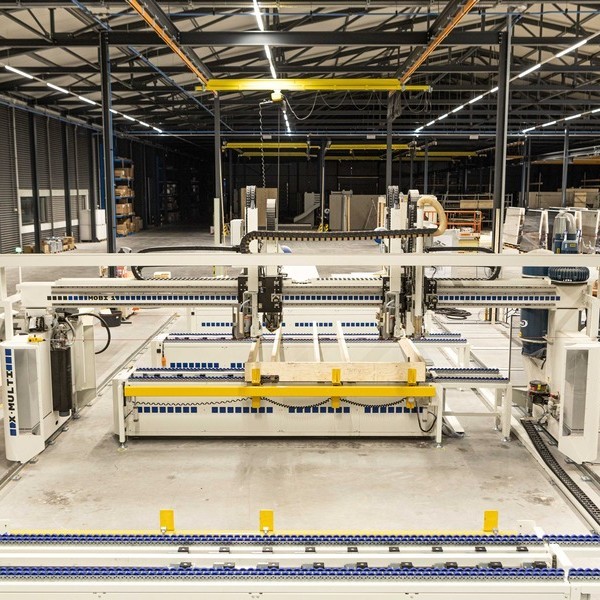

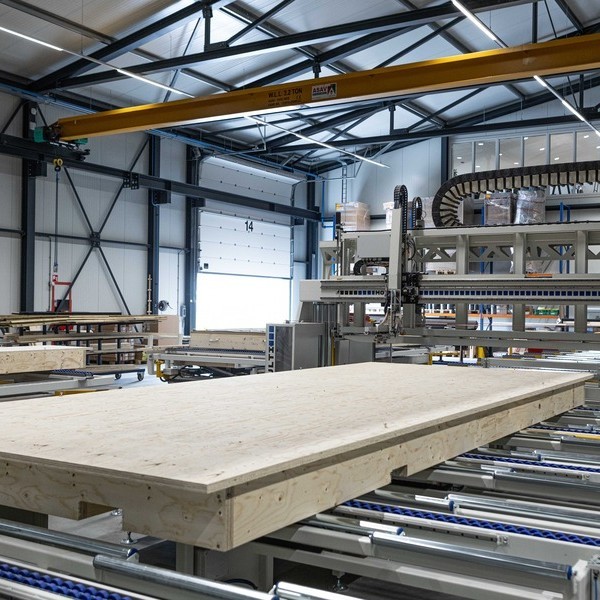

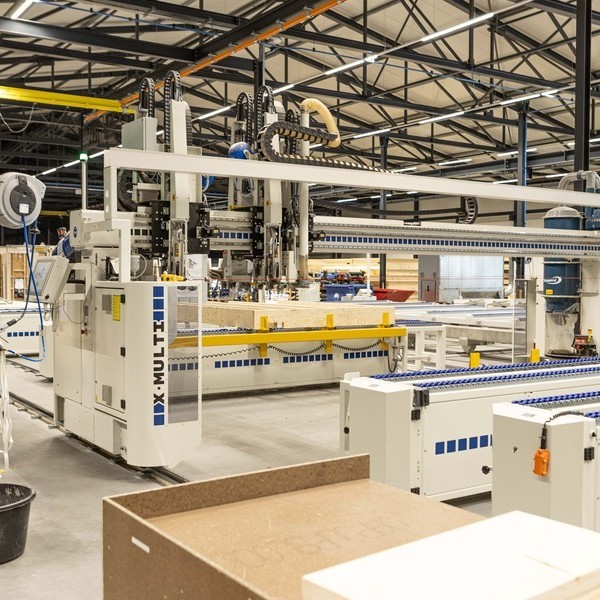

MBA - X-Multi - Multifunction Bridge

Full PC control with 17” touchscreen

Interactive display of operation being performed

Automatic download from drawing software

Heavy duty tables with one fixed side and one moving side

90-degree squaring corner blocks with pneumatic retraction to enable the panel to move to the next position when finished

1300mm minimum panel height

Maximum panel height up to 3.5m (optionally extendable)

Maximum panel length 6m – optionally up to 13m

400mm wide heavy-duty work tables

825mm working height

300mm maximum panel thickness (optionally 5000mm)

Motorised table opening with automatic brake locking

Bridge mounted with one nailing/stapling tool mounting as standard. (Options for 2 or 3 nailing tool mounts)

Full integration with major software packages including Sema, Dietrich's, HsbSoft, CADWORKS, Gang Nail &, Mitek.

Batten application system with a guide to ensure the battens are kept straight before nailing including batten storage area

Pneumatic lifting rollers to assist in the manual transporting of the finished panel to the next position.

Optional electrically driven sheet feeding system

including automatic sheet feeding and height indexing of the support table.

Optional router unit with 4kw motor - servo drive controlled
