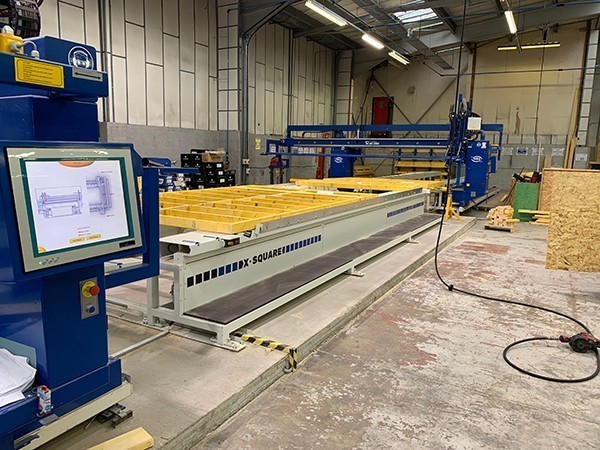

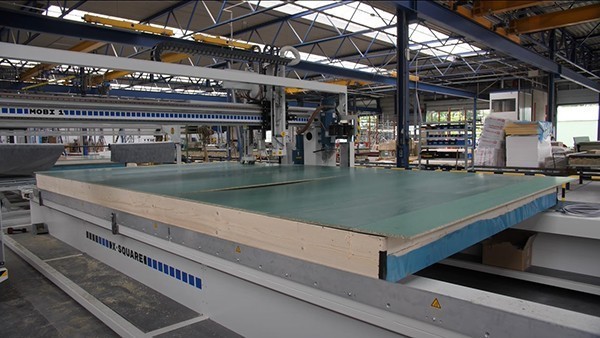

MBA Timber Frame Squaring Station

About this Product

A squaring station for the application of cladding material to a pre assembled frame


Heavy duty table for the resquaring of frames prior to initial fixing of sheet materials Automatic width adjustments with self squaring facilities Ergonomic design for ease of operator working

Automatic width adjustments

Self squaring facilities

Ergonomic design for ease of operator working

Specification

Heavy Duty tables with one fixed and one moveable side for the squaring of a pre-manufactured panel for the application of OSB or Plywood

Range of opening is configured when installed with a 1500m movement

Minimum opening 1500mm

Maximum opening 3000mm (optionally 3500mm)

Working height 825mm

Width adjustment motorised with locking system

85mm high bar for panel clamping along the full length of the station.

Automatic panel squaring and clamping including 3 way clamping

Swing gates for easy access through the line

Options
