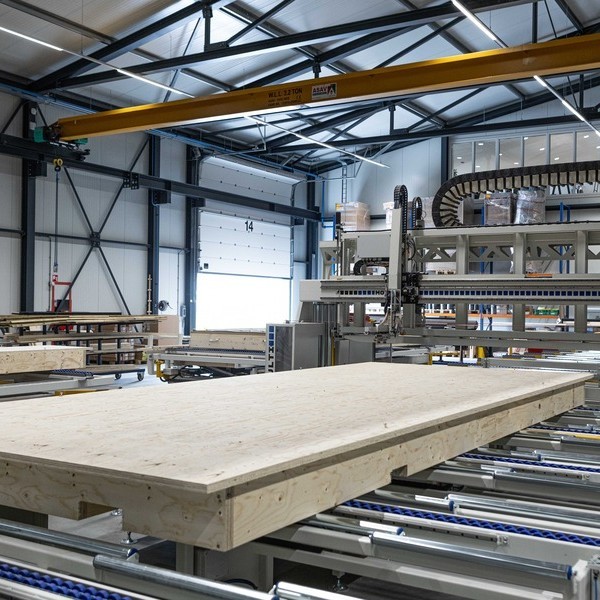

The H&M X-Multi is an automated system for securing sheeting and cladding in offsite and modular timber frame construction.
It can be installed on a dedicated table or floor mounted rails to traverse multiple tables or stations, performing precise nailing/stapling based on CAD data via Design2Frame software. With one or two CNC carriages, it handles multiple tools simultaneously to boost throughput, and gluing systems can be added for flooring applications.

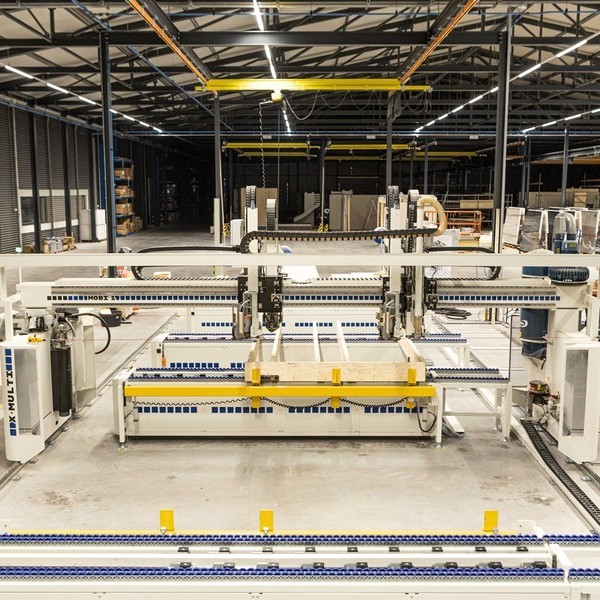

The X-Multi features walk-through operation for easy panel transfer, and has a range of options available for applications such as cladding fixing, batten fixing, tool changing, exterior cladding finishing and motorised transfer.
The H&M X-Multi is an automated system for securing sheeting and cladding in offsite and modular timber frame construction.
It can be installed on a dedicated table or floor mounted rails to traverse multiple tables or stations, performing precise nailing/stapling based on CAD data via Design2Frame software. With one or two CNC carriages, it handles multiple tools simultaneously to boost throughput, and gluing systems can be added for flooring applications.
The X-Multi features walk-through operation for easy panel transfer, and has a range of options available for applications such as cladding fixing, batten fixing, tool changing, exterior cladding finishing and motorised transfer.

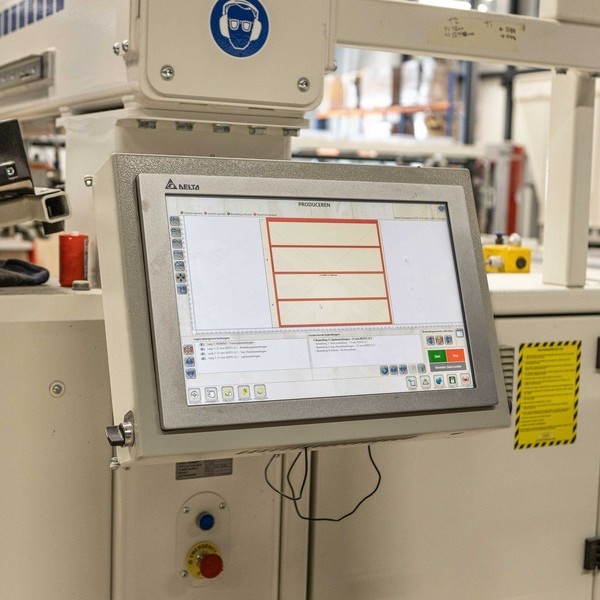

Full PC control with 17” touchscreen

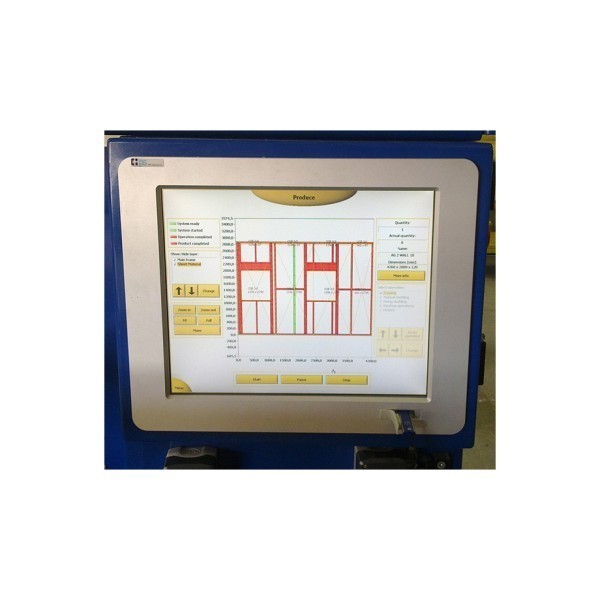

Interactive display of operation being performed
Automatic download from drawing software
Heavy duty tables with one fixed side and one moving side
90-degree squaring corner blocks with pneumatic retraction to enable the panel to move to the next position when finished
1300mm minimum panel height
Maximum panel height up to 3.5m (optionally extendable)
Maximum panel length 6m – optionally up to 13m
400mm wide heavy-duty work tables
825mm working height
300mm maximum panel thickness (optionally 5000mm)
Motorised table opening with automatic brake locking

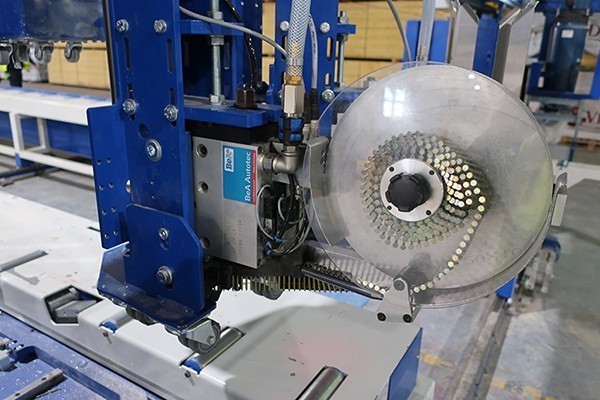

Bridge mounted with one nailing/stapling tool mounting as standard. (Options for 2 or 3 nailing tool mounts)
Full integration with major software packages including Sema, Dietrich's, HsbSoft, CADWORKS, Gang Nail &, Mitek.
Batten application system with a guide to ensure the battens are kept straight before nailing including batten storage area
Pneumatic lifting rollers to assist in the manual transporting of the finished panel to the next position.
Optional electrically driven sheet feeding system
including automatic sheet feeding and height indexing of the support table.
Optional router unit with 4kw motor - servo drive controlled
