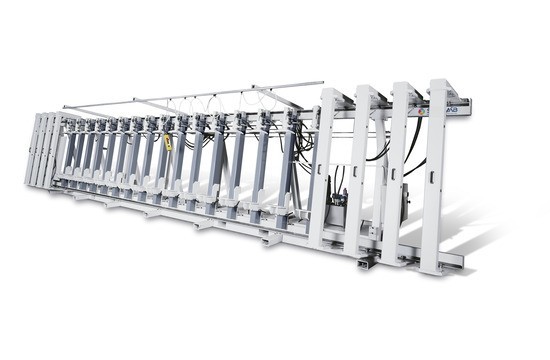

Electrohydraulic clamping machine for the production of structural plywood beams (max. width 200 mm.).
Small footprint with front loading
wide range of sizes
from 3000 mm. to 20000 mm. Fixed vertical beams
adjustable-height timber rests.
High-performance hydraulic cylinders (max. thrust 7200 kg.)
sliding hydraulic front pressure bars.

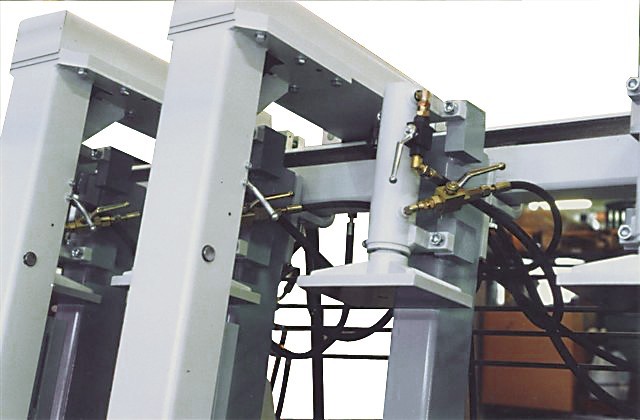

Hydraulic cylinders with independent open/close valves.
Lengthwise-sliding hanging control panel.
Single-sided with 2 fixed vertical beams for each metre of working space
1 hydraulic front pressure bar every metre
Actual working lengths from 3000 to 20000 mm.
Actual working height mm.1200.
Electrohydraulic clamping machine for the production of structural plywood beams (max. width 200 mm.).
Small footprint with front loading
wide range of sizes
from 3000 mm. to 20000 mm. Fixed vertical beams
adjustable-height timber rests.
High-performance hydraulic cylinders (max. thrust 7200 kg.)
sliding hydraulic front pressure bars.
Hydraulic cylinders with independent open/close valves.
Lengthwise-sliding hanging control panel.
Single-sided with 2 fixed vertical beams for each metre of working space
1 hydraulic front pressure bar every metre
Actual working lengths from 3000 to 20000 mm.
Actual working height mm.1200.
Working length capacity, 3000mm, 4000mm, 6000mm, 8000mm ( price on request for above 8000mm ).,Max section capacity 1200mm wide x 200mm thickness,6, 8, 12 or 16 vertical hydraulic cylinders to match above length capacity frames respectively.,Thrust for each cylinder 7200 kg.,11 kg per sq. cm on a beam width of 120mm.,7.3 kg per sq. cm on a beam width of 200mm.,3, 4, 6 or 8 front hydraulic pressure clamps to match the above length capcacity frames respectively,Hydraulic pack - 7.5hp motor
Additional hydraulic front pressure clamps,Modification to suit widths of beams up to 250mm,Extra working length - price on application
