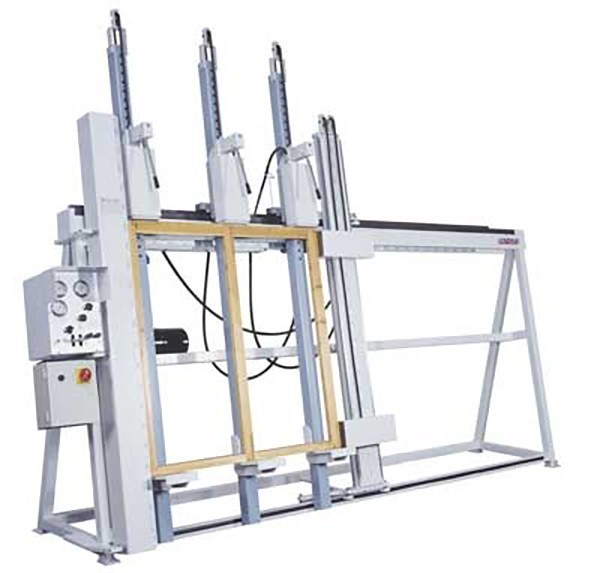

A vertical hydraulic frame cramp for windows and doors.
The vertical beams easily slide from side to side while the vertical and horizontal clamping cylinders have quick locking mechanisms and counter balance weights for easy and quick setting.
A vertical hydraulic frame cramp for windows and doors.
The vertical beams easily slide from side to side while the vertical and horizontal clamping cylinders have quick locking mechanisms and counter balance weights for easy and quick setting.
3m x 2m capacity
Vertical frame cramp with one fixed and one moveable longitudinal pressure beam.
3 x Vertical beams each with hydraulic cylinder with 150mm stroke. Each with spring balance unit.
2 x Horizontal hydraulic pressure cylinders with 120mm stroke, positioned on moveable longitudinal pressure beam.
3 x vertical beams fitted with adjustable lower support plates
Hydraulic controls for vertical / horizontal clamping pressure and clamping activation positioned on the left hand of the machine
Hydraulic pump unit with 1.5hp motor.
Thrust for each cylinder KG 2500
