Graule ZS200 Radial Arm Crosscut Saw for Aluminium

About this Product

A German built and designed crosscut saw for straight and angled cutting of aluminium components. The saw specification is ideal for cutting aluminium sections and profiles that require both accuracy and quality of cut, A unique feature of the machine is that when angle cutting is required, the saw unit pivots about a central point lacated at the fence, thus maintaining the same cutting length. Although compact in design the saw has a large cutting capacity.

The machine comes as standard with pneumatic lubrication system, vertical pneumatic clamps and hydraulic stroke damper ( hydrocheck ) to saw stroke. The saw can be fitted with a number of options including digital readouts to swivel and / or tilt (N model), 2 hand start automatic head stroke, and upgraded 3kw saw motor.

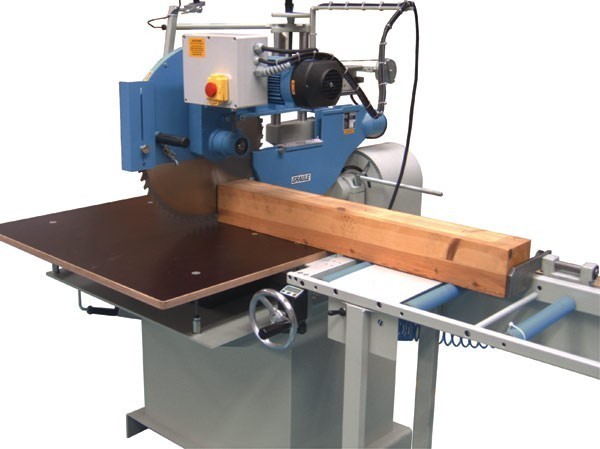

Graule ZS200 Radial Arm Saw
Graule ZS200 Radial Arm Saw

A German built and designed crosscut saw for straight and angled cutting of aluminium components. The saw specification is ideal for cutting aluminium sections and profiles that require both accuracy and quality of cut

Sturdy cast iron construction with steel base stand.

Motor 3kw.

Spring return of sawcarriage.

Specification

Precision ball bearing movement on hardened steel runners.

Sturdy cast iron construction with steel base stand.

Motor 3kw.

Spring return of sawcarriage.

Hydrocheck to saw stroke

Pneumatic lubrication of saw blade

Pneumatic vertical clamps

520mm max. sawblade dia.

50mm dia spindle dia.

45 - 90 - 25 degree horizontal movement (swivel)

Adjustable upper protection

TCT sawblade 520 x 108 teeth for Aluminium

Cutting capacity:

420mm x 200mm deep at 90 degrees.

320mm wide x 200mm deep at 45 degrees (swivel).

Dust extraction outlet 100mm

'N' model with vertical tilting. 90-45 degrees tilt to left.with crank handle from back.
