Deltawood Model LB3 3 Head Swing Chisel Mortiser - 2021 CE

About this Product

Automatic mortising machine with 3 heads ideal for mortising of doors, gates, gate posts, general joinery

Worktable dimensions 3000 x 300mm

Cast iron construction to give maximum rigidity

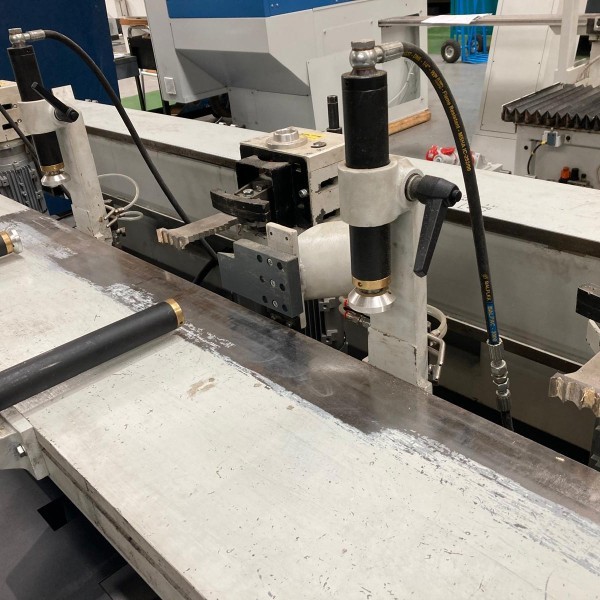

3 x vertical hydraulic work piece clamps

3 x horizontal hydraulic work piece clamps

Speed movement is adjustable through hydraulics

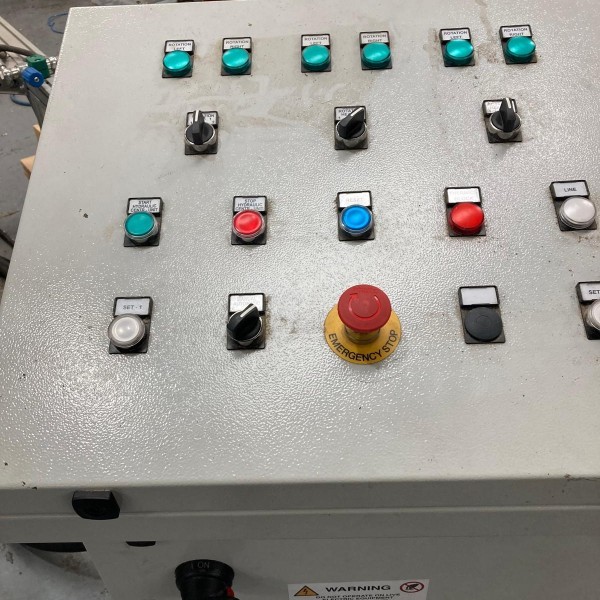

Automatic operation

3 x Mortising heads each :

Manually positioned in X axis with mechanical locks

Mechanical siko readouts for height position - Z axis

Double eccentric operation of the heads (patented design)

Each mortise head Motor HP3

RPM 2800mm

Max distance between 2 x outside mortising heads 2800mm

Min distance between 2 x outside heads 180mm - centre to centre of mortise.

Dust extraction outlets 100mm

Hydraulic pump motor 10hp

Year - 2021 CE

This item is IN STOCK. Contact our team for more details.
