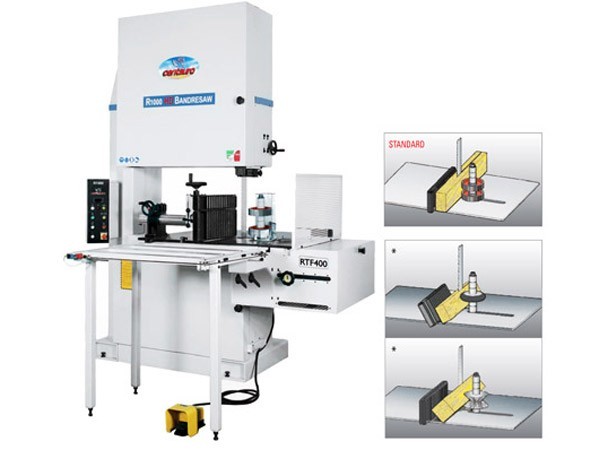

A heavy duty power band resaw with substantial frame and cutting capacity for which no foundation pit is required. The RTF 400 hydraulic feed system has variable speed and pneumatic opening and has 2 x adjustable steel feed rollers.,Other standard features include hydraulic sawblade tensioning, digital ammeter, solid cast saw pulleys, top and bottom blade guides, pneumatic braking to the saw pulley and micro switch safety devices on pulley access doors. The max. blade width is 110mm. Optionally the machine can be fitted with additional feed rollers to facilitate diagonal cuts.
A heavy duty power band resaw with substantial frame and cutting capacity for which no foundation pit is required. The RTF 400 hydraulic feed system has variable speed and pneumatic opening and has 2 x adjustable steel feed rollers.,Other standard features include hydraulic sawblade tensioning, digital ammeter, solid cast saw pulleys, top and bottom blade guides, pneumatic braking to the saw pulley and micro switch safety devices on pulley access doors. The max. blade width is 110mm. Optionally the machine can be fitted with additional feed rollers to facilitate diagonal cuts.
Dia of saw pulleys 800mm.
Max. cutting height 400mm.
Max. cutting width 780mm.
Working table 1240 x 800mm.
Max. blade width 54mm x 0.9mm.
Max. / Min. blade length 5530 / 5380mm.
Main HP motor 20.
Automatic star delta starting.
Pneumatic wheel braking.
Front infeed rollers with emergency trip wire.
Front / rear emergency push buttons.
Safety miro-switches on access doors.
Sawblade tension indicator - manual hydraulic tensioning.
Top and bottom sawguides.
Cleaning scrapers on pulleys with sawblade cleaning and cooling felt.
1 x steel sawblade ready for use.
Complete with:
RTT feeding unit - motorised feeding 'carpet' 300mm in height.
Idle feed rollers 160mm x 6 off.
Max fence to blade clearance 220mm.
Feed motor power 0.5hp
Feed speed variable 0-30 mt/min.
