Graule ZS170 Radial Arm Crosscut Saw

Quaility German built radial arm cross cut saw with 170mm maximum cutting height.

  • Generous cutting capacity
  • Compact
  • German engineering
Graule Video Placeholder

About this Product

A German built and designed crosscut saw with a facility for the easy cutting of angled or straight components. A unique feature of the machine is that when angle cutting is required the saw unit pivots about a central point thus always maintaining the same cutting length. Although compact in design the machine gives large cutting capacity. On request the machine can be fitted with a number of options including digital readouts to swivel and / or tilt (N model), hydraulic damper brake to the saw head movement and also pneumatic work piece clamps. Graule saws are ideal for cutting wood, aluminium, plastics and composite materials.

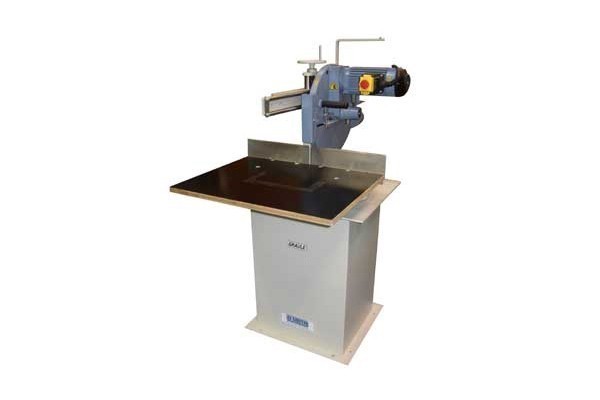

Graule ZS135 Radial Arm Crosscut Saw
Graule ZS135 Radial Arm Crosscut Saw
  • Precision ball bearing movement on hardened steel runners.
  • Sturdy cast iron construction with steel base stand.
  • Motor 3kw.
  • Spring return of sawcarriage.
  • 420mm max. sawblade dia.
  • 40mm dia spindle dia.
  • 45 - 90 - 25 degree horizontal movement (swivel)
  • Adjustable upper protection
  • 1 x TCT sawblade for wood 420 x 84 teeth x 3.5mm kerf x 40mm bore - WZ alternate bevel

Cutting capacity:

  • 450mm x 170mm deep at 90 degrees.
  • 320mm wide x 170mm deep at 45 degrees (swivel).
  • Dust extraction outlet 100mm
  • Working height of table 900mm
  • 'N' model with vertical tilting.
  • 90-45 degrees tilt to left.
  • Max capacity 450mm wide x 115mm deep.
