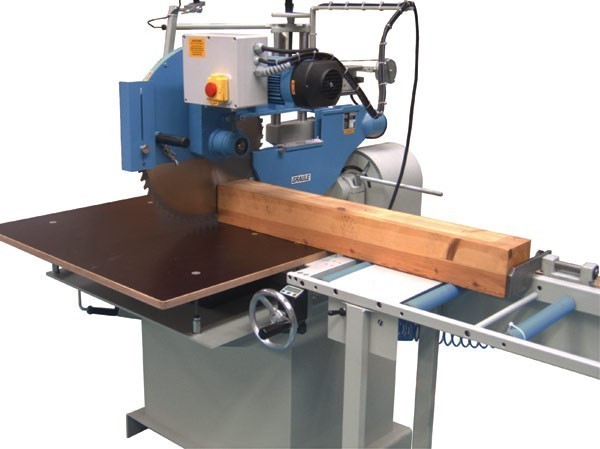

Graule ZS200 - Large Capacity Radial Arm Crosscut Saw

A large capacity heavy-duty radial arm crosscut for straight or angled cutting. Prices from £10,715 plus VAT.

About this Product

Discover precision and efficiency like never before with this German built and designed crosscut saw, ideally suited for easy and accurate cutting of compound angles for furniture and joinery components.

Featuring a 520 mm diameter saw blade and 5kw brake motor, the Graule ZS200 delivers exceptional cutting performance with a unique pivoting saw unit, ensuring consistent cutting length time after time. Despite its compact design, the ZS200 boasts an impressive cutting capacity, making it a powerhouse in any workshop.

Both optional vertical (tilting) and standard horizontal (swivel) angles can be adjusted manually with either graduated scales or with an optional digital display unit for reading the position.

The Stromabstop Automatic Positioning Stop can be fitted to this crosscutting machine, saving you time and money by eliminating errors in measuring and inaccurate cutting.

  • Large cutting capacity up to 200mm height
  • Unique pivoting saw unit
  • Easy and accurate cutting of compound angles


Technical Information

Precision ball bearing movement on hardened steel runners

Sturdy cast iron construction with steel base stand

Heavy duty 5kW motor

Spring return of saw carriage

1 x 520mm dia TCT x 4.4mm kerf x 50mm bore - 60 teeth WZ saw alternate bevel

50mm spindle diameter

+ 45 / 90 / -60 degrees horizontal movement (swivel)

30 - 90 - 60 vertical movement (tilt - optional N model)

Adjustable upper protection

Dust extraction outlet 100mm

Working height of table 900mm

Cutting Capacity

400 wide x 200mm deep at 90 degrees

280 wide x 200mm deep at 45 degrees

400 wide x 140mm deep at 45 degrees (tilt- optional N model)
