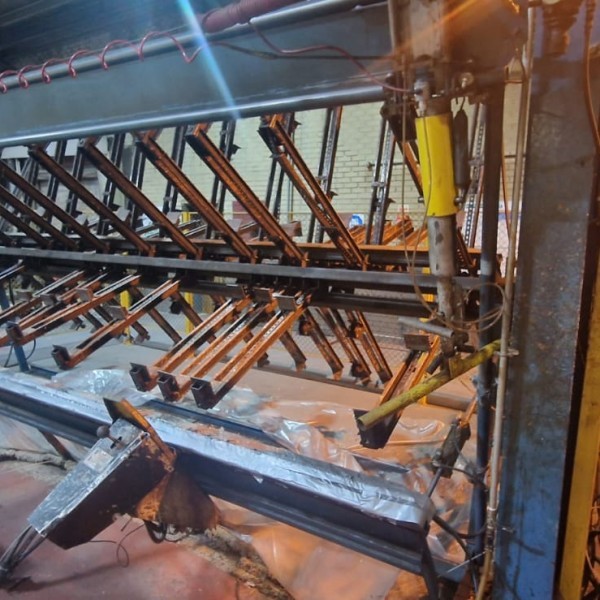

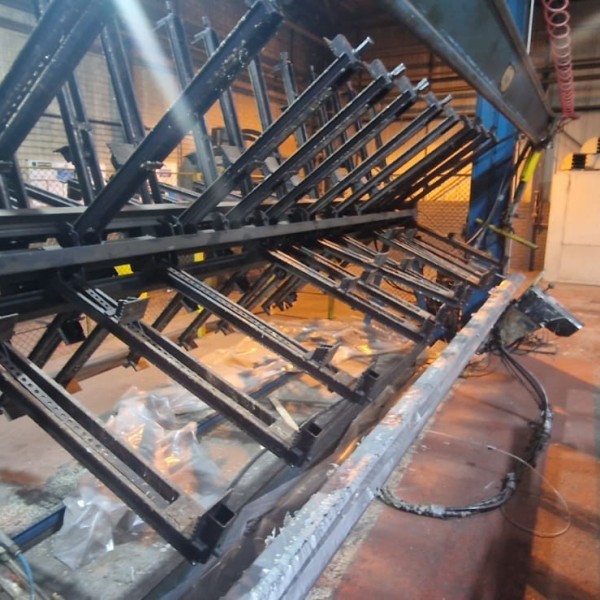

Taylor 6 Section 5m 16-5ft Semi Automatic Classic Line Hydraulic Clamp Carrier - 2006

Provisional specification

A versatile 6 section clamping machine specifically designed for solid wood edge and face laminating. The Clamp Carrier is ideal for producing a variety of components such as panels, table tops, block gluings, joinery sections, and stair parts. The patented 'equaliser' clamp arms incorporate a number of important features not found on other types of mechanical clamp that help ensure a quality glue joint is produced. As standard the machine is equipped with a hydraulic clamp tightener / loosener, pneumatic component flattener and hydraulic rotation.

Equipped with:

302 type clamp arms with 915mm (36") max opening and 95mm ( 3.5") high jaws

2 x 80S heavy duty hydraulic drives for rotation

1 x 80V semi automatic hydraulic clamp tightener. (Hydraulic pack 3 phase electrics).

1 x 80D pneumatic component flattener

Pneumatic movement in / out of front rest

CE safety perimeter guards

Year - 2006 CE
