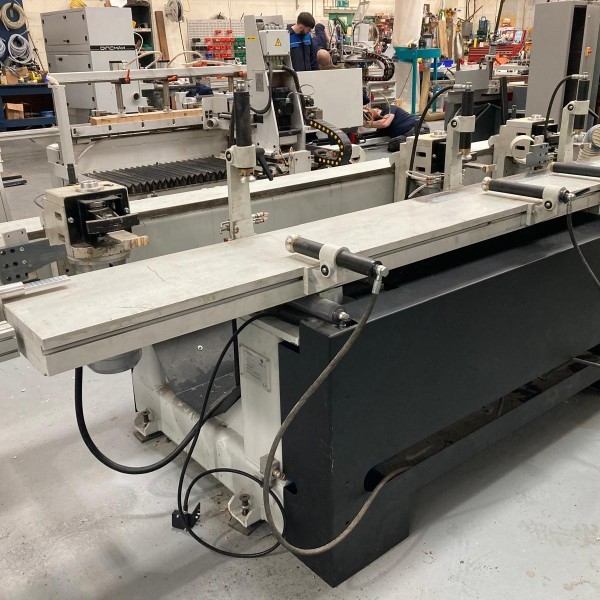

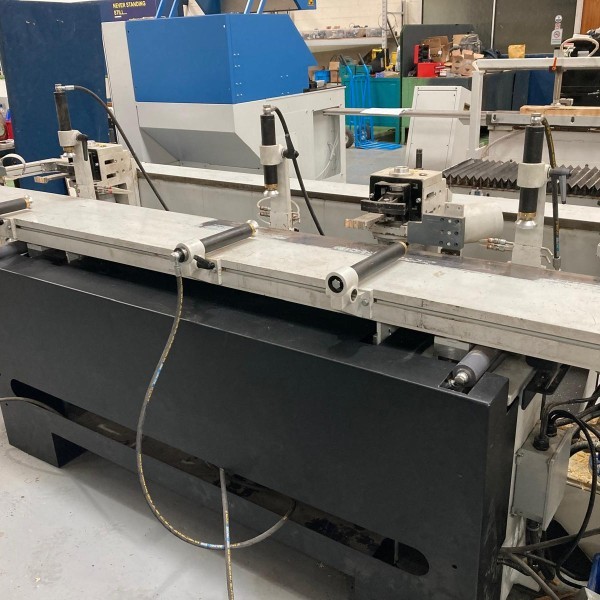

Deltawood Model RD3C-M 3 Head Swing Chisel Mortiser - 2022 CE

Automatic mortising machine with 3 heads ideal for mortising of doors, gates, gate posts, and general joinery.

Worktable dimensions 3000 x 300mm

Cast iron construction to give maximum rigidity

3 x vertical hydraulic work piece clamps

3 x horizontal hydraulic work piece clamps

Speed movement is adjustable through hydraulics

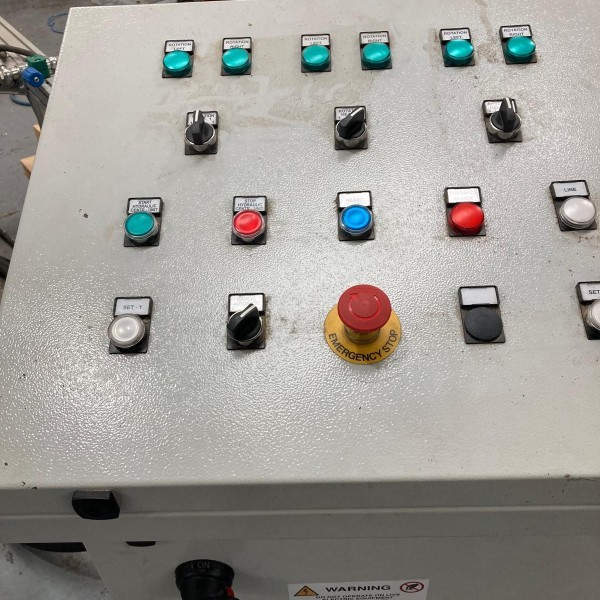

Automatic operation

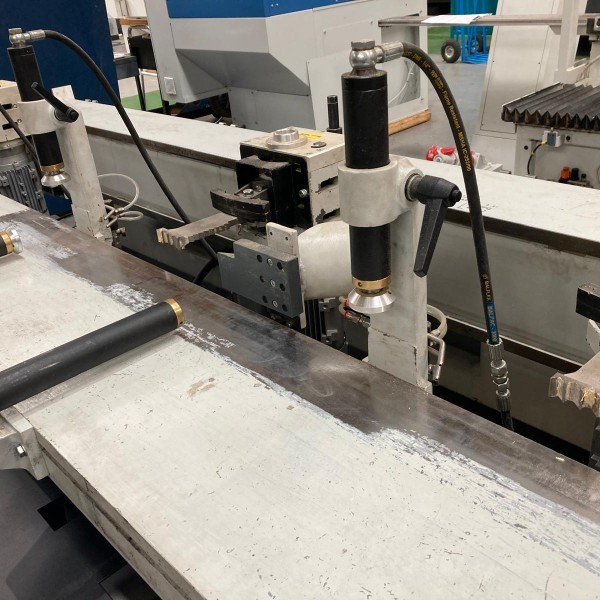

3 x Mortising heads each :

Manually positioned in X axis with mechanical locks

Mechanical siko readouts for height position - Z axis

Double eccentric operation of the heads (patented design)

Each mortise head Motor HP3

RPM 2800mm

Max distance between 2 x outside mortising heads 2800mm

Min distance between 2 x outside heads 180mm - centre to centre of mortise.

Dust extraction outlets 100mm

Hydraulic pump motor 10hp

Serial nr - 125-22

Year - 2022 CE
