INNOVATIVE WOODWORKING MACHINERY & EXPERTISE

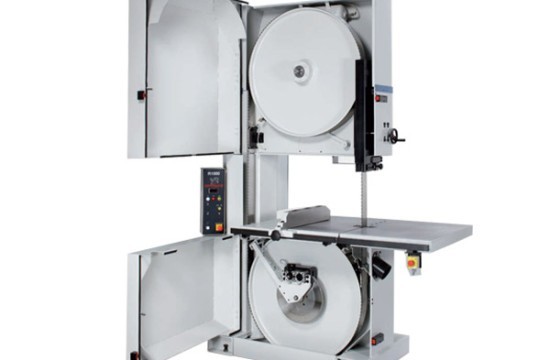

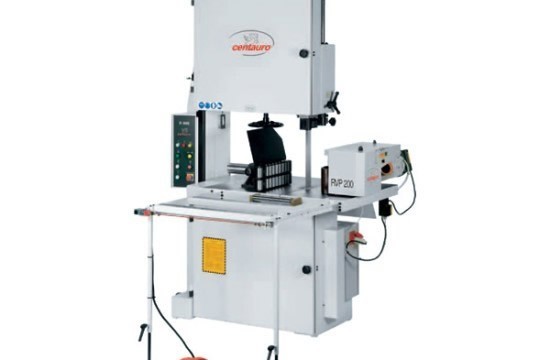

A compact, but robustly built, industrial free-standing power feed resaw. As standard, the machine is equipped with a variable speed feed unit with pneumatic opening for easy feeding. Other features include solid cast iron saw pulleys, top and bottom blade guides and CE safety and braking systems.
A compact, but robustly built, industrial free-standing power feed resaw. As standard, the machine is equipped with a variable speed feed unit with pneumatic opening for easy feeding. Other features include solid cast iron saw pulleys, top and bottom blade guides and CE safety and braking systems.
Feeding system / general capacity.
RVP 200 variable speed feed system
Steel feed rollers 200mm dia.
Variable feed speed 0 - 30 mt/min speed.
Max. feed roller to blade clearance 200mm.
Max. fence to blade clearance 200mm.
Main saw
Dia. of saw pulleys 800mm.
Max. cutting height 400mm.
Max. blade width 80 x 0.8mm.
Max. / Min blade length 5530 / 5380mm.
Height of the table from the floor 950mm.
Table size 1060 x 8000mm.
Automatic star-delta starter.
Automatic pneumatic braking of wheels.
Safety micro-switch to doors.
Front infeed support rollers with emergency protection cable.
Tilting table 15 dergrees.
Telescopic blade guard.
CHACO blade guide on the table.
Rackwork.
Dust scrapers on wheels.
Steel saw blade ready for use.
Extraction points x 2 - 100 and 120mm dia.
Working air pressure 6 to 8 bar.
