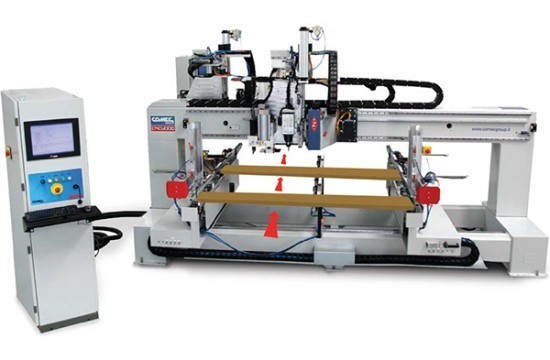

Comec Frontal CN2500 2S CA Through Feed Step By Step CNC Working Centre For Furniture Parts, Panels & Rails

STRUCTURE

• Frame of electro-welded steel sheet of heavy-duty construction.

LOADING SYSTEM

• N°1 fix left shoulder and n°1 mobile right shoulder for the loader, clamping cylinders with step-tostep advancement system.
• Right shoulder adjustable with pneumatic push button to lock/release and digital display.
• N°1 removable central support with straightener cylinders.
• Pieces’ advancement system step by step with 2 working stations, complete with locking
  cylinders on each station.
• Front Vertical automatic loader complete with adjustable storage unit fixed to the shoulders.

 1° WORKING STATION: MULTIPLE DRILLING UNIT

• N° 1 vertical drilling unit controlled by NC on X. Y and Z axes.
• Motor kW 1.7. Drills rotation speed 4.350 rpm

Point-to-point drilling head with:

• n° 11 vertical spindles placed in cross shape, (5 along Y axes and 7 along X axes) at interaxis 32 mm.
• n° 3 + 3 horizontal-lateral spindles (left-right side) at interaxis 32mm
• n° 3 + 3 horizontal spindles operator-machine side at interaxis 32 mm.
• N° 1 vertical milling/mortising unit controlled by NC on X. Y and Z axes.
• Motor kW 5.6 /12.000-18.000 rpm. Tool holder collet chuck ER32*

2° WORKING STATION: MULTIPLE DRILLING UNIT

• N° 1 vertical drilling unit controlled by NC on X. Y and Z axes.
• Motor kW 1.7. Drills rotation speed 4.350 rpm.

Point-to-point drilling head with:

• n° 11 vertical spindles placed in cross shape, (5 along Y axes and 7 along X axes) at interaxis 32 mm.
• n° 3 + 3 horizontal-lateral spindles (left-right side) at interaxis 32mm
• n° 3 + 3 horizontal spindles operator-machine side at interaxis 32 mm.

CONTROL UNIT

• Stand-alone electrical cabinet: placed separately from the machine to its side.
• Numerical control studied on purpose like control unit of the axes and of the functionalities for multiheads drilling/milling machines.
• Industrial PC for operator interface with 15” colour touch-screen.
• SSD: 120 GB - Interface: ethernet/USB/RS232.
• SOFTWARE Parametric programming assisted by 3D working models.
• Possibility of Net connection for programming and remote assistance.
• Remote console to control the machine by the operator during tests and set-up.
• Multitasking: the control unit can independently control the heads on the 3 axes in order to have
  different workings operations at the same time.

WORKED PIECES RETURN SYSTEM

Worked pieces return system to the operator on the machine side composed of:

• n°1+1 ejecting motorized belts on back side of machine, motor kW 0.37,
• n°1 lenghtwise motorized belt sincronized to the machine cycle,
• n°1+1 manually adjustable idle rollers.

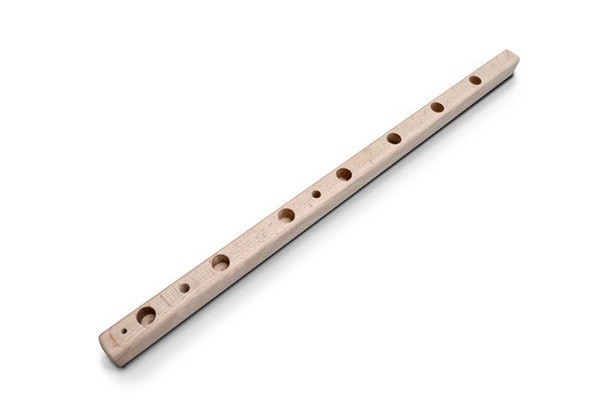

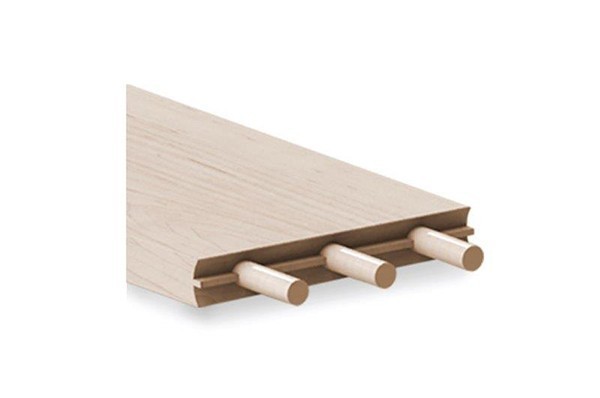

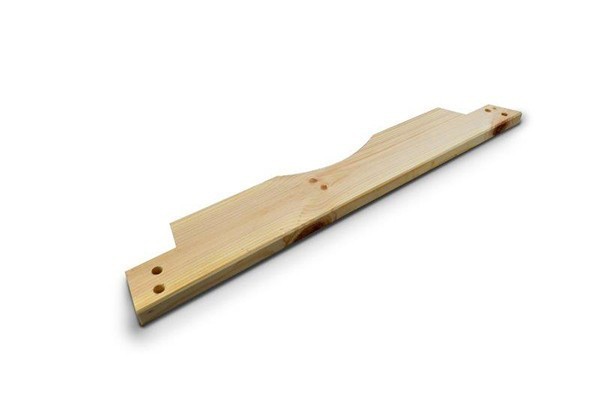

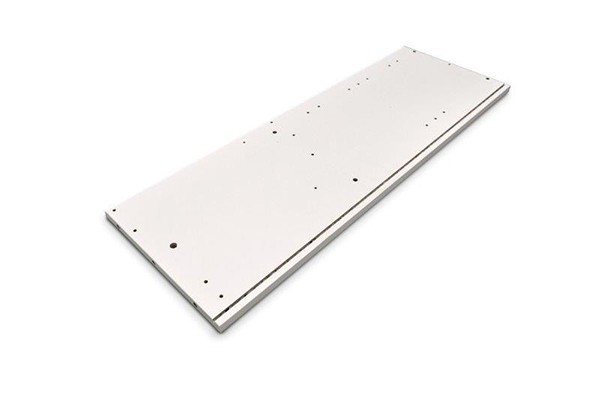

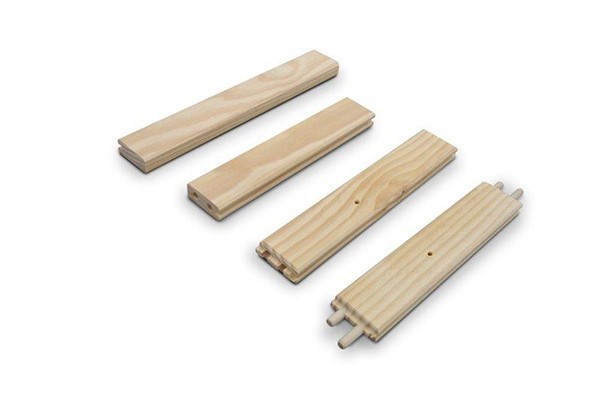

Workable dimensions:

• Length min / max 280 mm / 2500 mm.
• Width min / max 70 mm / 300 mm.
• Thickness min / max 10 mm / 50 mm.
• Protections according CE safety rules.
• Volt 415/50 Hz
