Enhance Productivity and Safety

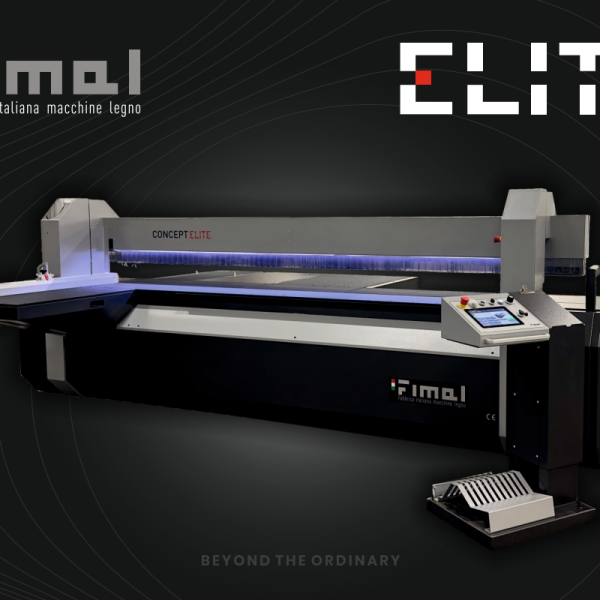

The Fimal Concept Elite Beamsaw has been designed to increase the productivity void between manual panel / wall saws and traditional beamsaws. Using a heavy duty moving saw carriage, powerful pressure beam and state of the art positioning system, the Concept Elite greatly improves accuracy, operator safety and is up to three times more productive.
Automation and Cutting Capacity
The Fimal Concept 350 Elite has an increased cutting height of up to 100mm. The processing of the cut materials can be further automated by using Fimal's cutting-edge board optimisation software which will reduce waste by nesting up to 500 parts and provide the operator with a step-by-step automated cutting sequence.
The Fimal Concept Elite 350 is ideal for joineries, furniture manufacturers and timber frame builders who need to cut large panels and boards quickly, accurately and safely.
Enhance Productivity and Safety
The Fimal Concept Elite Beamsaw has been designed to increase the productivity void between manual panel / wall saws and traditional beamsaws. Using a heavy duty moving saw carriage, powerful pressure beam and state of the art positioning system, the Concept Elite greatly improves accuracy, operator safety and is up to three times more productive.
Automation and Cutting Capacity
The Fimal Concept 350 Elite has an increased cutting height of up to 100mm. The processing of the cut materials can be further automated by using Fimal's cutting-edge board optimisation software which will reduce waste by nesting up to 500 parts and provide the operator with a step-by-step automated cutting sequence.
The Fimal Concept Elite 350 is ideal for joineries, furniture manufacturers and timber frame builders who need to cut large panels and boards quickly, accurately and safely.
Table Size - 2650mm / 3250mm / 3850mm x 770mm
Cut Length - 2600mm / 3200mm / 3800mm
Blade Diameter - 300mm / 350mm
Cutting Height at 90°- 75mm / 100mm
Cutting Height at 45°- 45mm / 67mm
Feed Speed - 0-40m/min,Blade Motor 7.5HP / 5.5KWHp
Ce norms
Standard Equipment:
New full-length pressor bar with anti-intrusion strips at the front and rear of the blade.
Minimum piece that can be pressed frontally 30mm with 90° blade.
Fixed front table measuring 1000x510mm in anodized aluminium material complete with squaring guide with telescopic opening up to 2500mm equipped with 2 stops with micrometric adjustment and reading on metric scale.
Alignment laser
LED lights under pressure beam.
Fence with digital readoiut equipped with 2 stops with indepented readouts and one stop with maximum telescopic opening of 2500mm.
Multistop back fence with 4 excludable stops capable of cuts from 1mm - 1300mm.
Height of stops 37mm
Distance between stop 1 and 4 is 2000mm.
Sliding table 1000x500mm in phenolic material that can be positioned both frontally and rearward (except for the 2600 version).
Photocell for reading the length of the panel and automatic adjustment of the blade carriage stroke.
450mm diamater blade.
Electronic adjustment of the scoring depth.
Control Panel on a mobile cart which includes:
10" Touchscreen Win10, capacitive screen, colour graphic, with USB port to transfer cutting program
It allows a complete graphical display of the cutting pattern with evidence of the cut in execution
Programmer with manual, semi-automatic and automatic mode.
250 storable programs for the management of the rear guide, the blade projection and grooving depth
Emergency button + Direct blade motor start button.
Three-position selector for cutting with scoring, cutting without scoring and scoring only.
Axis positioning button + Work cycle start button.
Potentiometer for the adjustment of the blade carriage speed (0-40 m/min).
