Graule QNF - W/N Trencher / Notcher

A dedicated machine for producing a straight or angled trench / notch.

  • Straight or angled trenching
  • Compact design
  • Pneumatic clamping

About this Product

A dedicated machine for producing a straight or angled trench / notch in a variety of timber products used in general joinery, garden furniture, shed, roof truss and timber frame manufacturing. Also can be used for door framing, notching of roof bearers and for log cabin manufacture.As standard the machine is fitted with horizontal pneumatic workpiece clamps and also a hydrocheck damper control to give a smooth stroke action to the cutterhead movement.

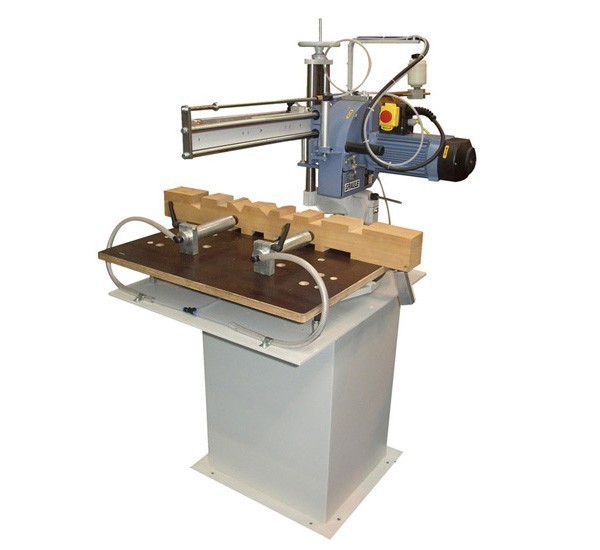

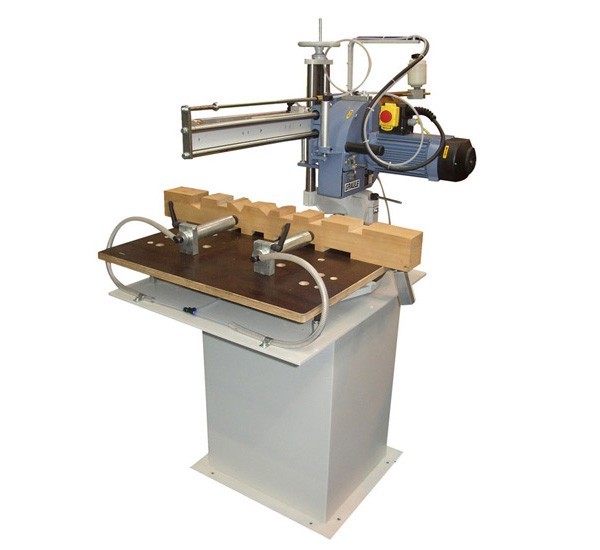

Graule QNF WN Trencher Notcher
Graule QNF WN Trencher Notcher
Graule Qnf Wn Trencher Notcher 2
Graule Qnf Wn Trencher Notcher 3

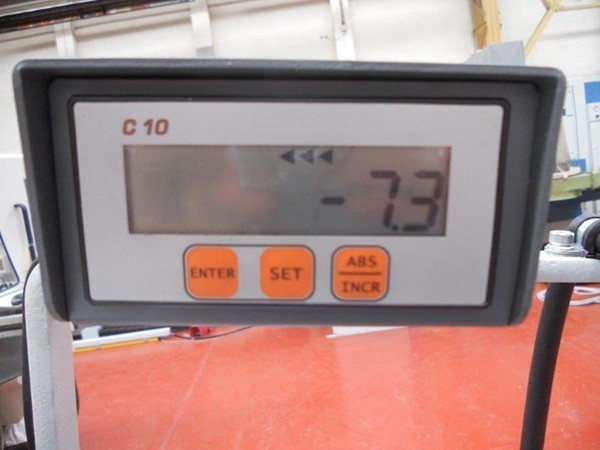

Graule Qnf Wn Trencher Notcher 4
Graule Qnf Wn Trencher Notcher 5
  • Precision ball bearing movement on hardened steel runners.
  • Sturdy cast iron construction with steel base stand.
  • 3kw motor.
  • Max tool dia 250mm
  • Bore of tool 40mm.
  • Handwheel rise and fall of cutter motor arm.
  • Max depth of trench / notch 60mm.
  • Width of trench / notch 60mm - in one pass.
  • Max. length of travel of tool 250mm.

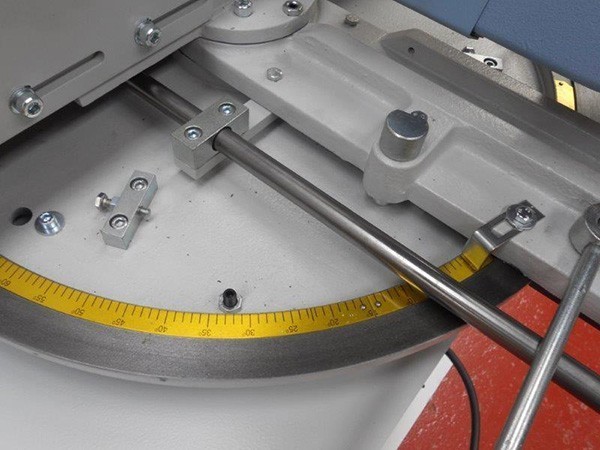

  • Horizontal angle setting 45 to 90 to 45 degrees

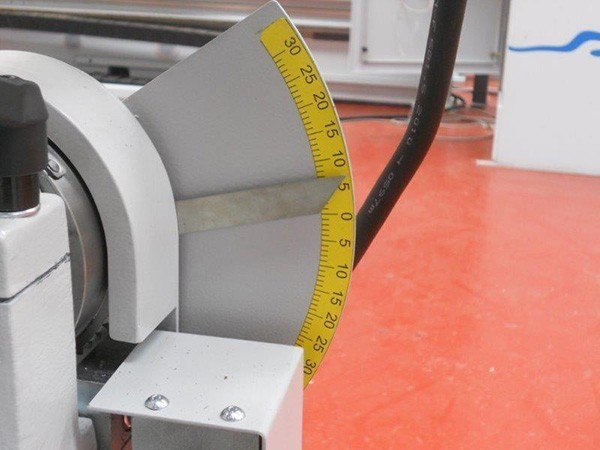

  • Vertical angle setting 90 to 45 degrees - left.
  • 2 x horizontal workpiece clamps.

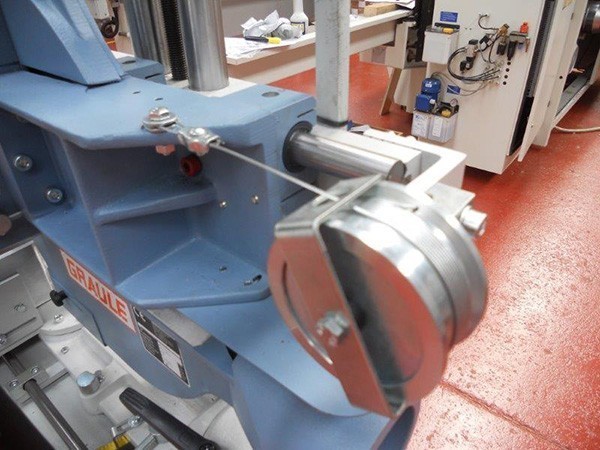

  • Hydrocheck damper to movement of cross cut arm.
  • Dust extraction outlet 100mm.
