Intorex CKI CNC Lathe

A CNC controlled wood turning lathe with semi automatic loading / centering system.

  • No sample or template
  • Quick set up time
  • High quality turned parts

About this Product

A heavy duty, quick set up, CNC lathe with control of 3 axis plus the headstock. The machine is equipped with a pneumatic semi automatic loading system and has two independent copiers / cutting gouges controlled through the CNC plus a hydraulic unit for 'rounding'. Also fitted as standard 2 rear hydraulic dowel units. The user friendly programming is via the pre-installed Windows based Intorex 'Intoredit' software which is pre-loaded on the machine. Programming can either take place on the machine controller or on a remote PC / laptop with transfer of the programs via USB key. The CKI produces turned components with excellent quality and definition. It is ideal for producing one off bespoke turnings, short or long production runs. On request a dedicated CNC milling head can be specified for fluting, twisting or shaping work. This unit is also programmable from the software. Optionally the machine can be specified with an additional CNC controlled axis meaning either a milling head, router head, or sanding head can be mounted in addition to the standard 2 x CNC cutting gouges.

Intorex Cki Cnc Lathe
Intorex Cki Cnc Lathe

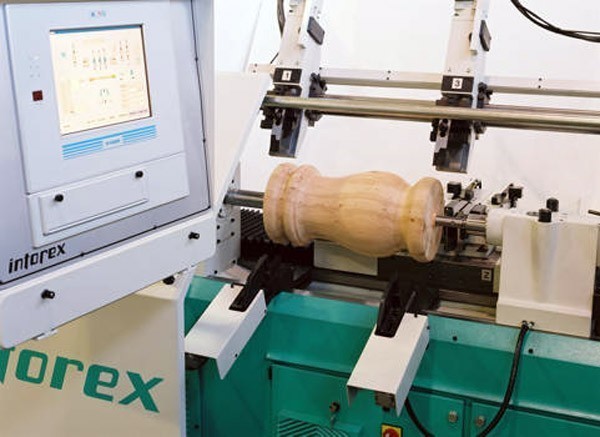

Intorex Cki Cnc Lathe 2

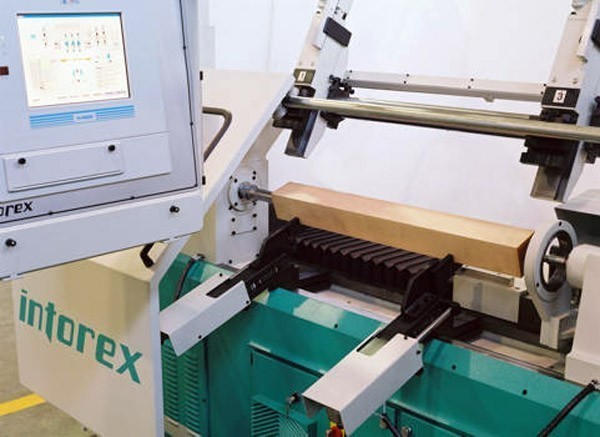

Intorex Cki Cnc Lathe 3

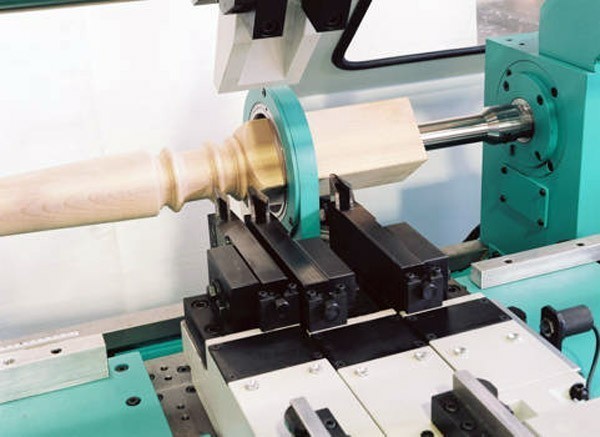

Intorex Cki Cnc Lathe 4
Intorex Cki Cnc Lathe 5

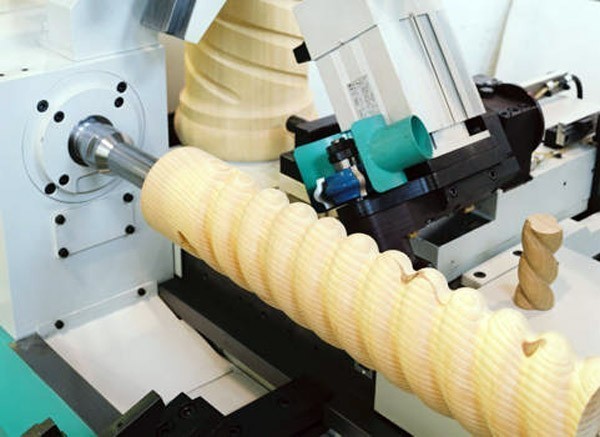

Intorex Cki Cnc Lathe 6
Specification
  • Digital CNC control
  • 4 axis with ethercat interface.
  • Fanless industrial PC with 15" colour resistive touch screen.
  • Memory RAM 4gb.
  • HDD 60 gb.
  • SSD (solid state drive).
  • 1 x USB port - front
  • 4 x USB ports rear
  • Network (LAN)
  • Ethernet x 1
  • RS232 x 1
  • Windows 7 embeded
  • PC / tooch screen mounted in swing arm control panel.
  • Graphic editor IntorEDIT for designing / creating of profiles and the programming of the axis.
  • Copier axis A of run 140mm and CNC controlled.
  • Copier axis X of run 140mm and CNC controlled.
  • Semi automatic pneumatic loading and centering of the blank to be turned.
  • 12.8kw main spindle motor with inverter for programmable and variable spindle speeds 0-5000 rpm. (Motor upgrade to 15kw available on request).
  • Automatic hydraulic form tools for dowelling.
  • Pneumatic centres.
  • Round steady dia 90 with 2 rings.
  • Round steady dia 140 with 1 ring insert.
  • M36 left threaded headstock dia 39mm with live ctre.
  • Tailstock - dia 12mm.
  • Tailstock - dia 18mm.
  • Copy tool HSS - 3.5mm radius.
  • Copy tool HSS - 0.6mm radius.
  • Dowel knives - 34mm wide.
  • Set of maintenance tools.
