Intorex CNB CNC Lathe

Compact CNC controlled wood tuning lathe for furniture or stair parts.

  • No sample or template
  • Quick set up time
  • High quality turned parts

About this Product

A substantially built, industrial woodturning lathe with CNC control of 2 axis. The machine is equipped with 2 separate cnc controlled cutting gouges,one is for roughing and one for finishing. The headstock motor speed is variable through an inverter and controlled through the PC. In addition the lathe is equipped with 2 x hydraulic dowel cutting tools and a pneumatic centering device to assist in loading of the blanks to be turned. Thanks to the CNC control no sample or template is needed, thus making the machine quick and simple to set up. In addition it is possible to achieve excellent quality and definition of the turned components. The machine also has the dedicated user friendly IntorEDIT design software for the creation of the profiles to be turned.

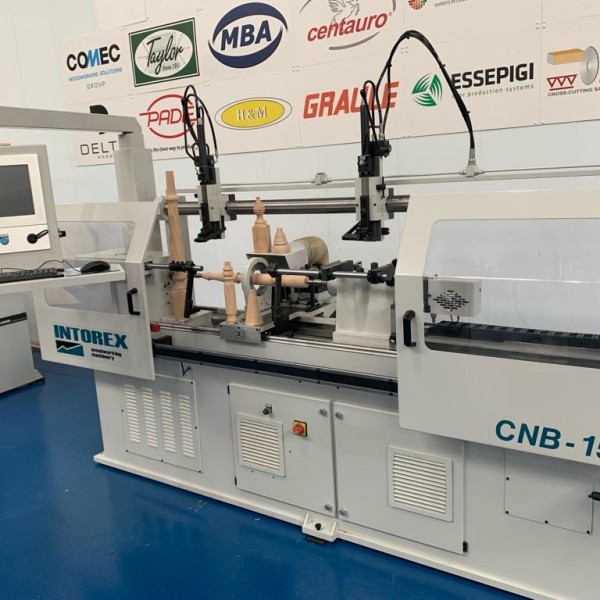

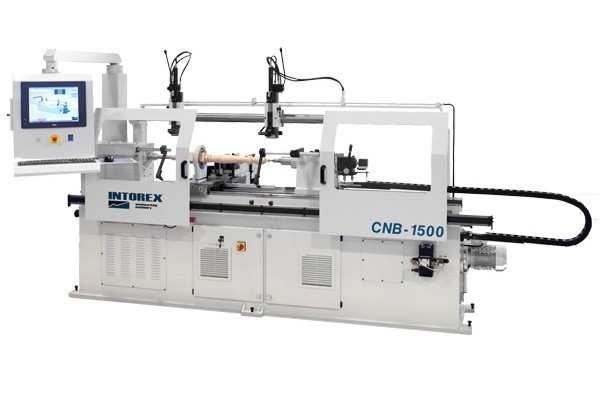

Intorex Cnb 1500 Cnc Woodturning Lathe
Intorex Cnb 1500 Cnc Woodturning Lathe

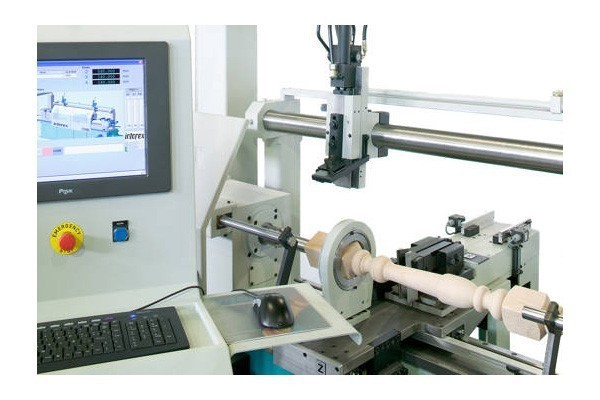

Intorex Cnb 1500 Cnc Woodturning Lathe 2

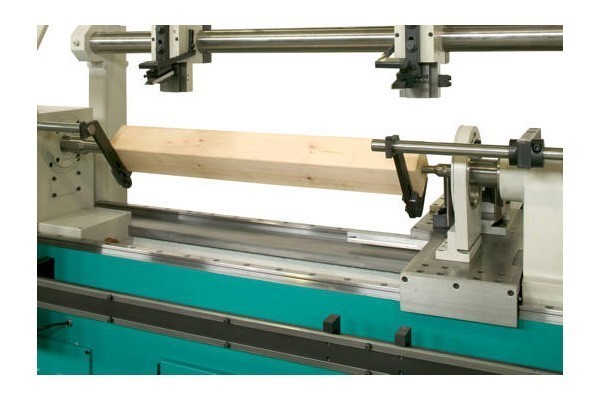

Intorex Cnb 1500 Cnc Woodturning Lathe 3

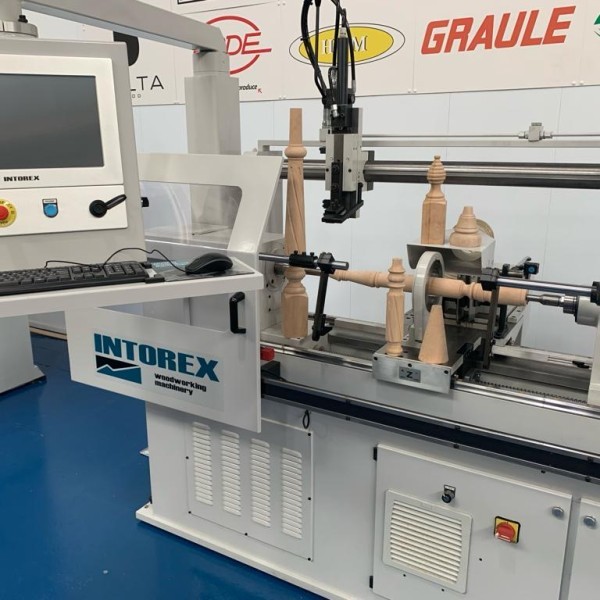

Intorex Cnb 1500 Cnc Woodturning Lathe 4
Specification
  • Max turning length 1500mm
  • Max turning dia 300mm (210mm sq).

Digital CNC control

  • 4 axis with ethercat interface.
  • Fanless industrial PC with 15" colour resistive touch screen.
  • Memory RAM 4gb. HDD 60 gb. SSD (solid state drive).
  • 1 x USB port - front. 4 x USB ports rear, network (LAN), Ethernet x 1, RS232 x 1.
  • Windows 7 embedded.
  • PC / touch screen mounted in swing arm control panel
  • 2 x cutting gouges 1 x roughing 3.5mm radius / 1 x finishing 0.6mm radius.
  • Copier axis A of run 140mm and controlled by CNC.
  • Copier axis X of run 140mm and controlled by CNC. (Optional)
  • 10hp headstock motor with inverter for variable spindle speeds 0 - 5000 rpm.
  • Pneumatic loading ctre for section size blanks up to 90mm sq.

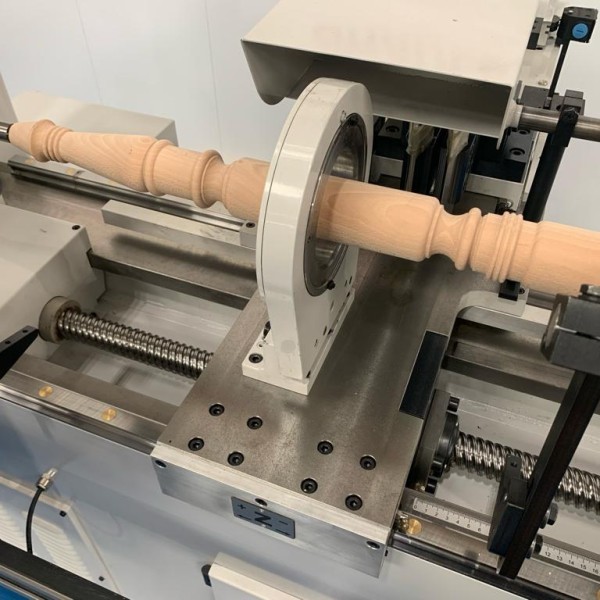

  • 2 x steady rests - max 90mm dia with 2 rings / max 140mm dia with 1 ring. (Please specify section sizes steady rings are to be spec'd for).
  • 2 x hydraulic dowel knife units each with tool 30mm wide.
  • Headstock drive ctres 1 x 24mm dia / 1 x 39mm dia.
  • Hydraulic tailstock.
  • Swing arm control panel.
  • 400/3/50.
