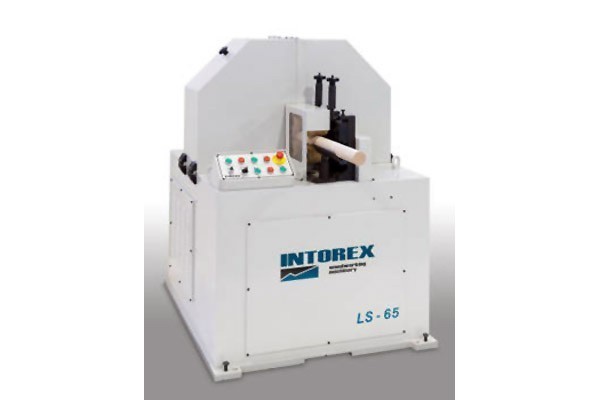

Intorex LS65 Sanding Machine

Through Feed Sanding Machine For Round Timber Bars

About this Product

A dedicated through feed sanding machine for the sanding of round, or slightly conical or ovel wood bars ranging from 15 to 65mm.

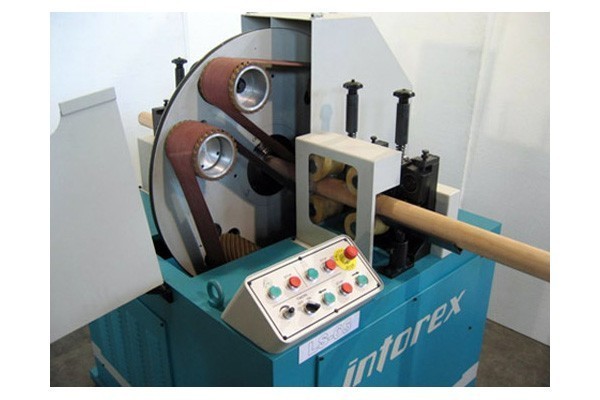

This machine is equipped with 2 x sanding belts which are in rotation over the piece to be sanded.

The workpiece length is without limit and feeding is by 2 x drive rollers variable in speed.


  • Simple To Use
  • Compact Design
  • Adjustable Feed Speeds

Specification

Specification
• Rotary group with 2 x sanding belts
• 1 x set of infeed driven feed rollers
• 1 x set of outfeed driven feed rollers
• Bar dia 15 to 65nmm
• Electronic system to stop the drum rotation for intermittent feeding of the pieces

Services
• Total installed power 10.5kw
• Air supply 6 bar
• Ethernet port for remote access included

Overall dimensions / weights
• 3600 x 3100 x 215mm high
• 3,500 kg

Options
